8/8/2014 VECTOR COMPACT
file:///C:/Users/E139344/Documents/Miscellaneous/Manuals,%20etc/Rinker/VECTOR%20COMPACT.htm 9/37
2. Slip the solid washer and the liquid-seal washer onto the PVC fitting in that order.
3. Connect the fitting through the exposed hole in the base pan with the locking nut.
4. Securely tighten with two (2) wrenches to provide a proper seal.
5. Attach a 5/8² I.D. reinforced hose to the hose barb and secure with double/reversed stainless steel hose clamps.
6. Install the condensate drain hose downhill from the unit and aft to a sump.
7. Two drain fittings may be used and the hoses teed together provided there is a minimum 2² drop from the bottom
of the base pan to the tee connection.
Note: Do not terminate condensate drain line within four (4) feet of any outlet of engine exhaust systems, nor in a
compartment housing an engine, unless the drain is connected properly to a sealed condensate or shower sump pump.

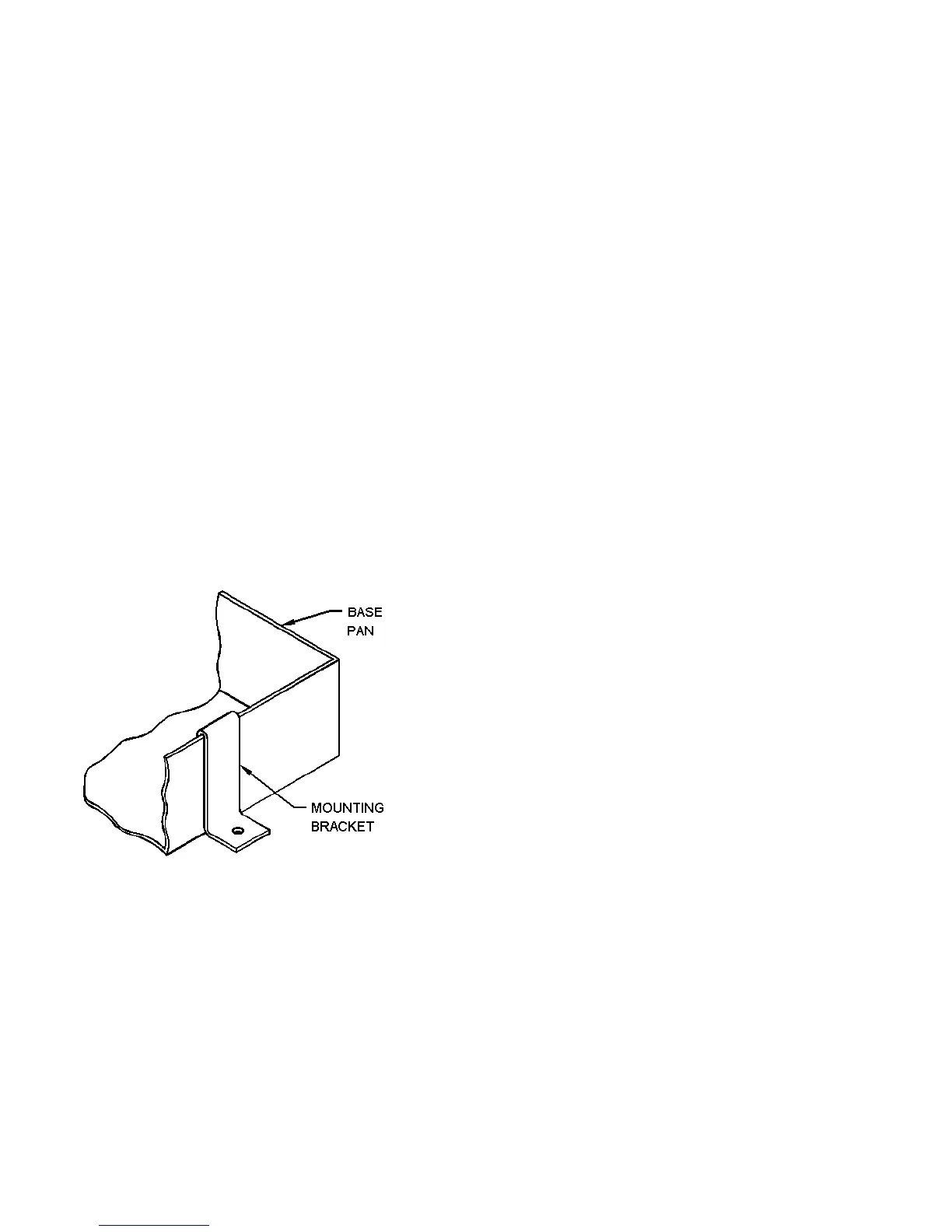

MOUNTING BRACKETS
The VECTOR COMPACT unit is supplied with a stainless steel base pan, which also serves as a condensate pan. Mounting
clip brackets (4) are provided to secure the base pan onto a flat, horizontal surface.
