Owner/Operator Manual

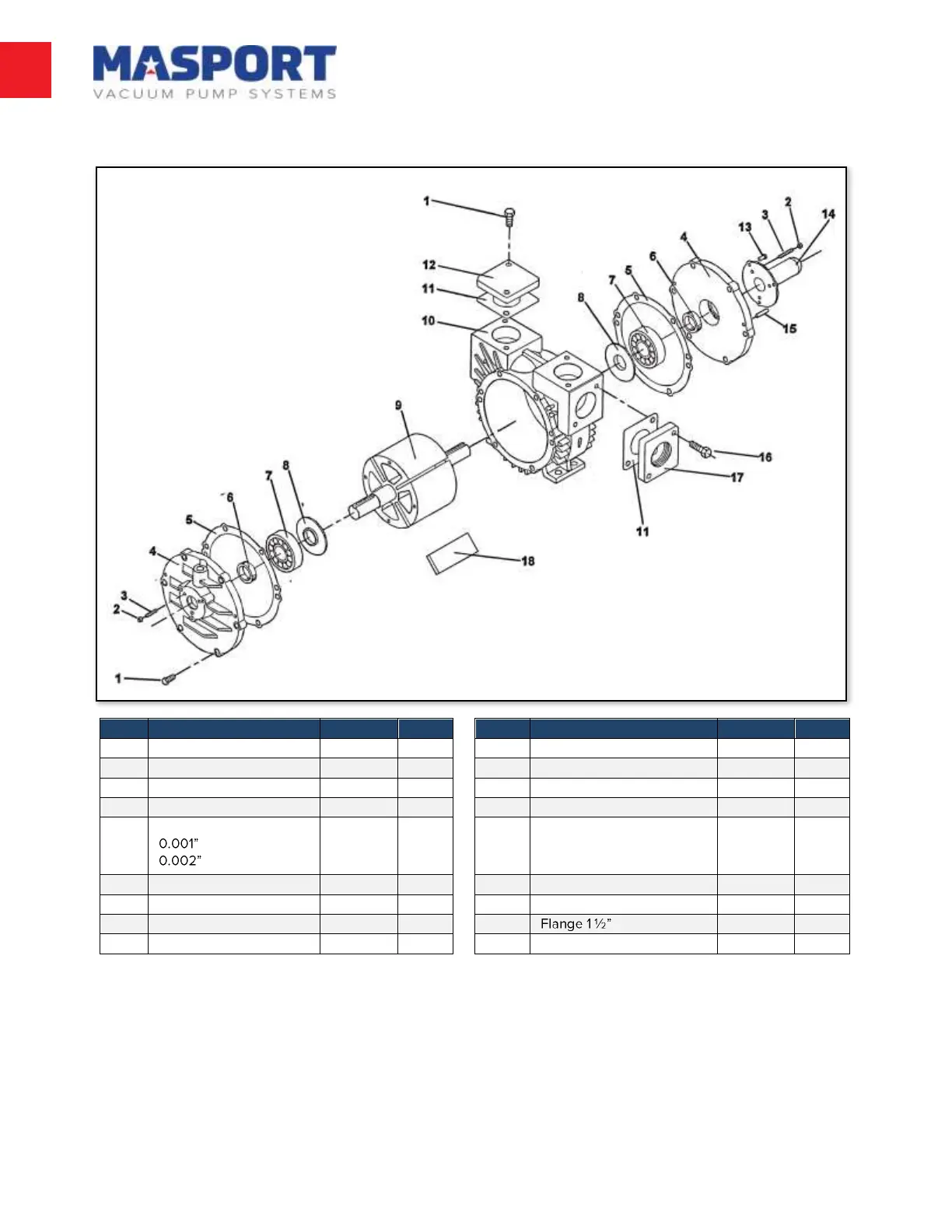

H3F:
* Quantity may vary pump to pump
Item
Description
Part No.
Qty
Item
Description
Part No.
Qty
1
Screw M10 x 25
501569
16
10
Cylinder
975551
1
2
Nut M5
220221
6
11
Flange Gasket
36202
4
3
Grub Screw M5 x 25
503225
6
12
Flange Blank
975487
2
4
End Cover
968242
2
13
Screw M5 x 16
503227
3
5
Shim Gasket
575006
575007
*
*
14
Shaft Guard
975264
1
6
Seal
501578
2
15
Dowel Pin
575111
4
7
Bearing
501577
2
16
Screw M10 x 35
501878
4
8
Spacer
575131
2
17
968204
2
9
Rotor Assembly
968244
1
18
Vane Pack
968236
4
