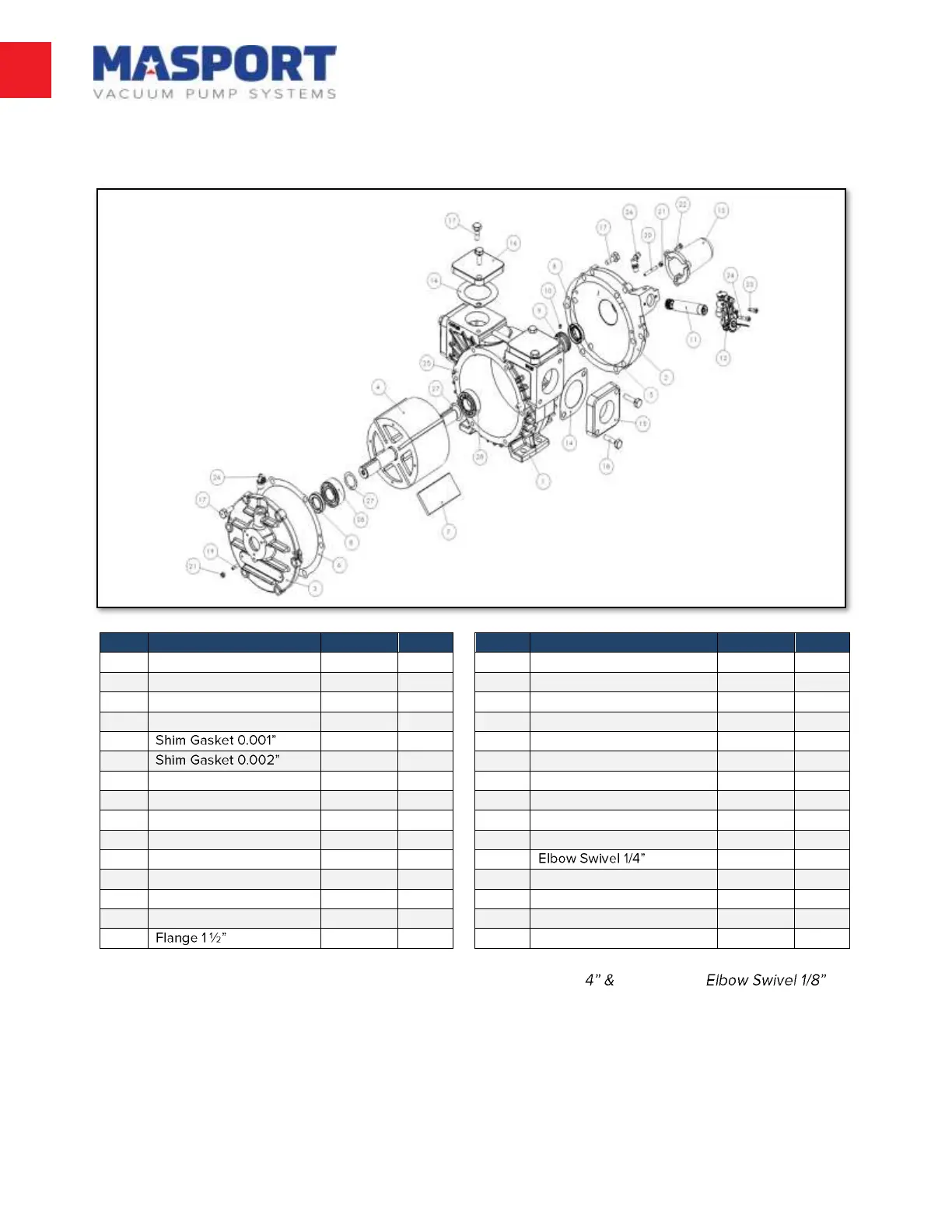

Masport H Series User Manual

37
Owner/Operator Manual
HXL2F – Serial Number Q06128 and Greater :
Bearing and Oil Pump End Cover Changed at Q06128
* Quantity may vary pump to pump
** Pre-Serial Number P07044: Item 26 was 1 x 568086 - Elbow Swivel 1/ 1 x 568085 -
Item
Description
Part No.
Qty
Item
Description
Part No.
Qty
1
Cylinder
975541
1
16
Flange Blank
975476
2
2
End Cover Oil Pump
969201
1
17
Screw M10 x 25
501569
16
3
End Cover
968242
1
18
Screw M10 x 35
501878
4
4
Rotor Assembly
968126
1
19
Grub Screw M5 x 20
503225
3
5
575005
1
20
Grub Screw M5 x 40
503226
3
6
575006
1
21
Nut M5
220221
6
7
Vane Pack
975536
1
22
Screw M5 x 16
503227
3
8
Seal
501578
2
23
Screw M5 x 16
504262
1
9
Gear Worm
568071
1
24
Screw M5 x 25
504261
1
10
Grub Screw M5 x 6
504264
1
25
Dowel Pin
575111
4
11
Gear Shaft Assembly
968045
1
26
**
568086
2
12
Oil Pump
575366
1
27
Spacer
575131
2
13
Shaft Guard
675264
1
28
Bearing
501577
2
14
Flange Gasket
36202
4
29
Oil Line (Not Shown)
600293
*
15
968159
2
