Masport H Series User Manual

38
Owner/Operator Manual

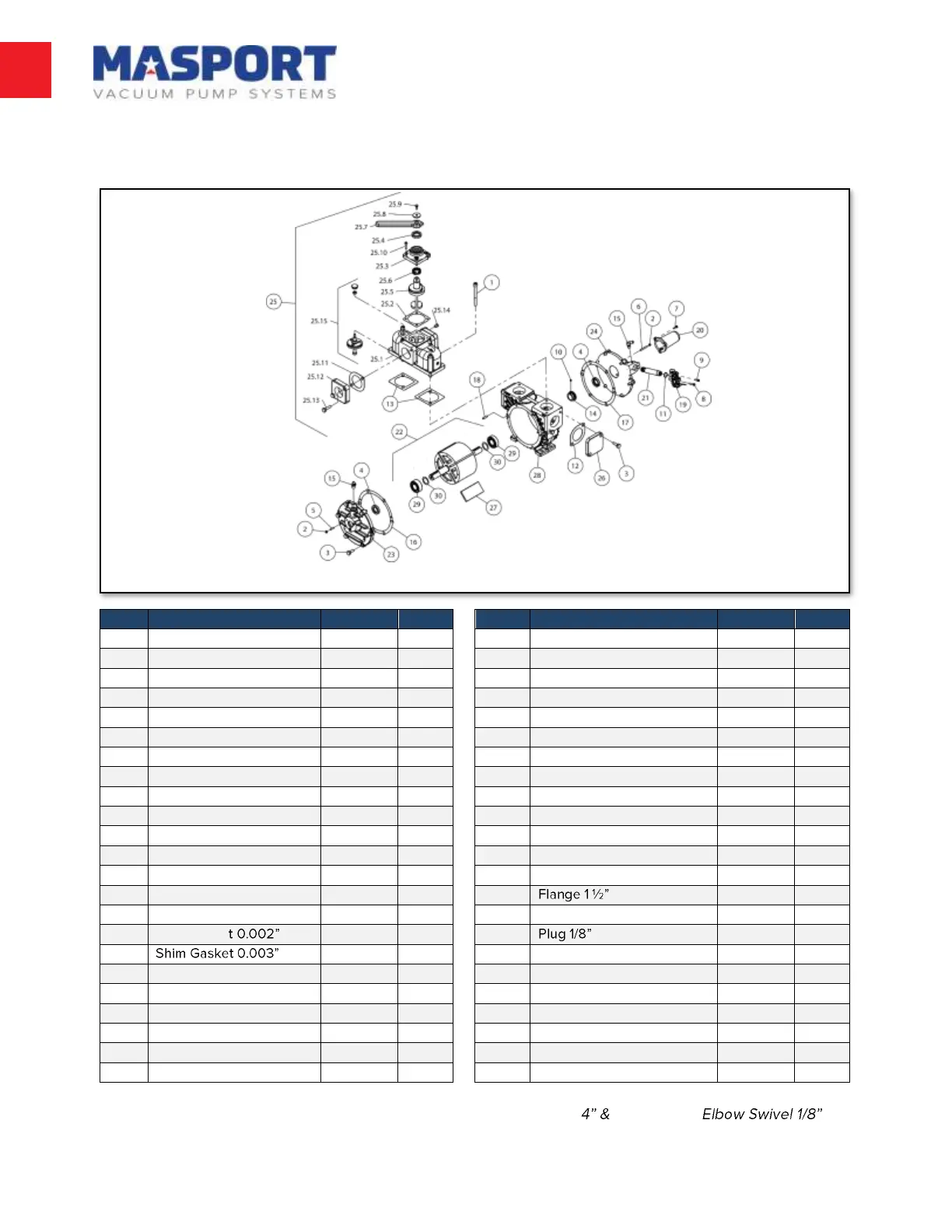

HXL2V – Serial Number Q06128 and Greater :
Bearing and Oil Pump End Cover Changed at Q06128
* Quantity may vary pump to pump
** Pre-Serial Number P07044: Item 15 was 1 x 568086 - Elbow Swivel 1/ 1 x 568085 -
Item
Description
Part No.
Qty
Item
Description
Part No.
Qty
1
Screw M10 x 100
568249
4
24
End Cover Oil Pump
969201
1
2
Nut M5
220221
6
25
Valve Assembly
968350
1
3
Screw M10 x 25
501569
16
25.1
Valve Body
968349
1
4
Seal
501578
2
25.2
Valve Cap Gasket
568063
1
5
Screw M5 x 20
503225
3
25.3
Valve Cap
968346
1
6
Screw M5 x 40
503226
3
25.4
Seal
501578
1
7
Screw M5 x 16
503227
3
25.5
Valve Spool
968341
1
8
Screw M5 x 25
504261
1
25.6
Spool Spring
568347
1
9
Screw M5 x 16
504262
1
25.7
Valve Handle
968055
1
10
Grub Screw M5 x 6
504264
1
25.8
Indicator Washer
569724
1
11
O-Ring
504265
1
25.9
Screw M8 x 20
501848
1
12
Flange Gasket
36202
2
25.10
Screw M6 x 25
11049
4
13
Valve Gasket
568066
2
25.11
Flange Gasket
568009
2
14
Gear Worm
568071
1
25.12
968159
2
15
Elbow Swivel 1/4" **
568086
2
25.13
Screw M10 x 35
501878
4
16
Shim Gaske
575006
*
25.14
143901
1
17
575007
*
25.15
Poppet Assembly
968351
1
18
Dowel Pin
575111
4
26
Flange Blank
975476
2
19
Oil Pump
575366
1
27
Vane Pack
975536
1
20
Shaft Guard
675264
1
28
Cylinder
975536
1
21
Drive Shaft Assembly
968045
1
29
Bearing
501577
2
22
Rotor Assembly
968126
1
30
Spacer
575131
2
23
End Cover
968242
1
31
Oil Line (Not Shown)
600293
1
