Mass W200 - Amplifier Panel and Controls; Input and Trigger Connections; Crossover and Volume Adjustment

monitoraudio.com 3

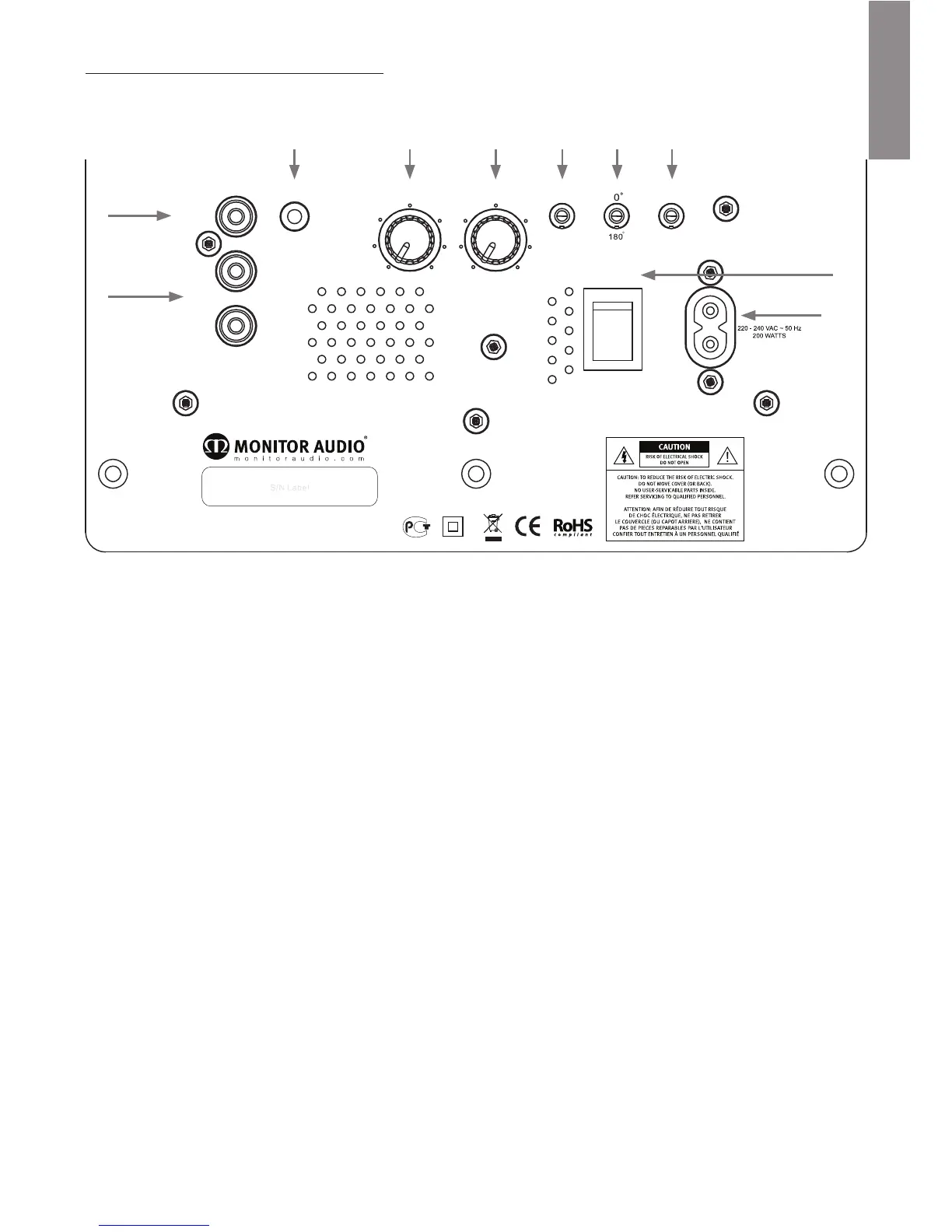

Amp Panel & Controls
a MONITOR AUDIO
Product: MASS W200
Artwork title: “SUB200 AMP PANEL ARTWORK V1R7”
Date: 01 JUNE 2012
UK/EURO VERSION
Notes:
1. ICONS/TEXT TO BE SILKSCREENED
PANTONE REFERENCE COOL GREY 3M
2. IMAGE FOR REFERENCE PURPOSES ONLY.
L
R
LFE
12V DC
ON
AU TO
ON
OFF
MASS
W200
50 Hz 120 Hz MIN MAX
.
.
.
.
.
.
.
.
.
.
.
.
INPUT
POWER
UK/EURO
DESIGNED IN UK, MADE IN CHINA
TRIGGER
FREQUENCY
BASS PHASE MODE
VOLUME
IMPACT
MUSIC
MOVIE
1
2
4 5 6
7 8
9
10
3
1. RCA Stereo Inputs (Left & Right)
This is the method of signal input when using a stereo amplifier system, connection can
be provided by a pair of high-quality signal cables from the pre-out section of an amplifier.
The crossover frequency will need to be set if using this method of connection. If using the
MASS 10’s set the crossover dial to approximately 80Hz. This may vary depending on room
and tastes. Note: - cable lengths should not exceed 10 metres to avoid interference from
other electrical appliances.
2. LFE Input (RCA Type)
This input is to be used when connecting the MASS W200 to an AV amplifier/ receiver. When using
the LFE input, the crossover frequency dial is not used. This is due to the crossover function
being controlled by the AV amplifier/ processor to which it is connected. If using the MASS
10’s set the crossover dial to approximately 80Hz.
3. 12 Volt Trigger Input ~ Centre Pin = +12Vdc
For external power control from AV amplifier/ receiver to the MASS W200. Monitor Audio
recommend using this function and a lead is supplied. A 12 volt signal is supplied by the AV
amp/receiver and tells the MASS W200 to turn on from standby mode. This allows a more
accurately controlled auto on/off function, and is far more energy efficient. When using the
12v trigger, the Mode Switch (8) can be in any position, for it to function correctly.
4. Crossover Frequency Control
The crossover frequency control only operates when using the RCA stereo input (1). This
control feature is used to set the upper frequency limit (low pass) of the MASS W200. The
crossover control should be set in accordance with the size or bass output of the main/
satellite speakers. When using the MASS 10’s, set this to around 80Hz. Experimentation is
advisable.
