MASSEY FERGUSON 430 - Draft Control - Outer Lever - Yellow Quadrant; Position Control - Inner Lever - Red Sector

Operation
46
410/420/430 - 001 8903 U1
UZEL
Draft control - outer lever - Yellow quadrant
Type of work:
Plowing, subsoiling, heavy cultivation, soil engaging
implements
Lever positions:
Position Control (2,Fig. 60), fully up in TRANSPORT
position.
Response Control, in the SLOW position.
Operate the lift hydraulics using the Draft Control
Lever (1).
Entering work:
Move the Draft Control Lever to the DOWN position
to lower the implement into work. The implement will
start to penetrate as the tractor moves forward. The
further the lever is moved to the DOWN position, the
deeper the implement will tend to penetrate.
In work:
When the desired working depth has been obtained,
move the Adjustable Stop (3) back to the lever and
lock into position with the hand knob. The Draft
Control Lever can be moved slightly either side of
the stop to adjust for varying soil conditions. Set the
Response Control (Fig. 59) towards SLOW (-) but in
a position to allow adequately fast entry into work. If
the implement moves up and down erratically turn
the Response Control towards SLOW.
Leaving work:
On reaching the headland, raise the implement by
moving the Draft Control Lever back to the UP
position. Re-enter work by moving the Draft Control
Lever forward to the Adjustable Stop.
Position control - inner lever - Red sector
Type of work:
Operation which requires the implement to be kept
at a constant height above the ground, e.g., mowers,
spinner broadcasters, levelling blades and other
implements producing little or no draft.
Lever positions:
Draft Control (1,Fig. 61), fully UP position. Response
Control, (Fig. 59) in the SLOW position. Operate the
hydraulics by using the Position Control Lever (2).
Starting work:
Move the Position Control Lever (2) down until the
required implement height above the ground is
obtained. Set the Adjustable Stop (3) in line with the
Position Control Lever. Set the Response Control
towards SLOW but in a position to allow adequately
fast entry into work.

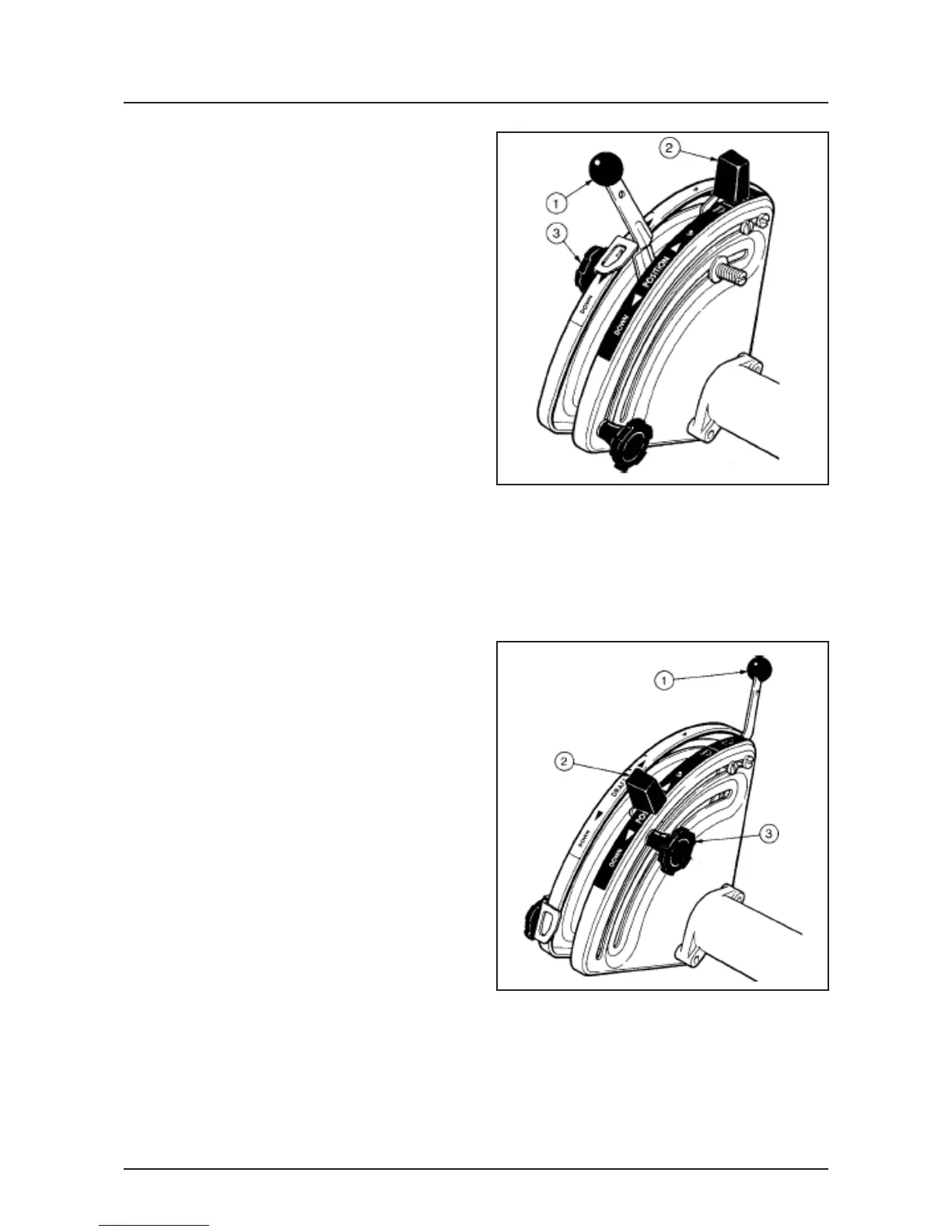

Fig. 60
Fig. 61
In work:
No further adjustment is necessary.
Leaving work:
Move the Position Control Lever (2) up to the
TRANSPORT position, if required. Re-enter work by
moving the Position Control Lever forward to the
Adjustable Stop.
