Maintenance and Adjustment
410/420/430 - 001 8903 U1
UZEL
81

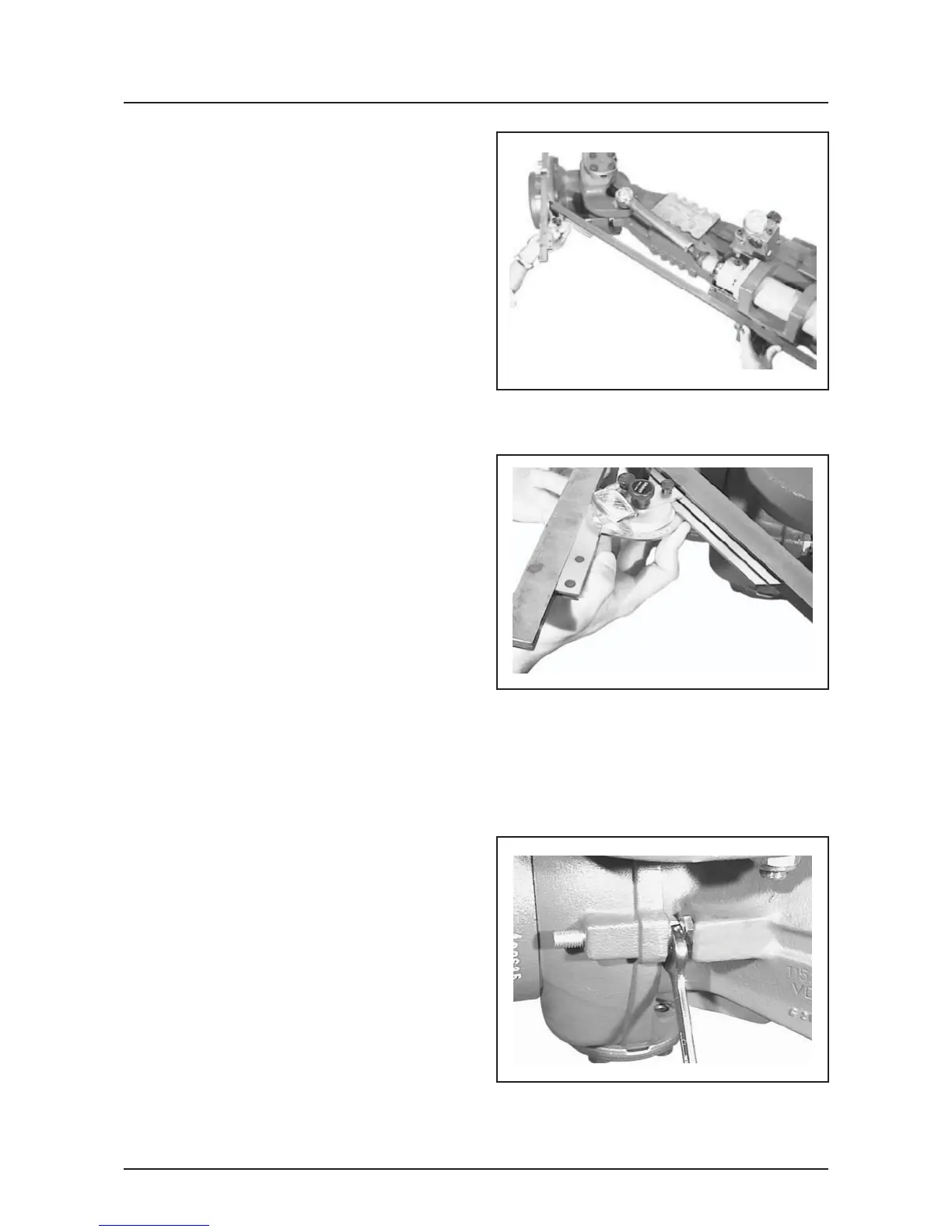

Steering angle adjustment
Use the same bars assembled for the toe-in
adjustment and a long bar perfectly leaned over the
machined part of the central body (pinion side), so
that the two bars form an acute angle at the maximum
steering. (Fig. 121).
Adjust a protractor to the requested angle (55° ± 0-
2°) and position it on the long bar. (Fig. 122)
Move a wheel side till it forms, with the two bars, the
angle fixed by the protractor.
Adjust the mechanical steering stop, screwing in or
out the stop bolt (Fig 120), locking it with the locknut
(5) to 150 Nm torque.
Steer completely towards the other side and repeat
the same operations. (Fig. 123).
Fig.121
Fig.122
Fig.123
