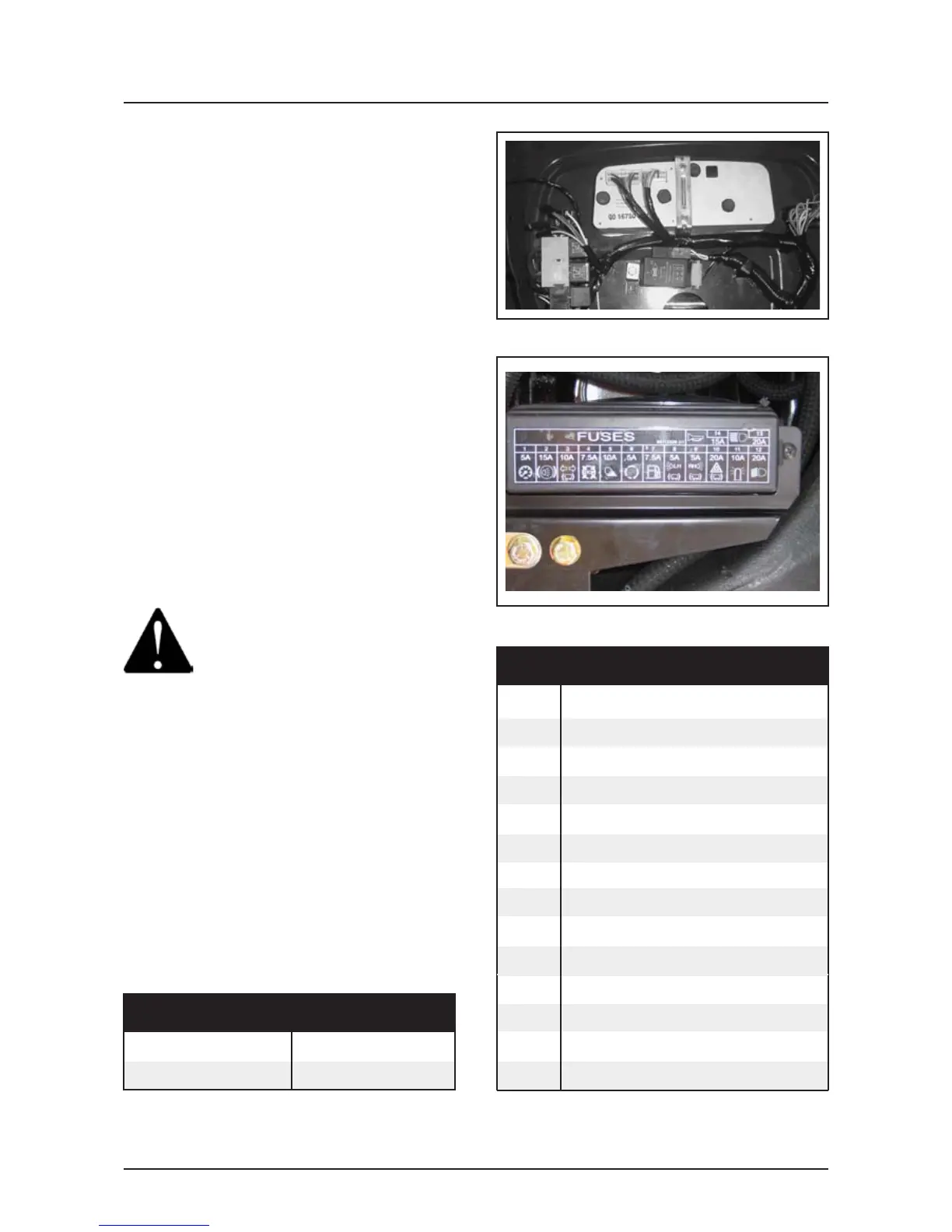

Flasher unit
Replacement
The flasher unit for the flashing warning lights is
located behind the instrument panel.
To replace the flasher unit:
1. Disconnect the battery, removing the negative
cable (-) first in the interest of safety.
2. Remove the instrument panel cowl.
3. On the right hand side of the instrument panel
remove the nut and bolt (Fig. 144) securing the flasher
unit to the instrument panel.
4. Remove the unit from the tractor and pull out the
plug from the base.
5. Reassemble with a new flasher unit ensuring that
the plug is pushed firmly home. Reconnect the
electrical supply and test the operation of the lights.
Fuses
Replacement
The single fuse box (Fig. 145) is situated at the left
hand side of the fuel tank. To gain access proceed
as follows:
1. Remove the left top-side panel.
2. Remove the fuse box cover.
3. Select the faulty fuse and replace with a new one.
4. The fuses in the box protect ten different circuits
as detailed in Table 11.
IMPORTANT: DO NOT replace the blown fuse
with another of a different rating. Always ensure that
the new fuse is of the correct capacity as detailed in
the table. For wiring diagram see page 112.
WARNING: The tractor is NOT fitted
with auxiliary electrical supply
connectors or power sockets.
DO NOT access the electrical supply
by the use of clip connectors and cutting into
the harness. This could result in an electrical
short circuit and cause extensive fire damage.
Contact your Massey Ferguson Dealer who will advise
you of approved Massey Ferguson accessories and
install them correctly on your tractor, together with
the correct fuse rating. Use of NON-APPROVED
accessories and fuse ratings may cause damage to
the tractor or accessory.
Fig.144
Fig.145
2
3
4
1
5
6
7
8
9
10
Symbol
No
DESCRIPTION
INSTRUMENTS AND WARNING LIGHTS (5A)
ESOS + ADVANCE UNIT (7,5A)
FUEL LIFT PUMP (7,5 A)
INDICATOR LIGHTS + TRAILER IND. LIGHTS (10A)
STARTER RELAY (5A)
SIDE LIGHTS LH + TRAILER SIDE LIGHTS (5A)
HAZARD WARNING + TRAILER HAZ. LIGHTS (20A)
Table 11
CIRCUIT
LINE FUSE
AMP.
PREHEATING 125 A
Table 12
BRAKE LIGHTS (15A)
WORK LAMP (PLOUGH LIGHT) (10A)
SIDE LIGHTS RH + TRAILER SIDE LIGHTS (5A)
11
12
13
14
BEACON LAMP (10A)
DIPPED BEAM LIGHTS (20A)
MAIN HEADLIGHTS LH/RH (20A)
HORN (15A)
