Mastech MS8221C User Manual

34
35

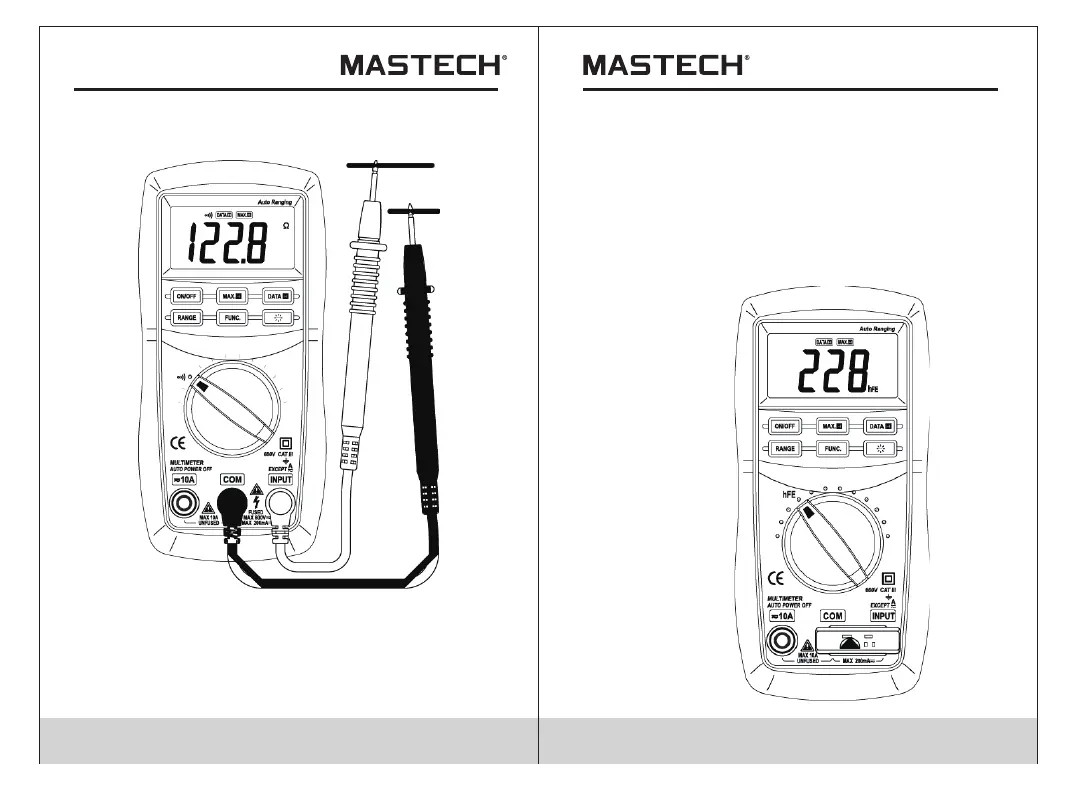

4.20 Testing Transistor
4.20.1 Set the transform switch at the hFE range position.
4.20.2 Put two plugs '-' and '+' of multifunction test
socket into COM jack and INPUT jack respectively.
4.20.3 Identify whether the transistor is NPN or PNP
type and insert emitter, base and collector leads
into the proper holes of the transistor on the
multifunction test socket for testing.
4.20.4 You can get reading from LCD.
Note:
• Do not put the
plug into the
wrong jack.

Mastech MS8221C Specifications

General

Brand	Mastech
Model	MS8221C
Category	Multimeter
Language	English
