Master Chef G45323 User Manual

9
b. Make sure that the Side Burner (DG) engages
the Side Burner Valve (DE). Attach the Wing
Nut (#10) to the Side Burner (DG), as shown
in gure B.
e. Use the Side Burner Venturi Clip (#15) to
connect the Side Burner (DG) to the Side
Burner Valve (DE).
c. Attach the end of the Side Burner Electrode
Wire (DH) to the underside of the Side Burner
Electrode (DG), as shown. Ensure that the wire
is pushed in rmly.
d. Position the Side Burner Cooking Grate (DI)
onto the side burner drip pan (DD).

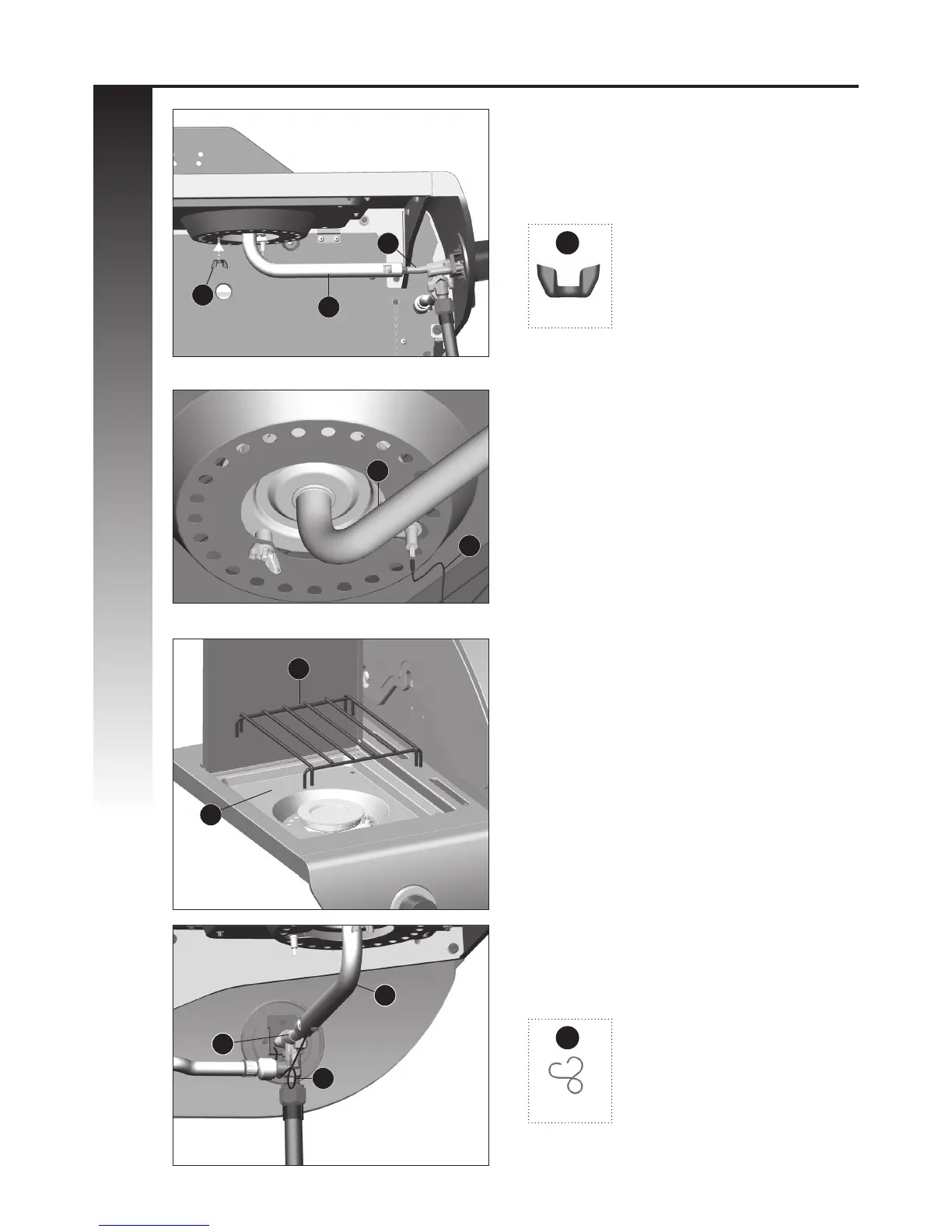

ASSEMBLY INSTRUCTIONS
8
Left side view
View from underneath left side shelf
View from underneath left side shelf
15
DG
DG
DI
DD
DH
DE
B
C
D
DG
E
YOU WILL NEED:
YOU WILL NEED:
10
15
X 1
X 1
DE
10
