10
ASSEMBLY INSTRUCTIONS
9
BA
DK
DK
DJ
BA
BK
DK
CH
DJ
DJ

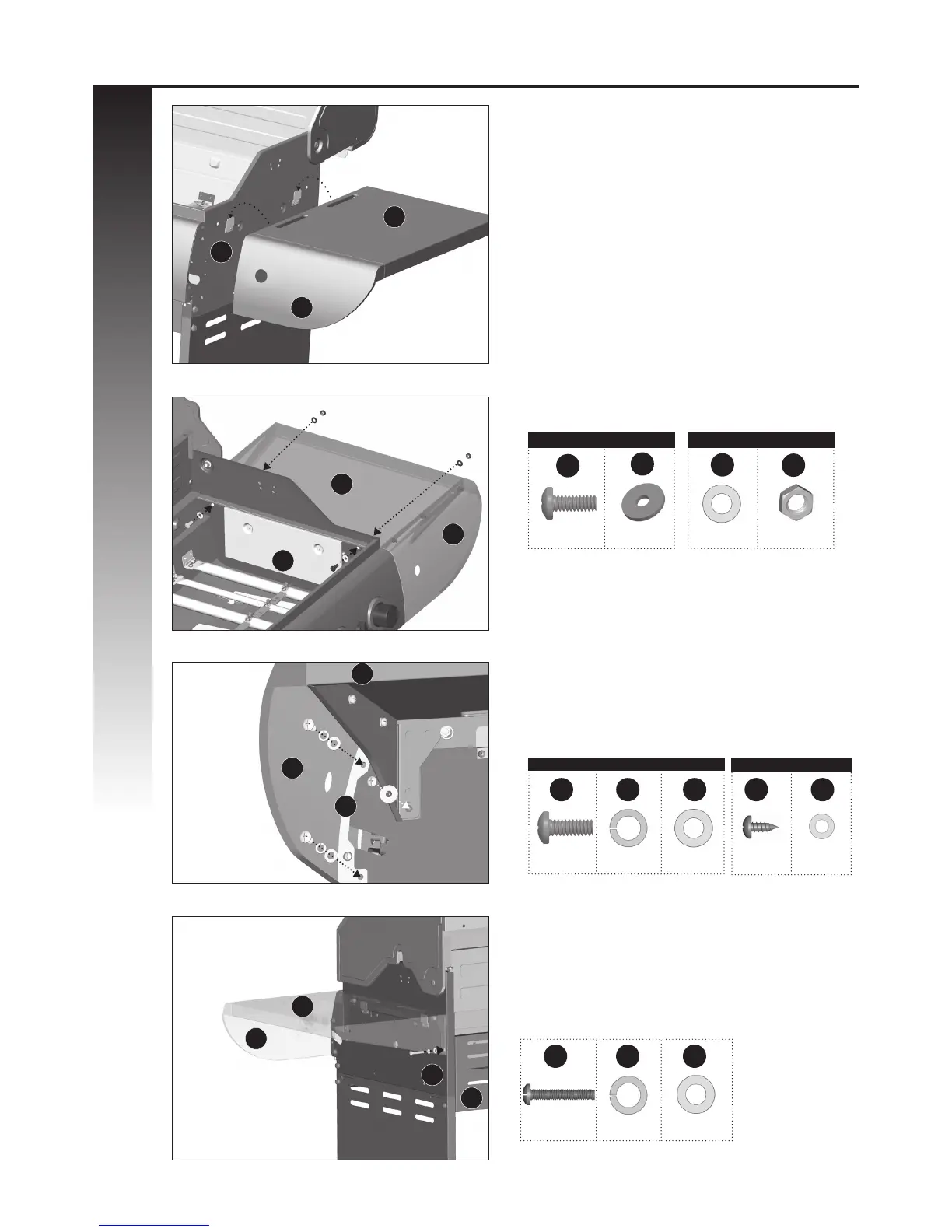

RIGHT SIDE SHELF ASSEMBLY
TIP: Do not tighten until all hardware is in place.
a. Mount the Right Side Shelf (DJ and DK) onto
the two support brackets, located on the right,
upper side panel of the Burner Box (BA).
b. Assemble the Right Side Shelf (DJ and DK) to
the upper side panel of the Burner Box (BA), by
positioning hardware through the interior of
the Burner Box (BA), as shown in gure B.
c. Assemble the front of the Right Side Shelf (DJ
and DK) to the Control Panel (CH), as shown in
gure C.
d. Complete the Right Side Shelf Assembly (DJ
and DK) by connecting the side shelf, the rear
of the Burner Box side panel (BA), and the
Upper Back Panel (BK), as shown in gure D.
YOU WILL NEED:
YOU WILL NEED:
YOU WILL NEED:
A
C
D
View, under right side shelf
Back, right side view
D1
C1
C1
A1 B2
Front, right side view
View inside burner box
2
12
X 2
X 2
4
X 2
6
X 2
2 5 6 11 9
X 2 X 2 X 2 X 1 X 1
C1
D1
1 5 6
X 1 X 1
TIP: Ensure that the rubber side of the
rubberized washer makes contact with the
burner box.
X 1
BA
DK
DJ
B
A1
B2
A1
B2
To Next Page
