1
Caution:
Sheet metal can cause injury. Wear gloves when installing the grill.

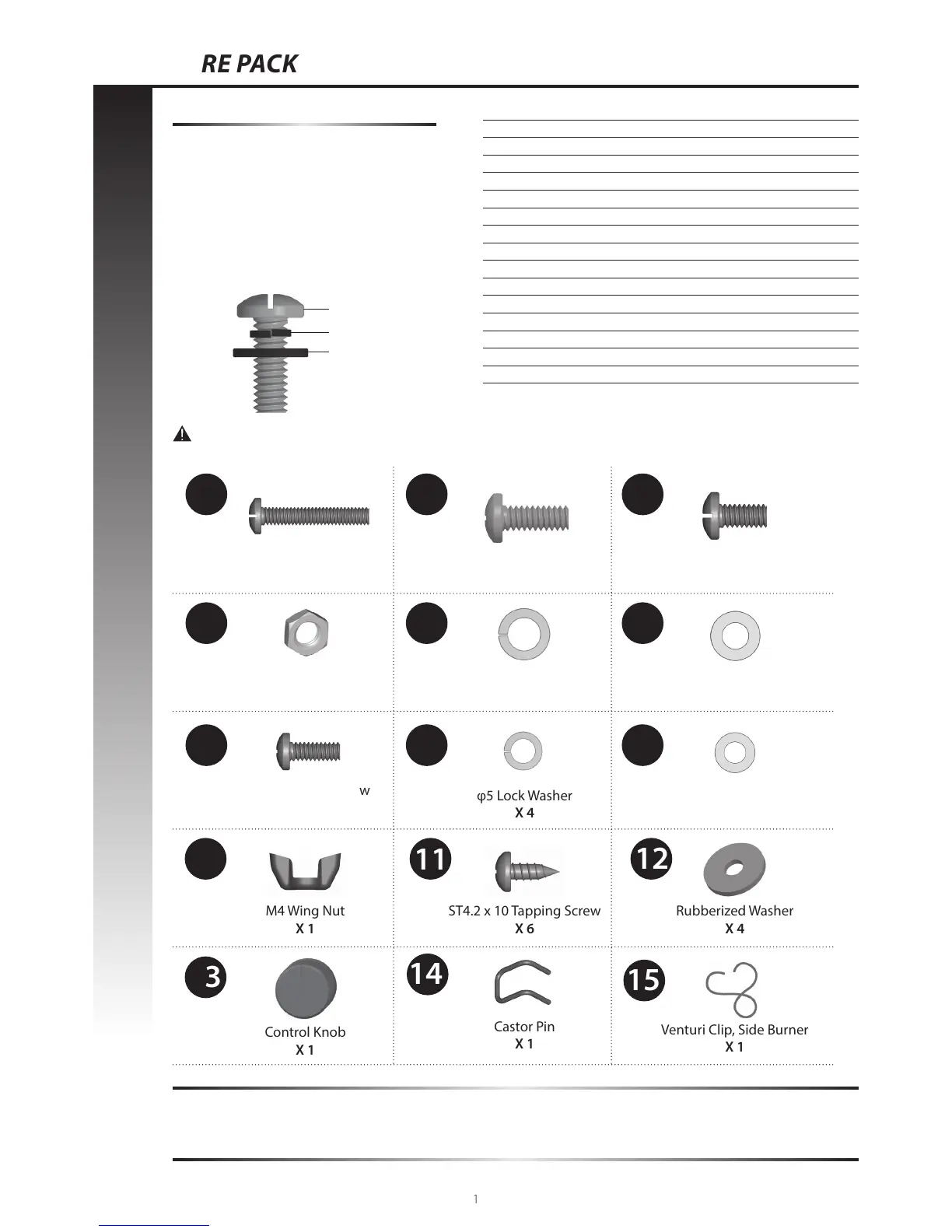

HARDWARE PACK
1/4” - 20 UNC x 18 Screw
X 8
φ7 Washer
X 22
φ7 Lock Washer
X 18
φ5 Lock Washer
X 4
φ5 Washer
X 6
M4 Wing Nut
X 1
Control Knob
X 1
Rubberized Washer
X 4
Castor Pin
X 1
1 2 3
4 5 6
9
10
13
7
11
8
12
14
KEY # DESCRIPTION PART NUMBER QUANTITY
1 1/4” - 20 UNC x 38 Screw 20120-13038-250 8
2 1/4’’ - 20 UNC x 18 Screw 20120-13018-250 8
3 1/4” - 20 UNC x 13 Screw 20120-13013-250 6
4 1/4” - 20 UNC Nut 30220-13000-250 4
5 φ7 Lock Washer 41400-07000-250 18
6 φ7 Washer 40300-07000-250 22
7 NO.10 - 24 UNC x 10 Screw 20124-10010-250 4
8 φ5 Lock Washer 41400-05000-250 4
9 φ5 Washer 40300-05000-250 6
10 M4 Wing Nut 33301-04000-032 1
11 ST4.2 x 10 Tapping Screw 22500-42010-137 6
12 Rubberized Washer G501-0054-9100 4
13 Control Knob G453-0093-9000 1
14 Castor Pin G350-0026-9000 1
15 Venturi Clip, Side Burner G405-0019-9200 1
1/4” - 20 UNC x 38 Screw
X 8
1/4” - 20 UNC Nut
X 4
NO.10 - 24 UNC x10 Screw
X 4
ST4.2 x 10 Tapping Screw
X 6
1/4” - 20 UNC x 13 Screw
X 6
15
Venturi Clip, Side Burner
X 1
TOOLS NEEDED FOR ASSEMBLY
• #2 Star-head screwdriver (long and short)
• ¼” Slotted screwdriver (long and short)
• Adjustable wrench
• Pliers
For correct hardware assembly, always position
the lock washer between the screw and the at
washer.
Lock Washer
Flat Washer
Screw
BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.
Assemble the barbecue on a flat, clean surface. The grill is heavy, two people are
recommended to complete assembly.
To Next Page
