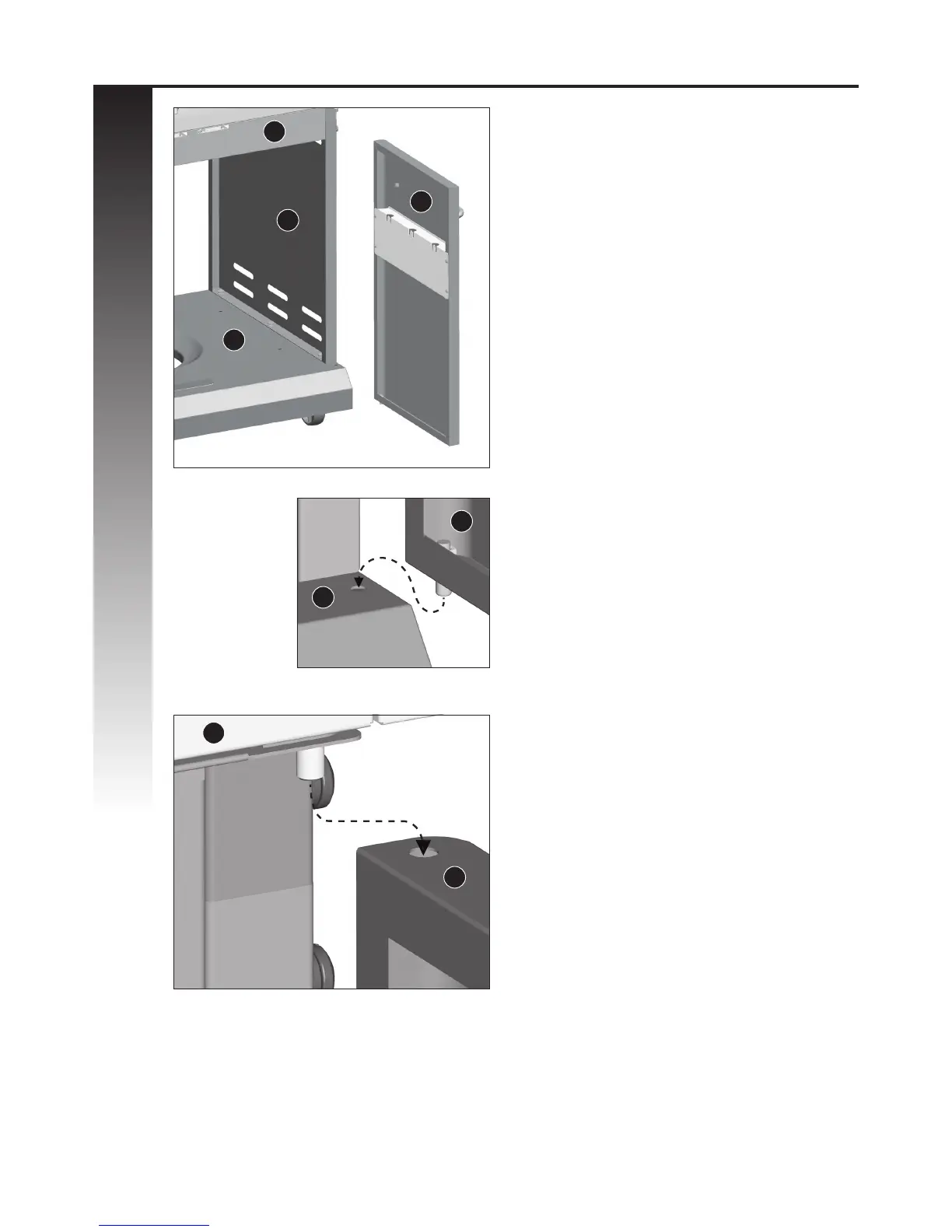

a. Assemble the Right Door Assembly (EH),
to the Bottom Shelf (ED) by inserting the xed
pin (bottom of door) into the hole provided
(gure B).
b. Assemble the top of the Door Assembly (EH) to
the Door Support Rail (EA), by pressing in the
door support pin and aligning with the hole
located on the top right corner of the door
(gure C).
TIP: Use a paint scraper to press-in the support
pin, while the second person aligns the door.
The support pin will lock into position when the
door is assembled correctly.
c. Repeat steps a, and b for the Left Door
Assembly (EG).
EC
ED
ED
EH
EA
EA
EH
EH
14
ASSEMBLY INSTRUCTIONS
Close up, bottom of door
Close up, top of door
A
C
B
