14
x 6
CC
13
CC 1/4-20 x 1/2 in.
Screw
BB
BB
DD
ASSEMBLY INSTRUCTIONS
Hardware Used:

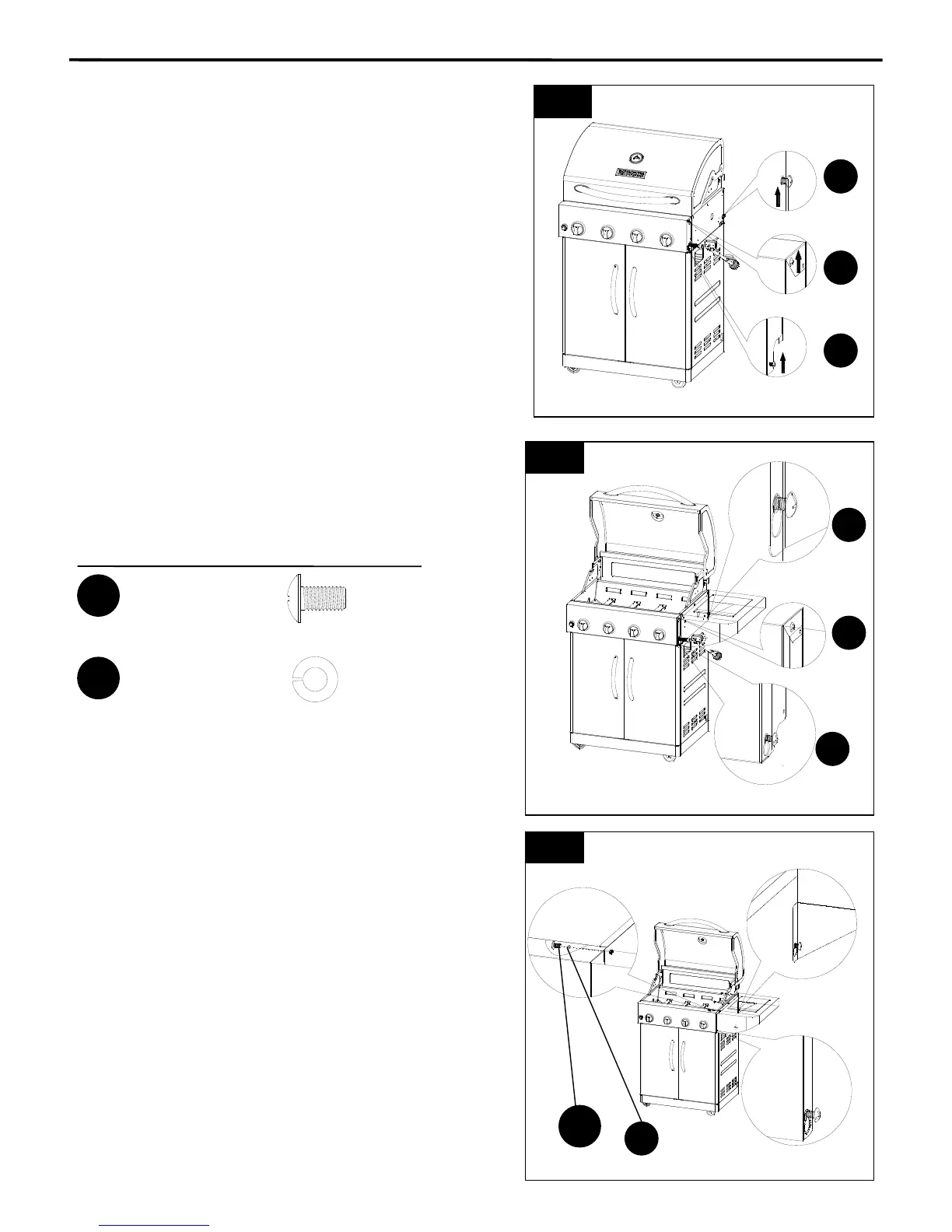

17. Install side shelves
Starting with the right side, loosen the 2 pre-installed
screws marked “a” and “c” and then completely remove
screw “b” as shown in Fig. 17A.
Using the shelf keyhole slots, slide the right shelf onto
the 2 loosened screws as shown in Fig. 17B.
Open the grill hood and from inside the grill attach the
right side shelf using 3 1/4-20 x 1/2 in. screws (BB) and
lock washers (DD) as shown in Fig. 17C.
Reinstall the previously removed screw “b” as shown in
Fig.17B.
Install all shelf screws loosely first and then tighten
all 6 shelf screws shown in Fig. 17B & 17C.
Repeat steps above to install the left shelf.
17A
17B
17C
1/4-20 lock
Washer
x 6
DD
a
b
c
a
b
c
