8
lowes.com/masterforge
®
ASSEMBLY INSTRUCTIONS

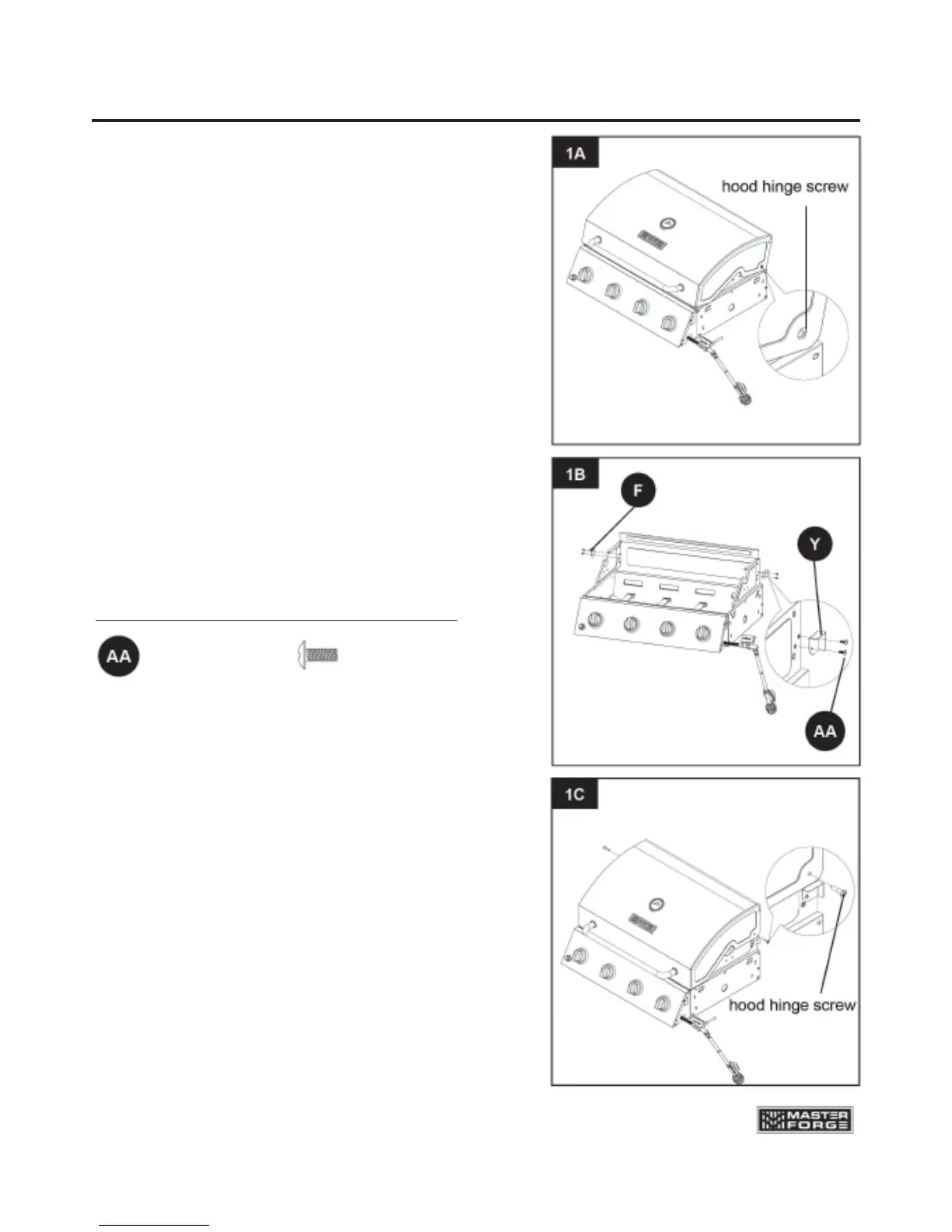

1. Assemble the grill hood
A. Remove the hood hinge screws from
the grill head (D), then remove the hood
from the grill head and set it aside. Shown in Fig.
1A .
Note: DO NOT OPEN THE HOOD PROR TO
COMPLETING STEP A.
B. Remove all of the parts from inside of
the grill head.
C. Attach the hood stop left (F) and hood
stop right (Y) to the grill head (D) using
four 5/32-32 x 3/8 in. screws (AA). Shown
in Fig. 1B.
Hardware Used
D. Reinstall the hood to the grill head (D)
above the hood stops using the two
previously removed hood hinge screws.
Shown in Fig. 1C
Note: The hood is reinstalled in a higher
position than when it was removed. The
lower position was for shipping
purposes only.
5/32-32 x 3/8 in.
Screw
x 4
To Next Page
