Master Forge CBS24032L User Manual

ASSEMBLY INSTRUCTIONS

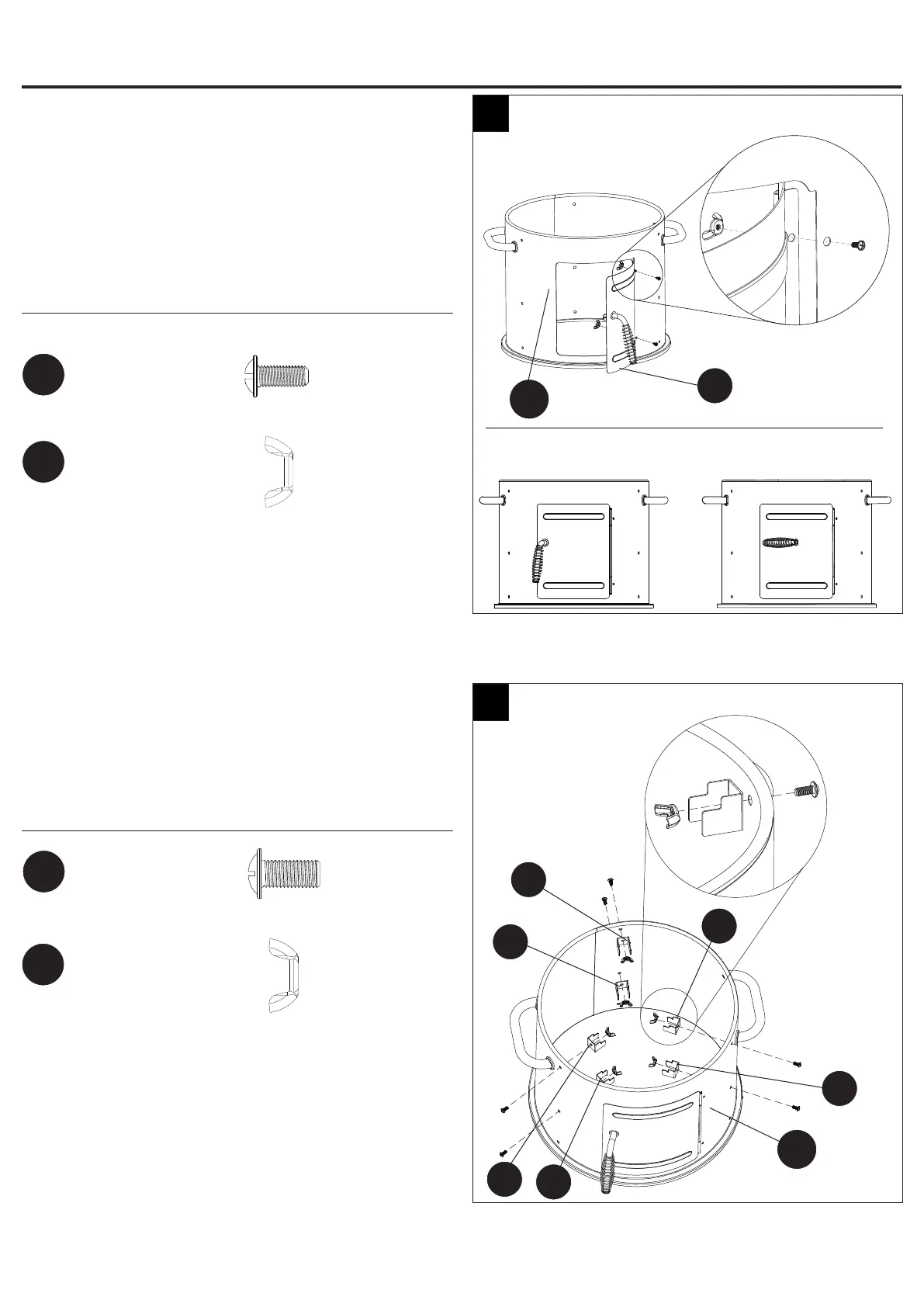

Step 5: Attach Door
Attach the door (L) to the upper smoker body (K)
using two M4x10 screws (AA) and two M4 wing
nuts(DD).
NOTE: Please ensure the door hinge is attached to
the inside of the smoker body.
Hardware Used
Step 6: Attach Cooking Grid Supports
Attach the cooking grid supports (I) to upper smoker
body (K) using six M5x12 screws (BB) and six M5
wing nuts (EE).
Hardware Used
K
K
5
6
L
I
I
I
I
I
I
M4x10
Screw
AA
x 2
M4
Wing Nut
DD
x 2
Lock
Open
M5
Wing Nut
EE
x 6
M5x12
Screw
BB
x 6
