ASSEMBLY INSTRUCTIONS

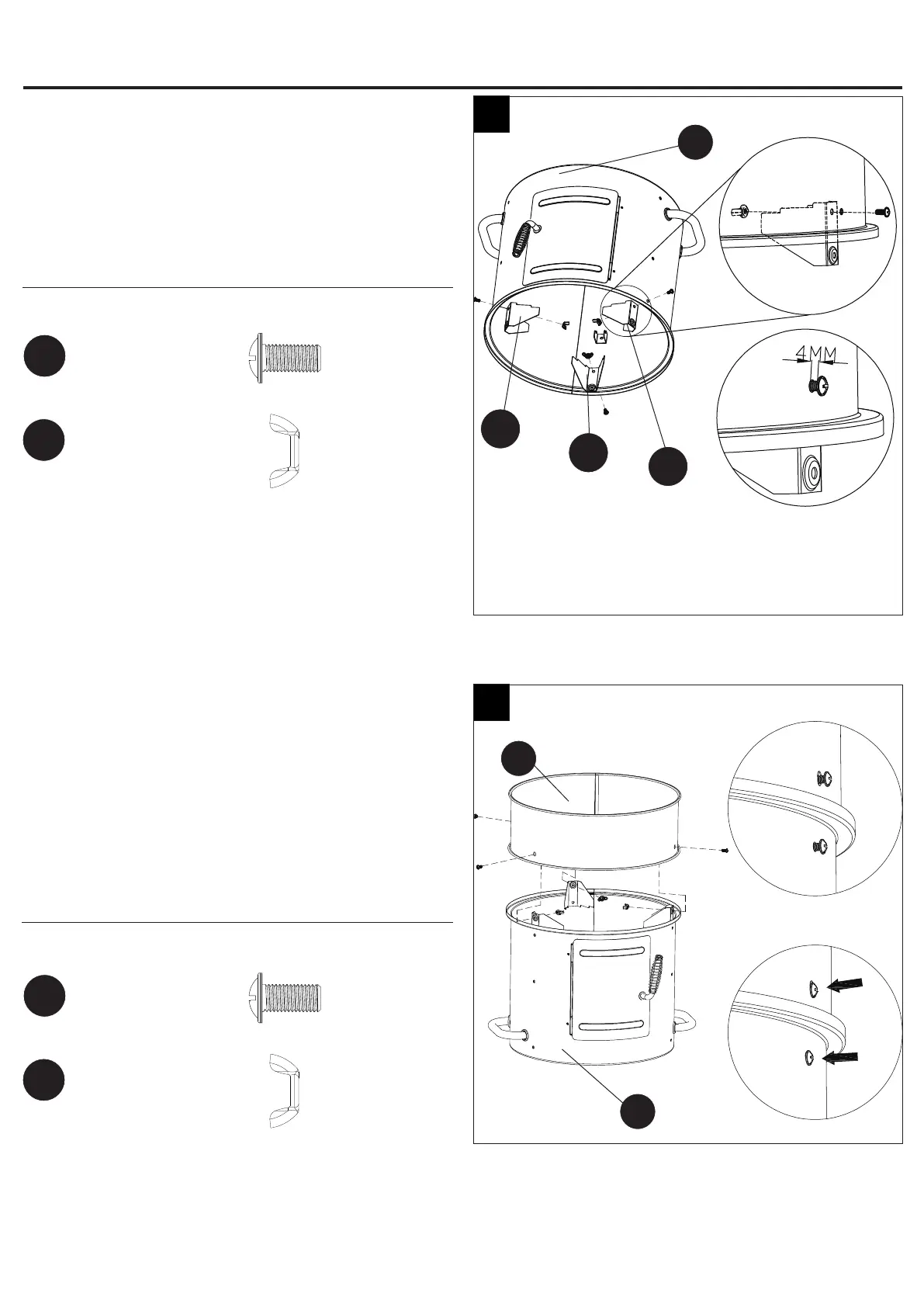

Step 7: Attach Water Pan Support
Attach water pan supports (O) to upper smoker
body (K) using three M5x12 screws (BB) and three
M5 wing nuts (EE).
NOTE: Don't fasten the screws too tightly.
Hardware Used
Step 8: Attach Middle Smoker Body
Align the middle smoker body (M) and upper
smoker body (K), then attach the middle
smoker body (M) to upper smoker body (K)
using three M5x12 screws (BB) and three
M5 wing nuts (EE).
NOTE: Tighten all screws in this step.
Hardware Used
O
O
O
7
8
K
K
M
M5
Wing Nut
EE
x 3
M5
Wing Nut
EE
x 3
M5x12
Screw
BB
x 3
M5x12
Screw
BB
x 3
First
Second
9
To Next Page
