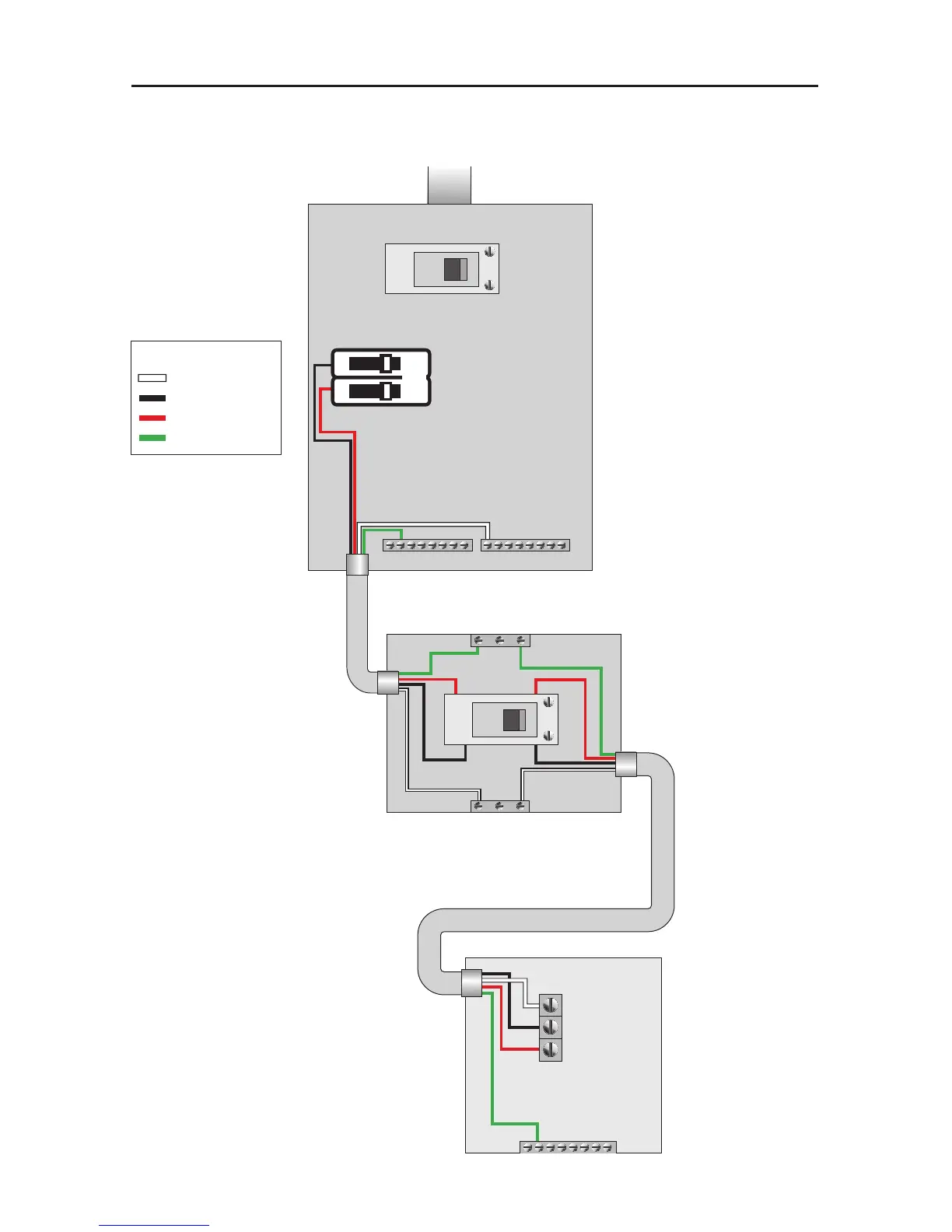

CONFIGURATION 3
240V, 50A SERVICE
*SWIM SPA
JUNCTION BOX
MAIN ELECTRICAL PANEL
(HOUSE)
Key
WHT - White Neutral
BLK - Black Hot, Line 1
RED - Red Hot, Line 2
GND - Ground
WHT
BLK
GND
RED
MAIN BREAKER
50 AMP
BREAKER/DISCONNECT
BLK
BLK
WHT
WHT
*Refer to wiring diagram inside swim spa
junction box for proper power connection
to terminals. The swim spa junction box is
located inside swim spa behind the factory
installed GFCI. Remove skirt access panel
"B" to gain access to swim spa junction
box (see Glossary of Swim Spa Terminology).
WHT
BLK
RED
GND
50
RED
RED
GND
GND
ELECTRICAL REQUIREMENTS
Configuration 3 - 240V, 50A Service
