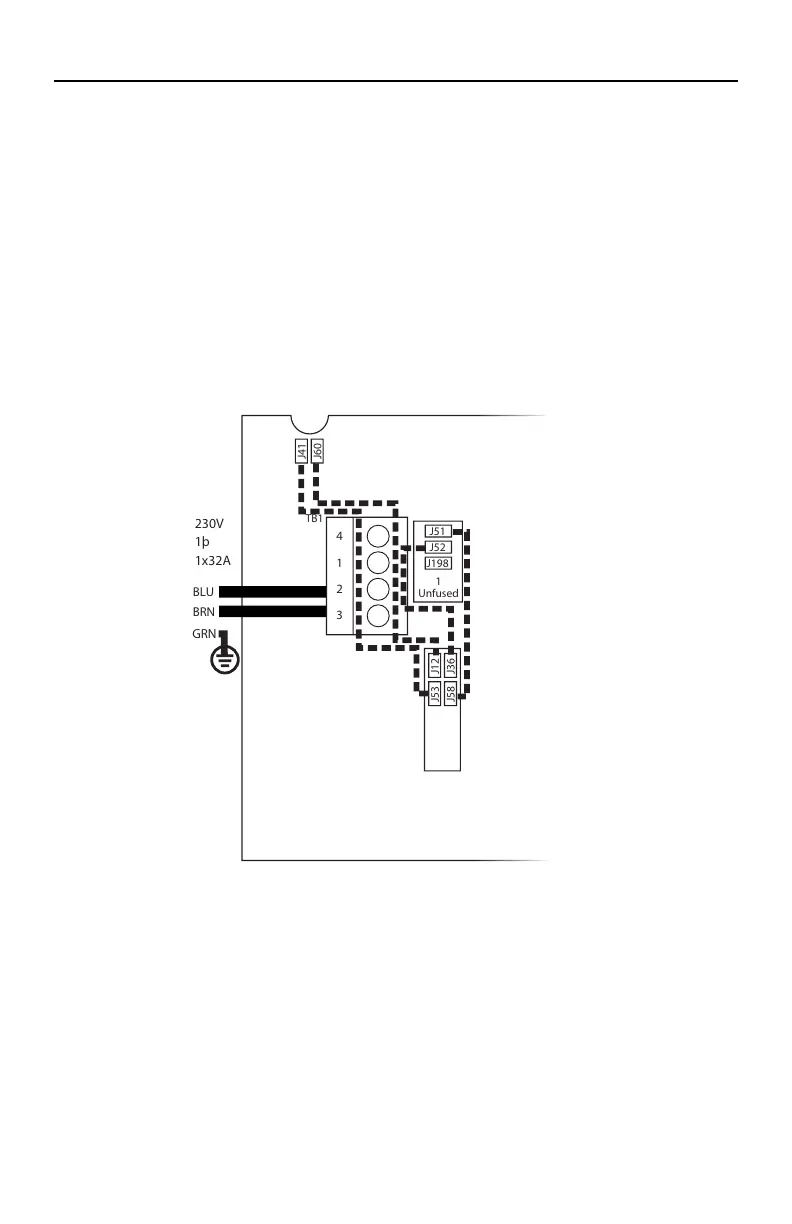

AS MANUFACTURED – SINGLE SERVICE (Figure 1)
Single Service, TN and TT Electrical Systems (1x13 Amp, 1x16 Amp or 1x32 Amp)* 3 Wires
(1 Line + 1 Neutral + 1 Protective Earth). Protective Earth wire (Green/Yellow) must be connected
to system ground terminal as marked.
Heat Disable dip switches (Switch Bank S1, A2-A4) must be evaluated to prevent the spa
maximum ampacity from exceeding the service maximum ampacity. When wiring spa to electrical
requirements as configured from factory, dip switch settings should not be changed from factory
settings.*
ELECTRICAL REQUIREMENTS
MS6013XE HOOK-UP
TB1
4
1
2
3
1
Unfused
J41
J60
J51
J52
J198
J12
J36
J53
J58
1
Unfused
J51
J52
J198
GRN
TB1
4
1
2
3
4
J45
J54
J77
J78
J79
J41
J60
REMOVE
JUMPER WIRES
J51-J58
J52-J36
J12
J36
J53
J58
J62
J88
3
230V 3þ 3x16A
A2
A3
OFF ON
A5
2 BRN
BLU
1 BRN
3 BRN
Figure 1
* Wiring must be sized to spa specification. Spa rated maximum ampacity cannot exceed the service
maximum ampacity. This does not represent an option to the Installer. See Model Specifications
page for electrical requirements by spa model.
CAUTION – RCD will vary by manufacturer of RCD. Improper wiring of RCD
may result in permanent damage to spa control pack. Repair/replacement of
spa system box is not covered under warranty when damage results from
improper wiring. Actual wire attachment points on the Spa Control Pack may
vary. Always refer to the wiring diagram inside the Spa Control Pack for proper
power connection.
