IT
8

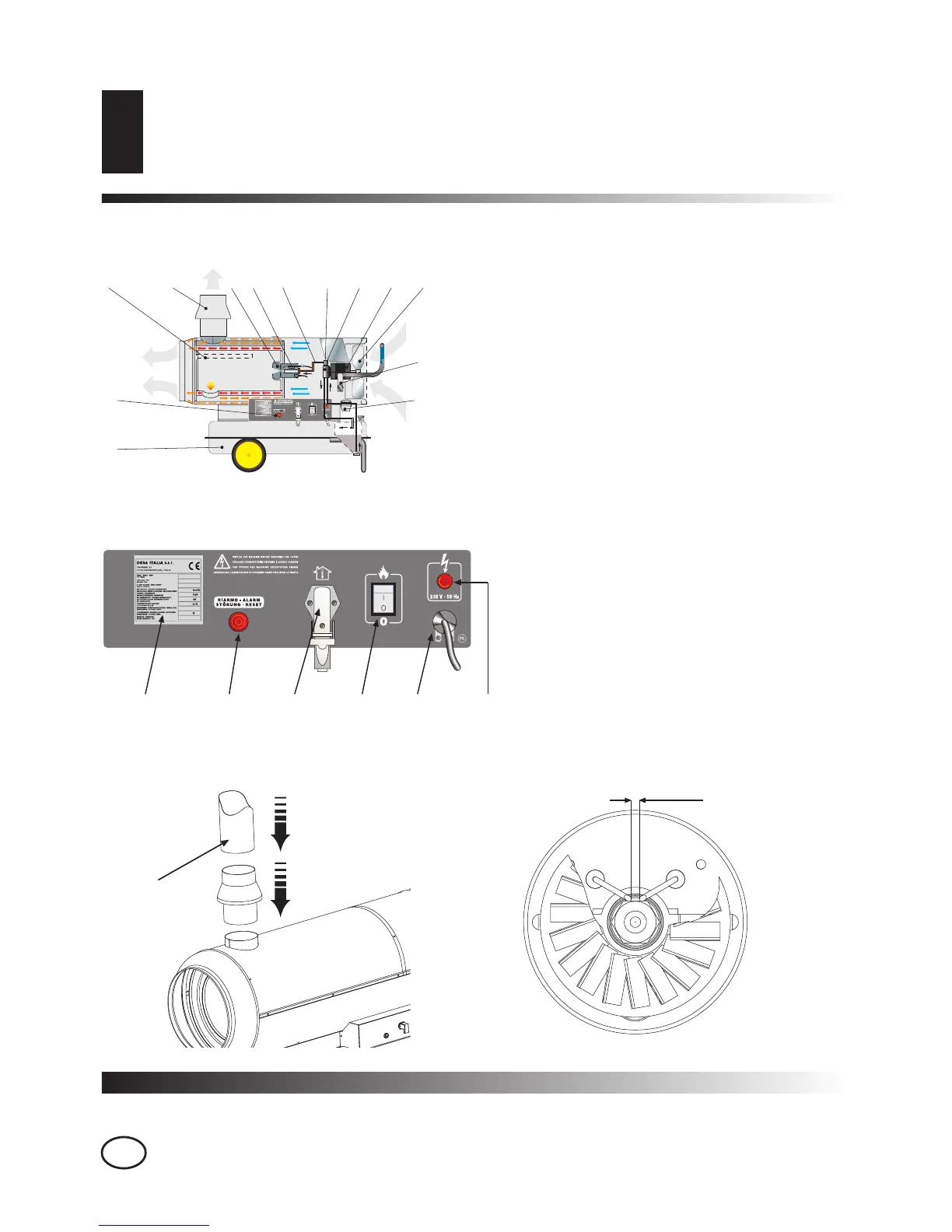

SCHEMA DI FUNZIONAMENTO
QUADRO ELETTRICO
SCHEMA FISSAGGIO CAMINO
REGOLAZIONE ELETTRODI
1 Camera di combustione
2 Raccordo fumario anti vento
3Bruciatore
4 Ugello
5 Circuito combustibile
6Pompa gasolio
7 Elettrovalvola combustibile
8 Motore
9Ventilatore
10 Staffa avvolgimento cavo
11 Filtro combustibile
12 Serbatoio combustibile
13 Quadro comandi
1 Pulsante di riarmo
2Targhetta di identificazione
3 Interuttore principale
4 Presa per termostato ambiente
5Cavo di alimentazione
6 Spia tensione
SCHEMA DI FUNZIONAMENTO
1 2 3 6 8 9
12
13
11
4
5 7
10
QUADRO ELETTRICO
123 546
SCHEMA FISSAGGIO REGOLAZIONE ELETTRODI
2-3 mm
214356
Tubo Ø 150 mm
