ASSEMBLY INSTRUCTIONS

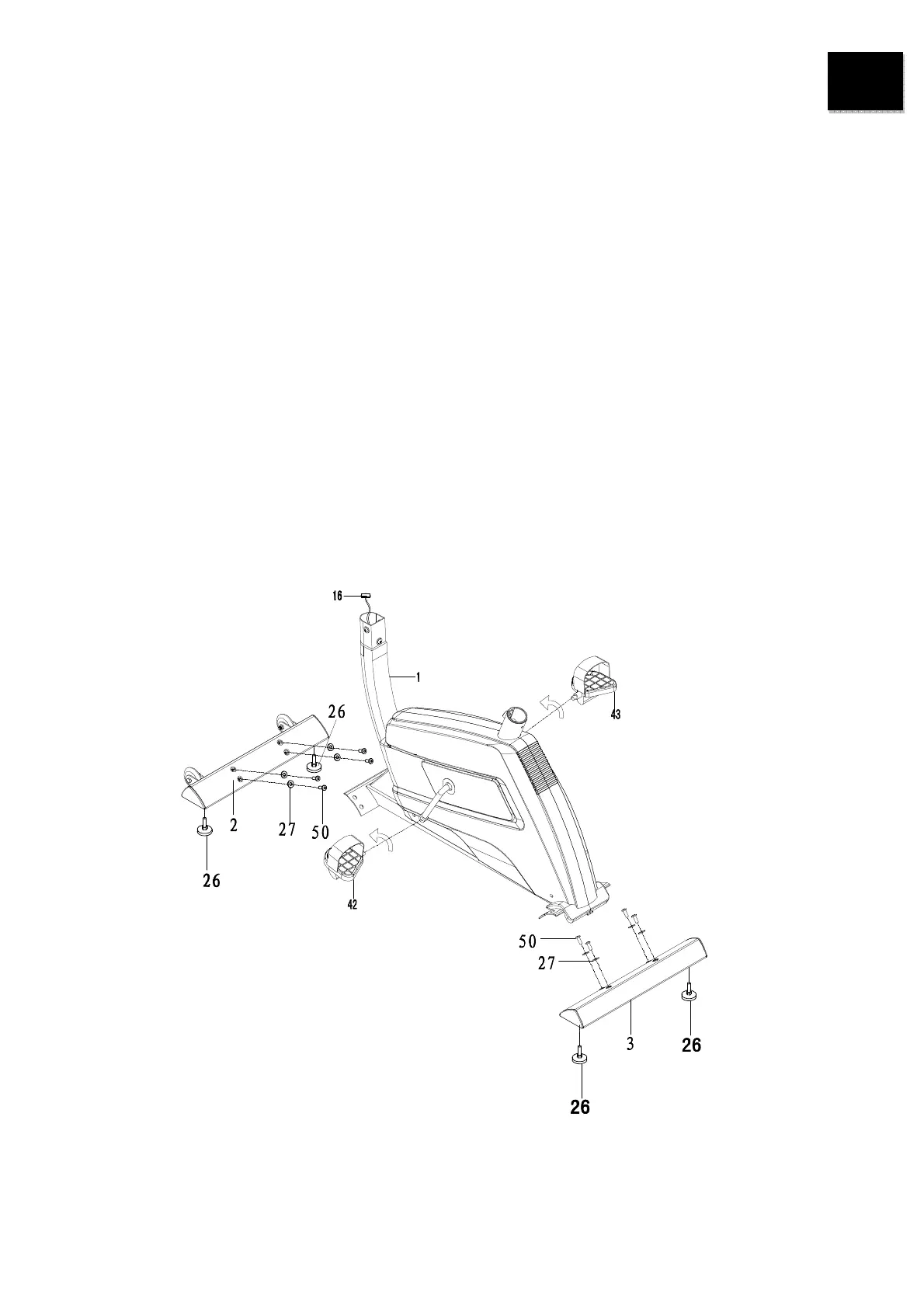

1. Front and Rear Stabilizers Installation
Position the Front Stabilizer (2) in front of the Main Frame (1) and align bolt holes.
Attach the Front Stabilizer (2) onto the front curve of the Main Frame (1) with two M8x20
Bolts (50), two Ø8xØ20 Big Washers (23).
Position the Rear Stabilizer (3) behind the Main Frame (1) and align bolt holes.
Attach the Rear Stabilizer (3) onto the rear curve of the Main Frame (1) with two M8x20
Bolts (50), two Ø8xØ20 Big Curve Washers (27).
Attached the Adjustable base (26) to the Front and Rear stabilizer.
Foot Pedals Installation
The Cranks, Foot Pedals, Pedal Shafts and Pedal Straps are marked “R” for Right and
“L” for Left.
Insert the pedal shaft of Left Foot Pedal (42) into threaded hole in the left Crank (40). Turn
the pedal shaft by hand in the counter-clockwise direction until snug.
Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip the
threads.
Screwdriver provided Insert pedal shaft of Right Foot Pedal (43) into threaded hole in right
Crank (40). Turn the pedal shaft by hand in the clockwise direction until snug.
