Master R22 User Manual

6
EN

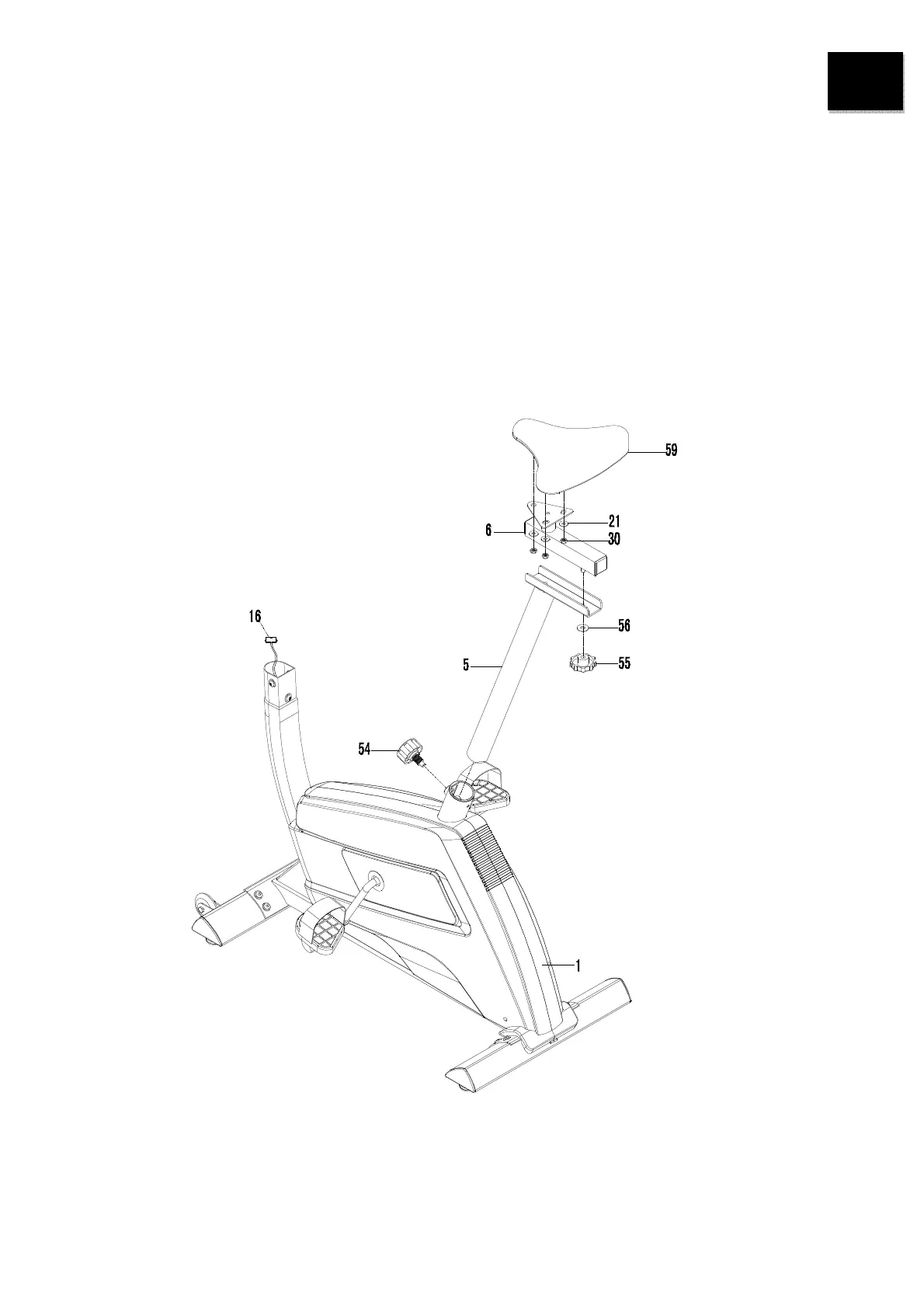

2. Seat Post, Seat Cushion, and Seat Sliding Tube Installation
Insert the Seat Post (5) into the Seat Post Bushing (53) on the tube of the Main Frame (1)
and then attach the Seat Post Knob (54) onto the tube of the Main Frame (1) by turning it in
a clockwise direction, lock the Seat Post (5) in the suitable position. Remove three M8
Nylon Nuts (30) and three Ø16xØ8x1.5 Washers (21) from underside ofthe Seat Cushion
(59).
Guide bolts on underside of the Seat Cushion (59) through holes on top of the Seat Sliding
Tube (6), attach with three M8 Nylon Nuts (30) and Ø16xØ8x1.5 Washers (21) that were
removed.
Guide the Seat Sliding Tube Bolt on underside of the Seat Sliding Tube (6) through hole
on top of the Seat Post (5), attach with one Ø10xØ20x2 Washer (56) and Seat Adjustment
Knob (55).

Master R22 Specifications

General

Resistance Type	Magnetic
Drive System	Belt
Display Type	LCD
Transport Wheels	Yes
Programs	12
Dimensions (L x W x H)	21.7 inches
Maximum User Weight	150 kg (330 lbs)
