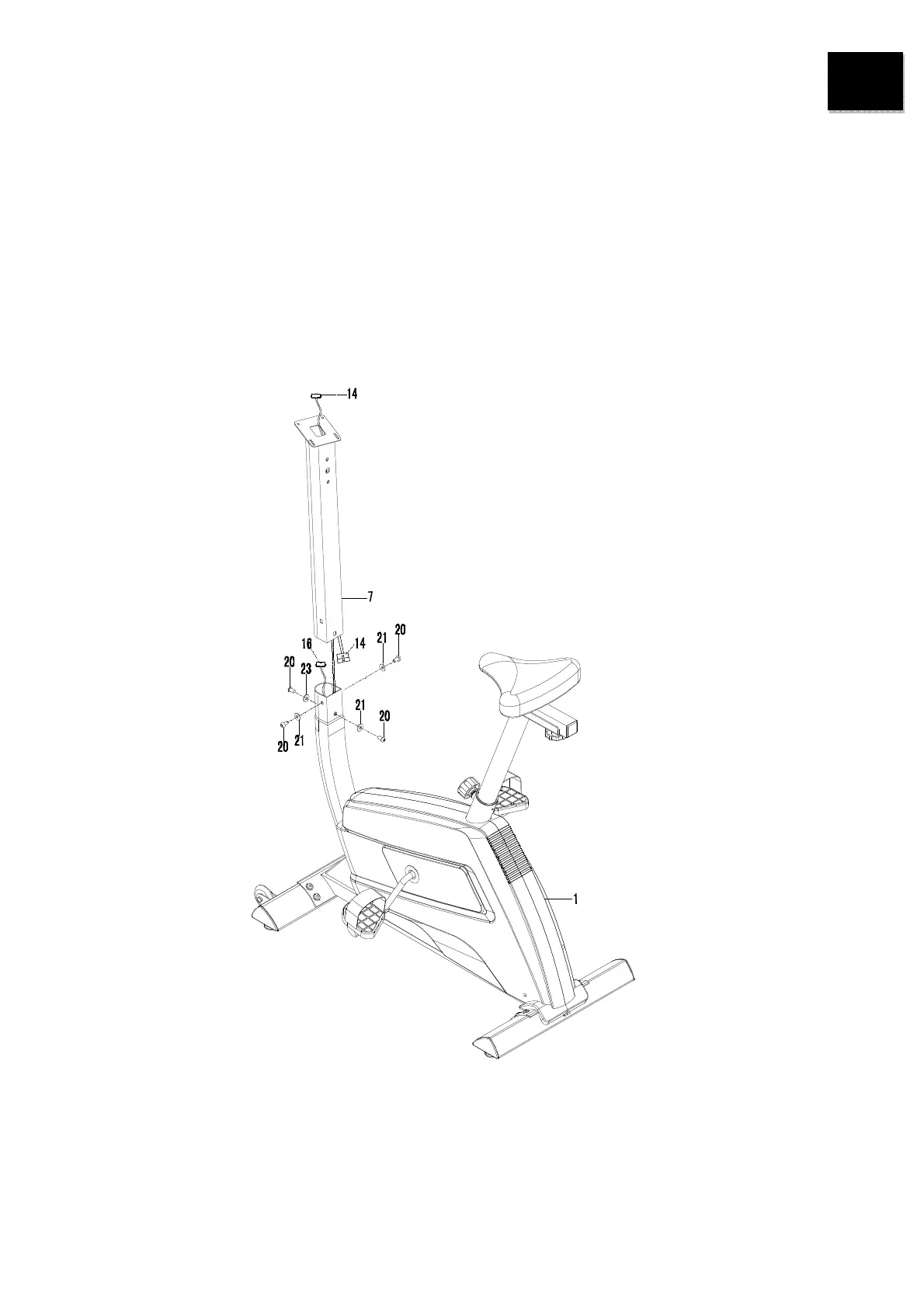

3. Handlebar Post Installation
Remove four M8x15 Bolts (20), three Ø16xØ8x1.5 Washers (21) and one Ø16xØ8x1.5
Curve Washer (23) from the Main Frame (1).
Connect the Extension Sensor Wire (16) from the Main Frame (1) to the Computer lower
Wire (14) from the Handlebar Post (7).
Insert the Handlebar Post (7) onto the tube of the Main Frame (1) and secure with four
M8x15 Bolts (20), three Ø16xØ8x1.5 Washers (21) and one Ø16xØ8x1.5 Curve Washer
(23) that were removed.
