8
EN

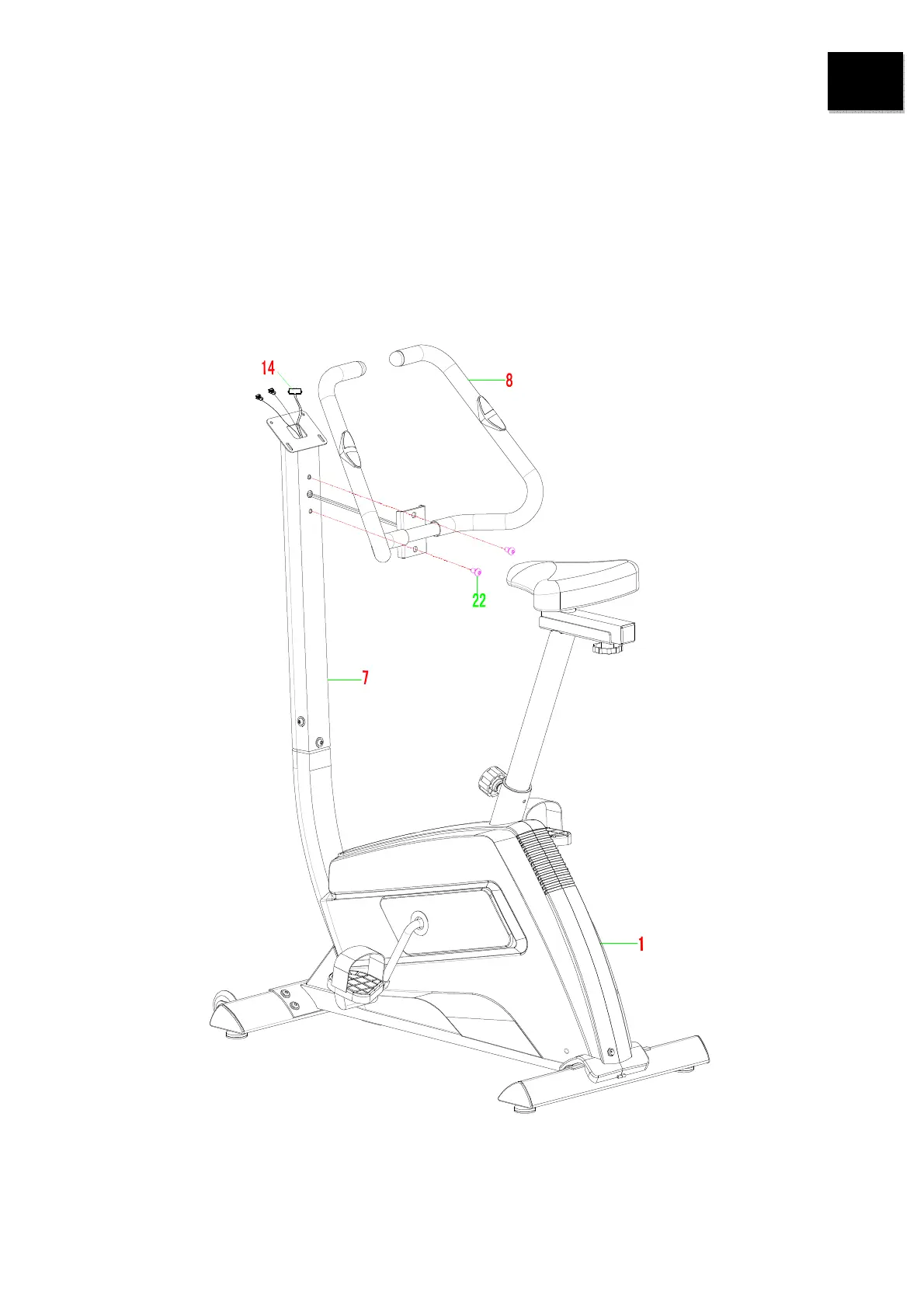

4. Handlebar installation
Remove two M8x16 Bolts (22) from the Front Post (7). Insert the Hand Pulse Sensor Wires
(11) from the Handlebar (8) into the hole on the Front Post (7) and then pull them out from
the top end of the Front Post (7).
Attach the Handlebar (8) onto the Front Post (7) with two M8x16 Bolts (22) that were
removed.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Master R22 and is the answer not in the manual?

Master R22 Specifications

General IconGeneral
Resistance TypeMagnetic
Drive SystemBelt
Display TypeLCD
Transport WheelsYes
Programs12
Dimensions (L x W x H)21.7 inches
Maximum User Weight150 kg (330 lbs)
