11
ENSAMBLAJE
PASO 11

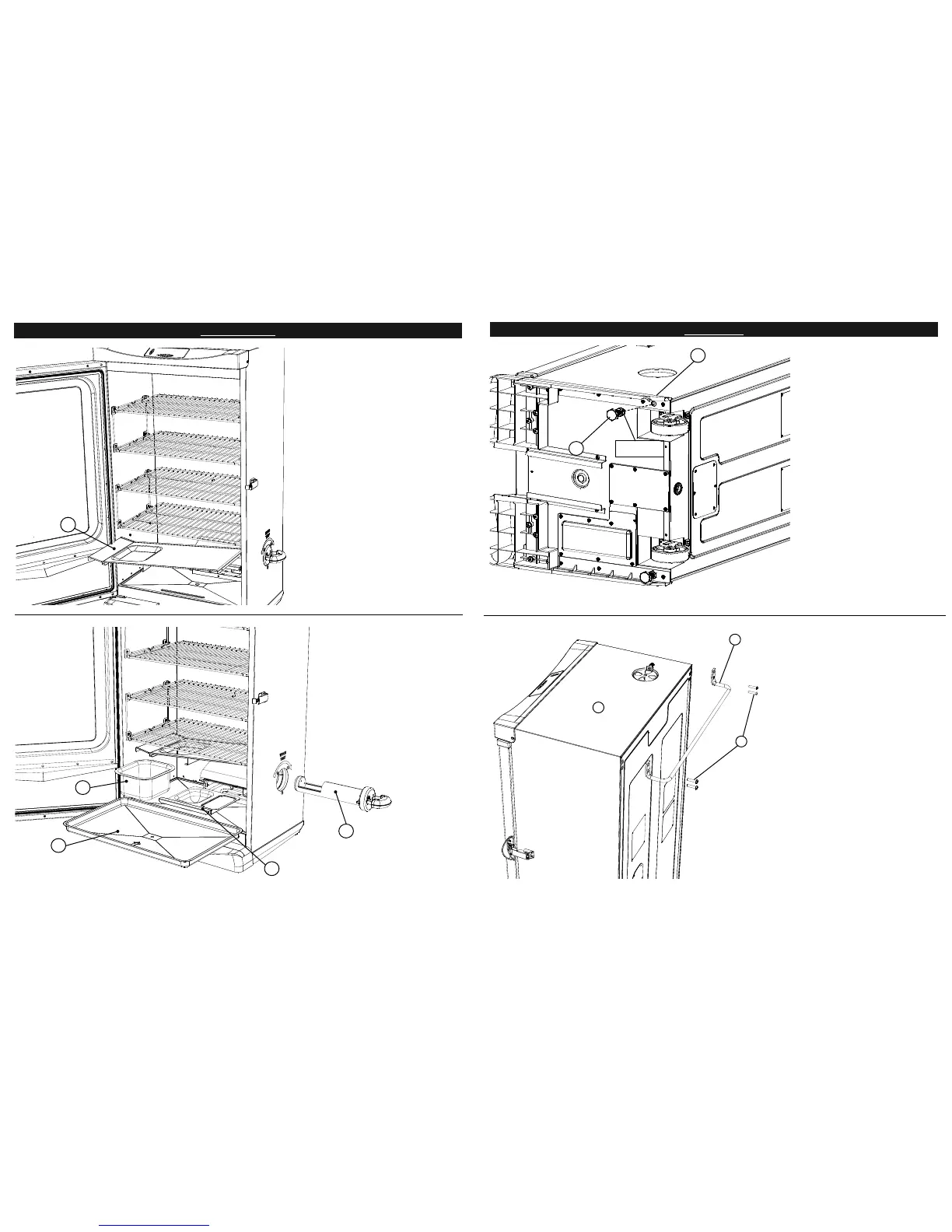

Alinee los orifi cios guía en el
defl ector de goteo (5) con tarugos
en la parte interior del cuerpo del
ahumador. Presione el defl ector
de goteo hacia abajo para asegu-
rarlo en su lugar.
PASO 12
Coloque el tazón de agua (8), la
bandeja de trozos de madera (9)
y la bandeja de goteo (10) dentro
del ahumador como se muestra.
Inserte el cargador de trozos de
madera (12) en la parte lateral del
ahumador.
El ensamblaje está completo.
12
5
9
8
10
8
ASSEMBLY
STEP 6
Carefully position smoker as
shown.
Attach rear handle (3) to back of
smoker body (1) using phillips
screws (A) as shown.
Note: Do not lift unit by rear handle.
STEP 5
Insert adjustable screw leg (11)
through bottom of side panel (23)
as shown, and into smoker body.
Repeat step on opposite side for
remaining adjustable screw leg.
Note: When unit is upright, set
adjustable screw leg height by
turning clockwise/counterclock-
wise, so that smoker is level.
Once level, secure leg positions
by tightening tension nuts.
TENSION NUT
23
11
1
3
A
