6

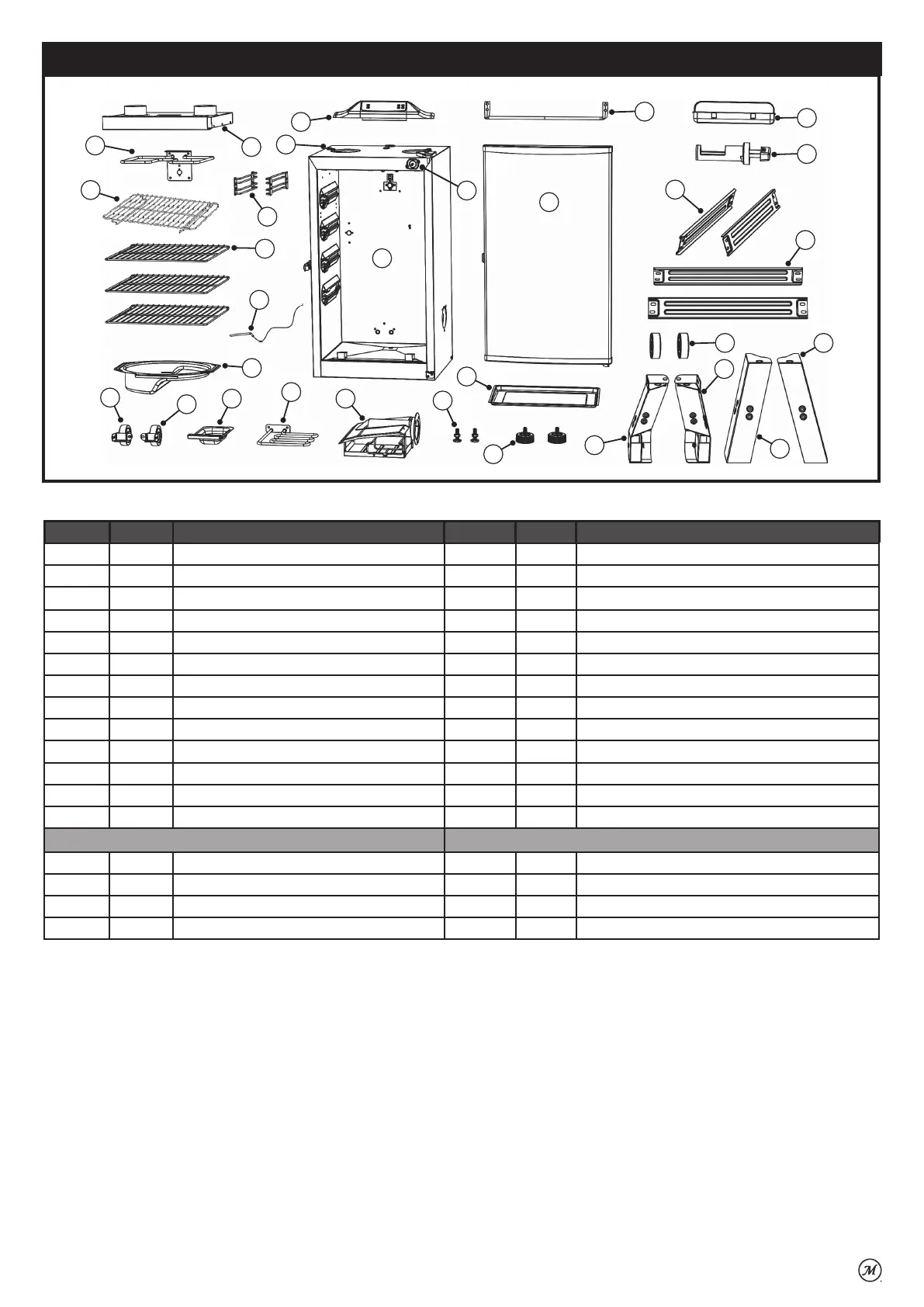

Parts List
NO QTY DESCRIPTION NO QTY DESCRIPTION
1 1 Smoker Body 14 1 Left Rear Wheel
2 1 Digital Control Panel 15 1 Right Rear Wheel
3 1 Water Bowl 16 1 Wood Chip Housing (preassembled)
4 1 Wood Chip Tray 17 1 Main Element (preassembled)
5 1 Drip Pan 18 1 Grill + Finish Element (preassembled)
6 3 Rack 19 1 Grill + Finish Heat Shield (preassembled)
7 1 Wood Chip Loader 20 2 Rack Support (preassembled)
8 1 Grease Tray 21 1 Meat Probe
9 2 Adjustable Screw Leg 22 1 Door Switch (preassembled)
10 2 Leg Boot 23 1 Notched Rack
11 2 Air Damper (preassembled) - - Non-stick Pan (sold seperately)
12 1 Door (preassembled) - - Disposable Pan (sold seperately)
13 1 Rear Handle
Models with legs Models with legs
24 2 Side Brace 28 1 Right Rear Leg
25 2 Cross Brace 29 1 Left Front Leg
26 2 Wheel 30 1 Right Front Leg
27 1 Left Rear Leg
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
24
25
26
27
28
29
30
21
22
15
23
