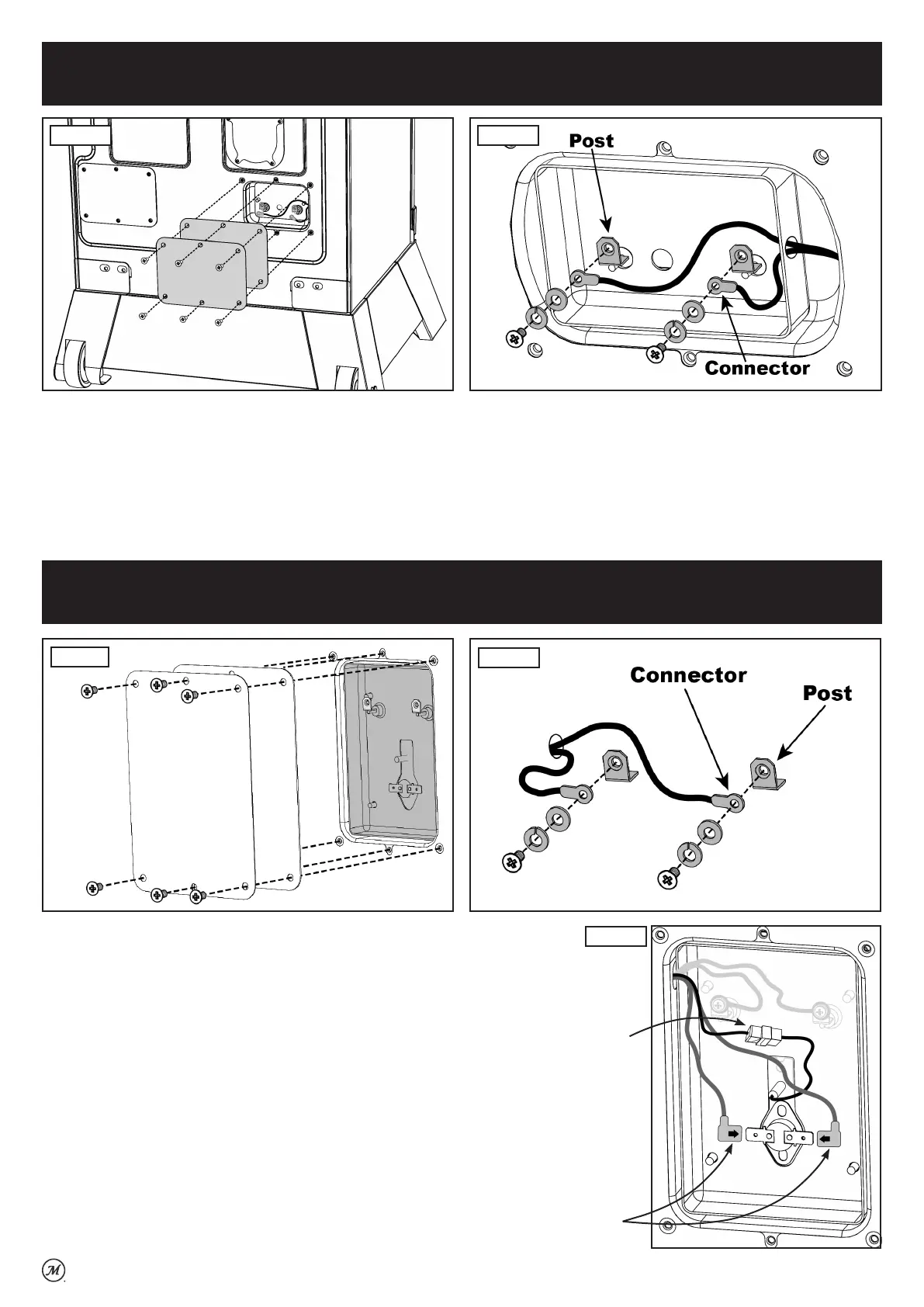

Main Element Access Instructions
Figure D1
Figure D2
To access main element:
• Turn the smoker off and unplug the smoker from power source.
• Remove the six (6) screws from main element access panel and then remove panel and rubber gasket. Fig D1.
• Carefully remove screw, spring washer, flat washer and connector from post. Fig D2.
To reassemble components:
• Confirm the smoker is powered off and not plugged into a power source.
• Follow removal steps in reverse order to reassemble smoker.
Tool needed for access: Phillips head screwdriver
Grill + Finish Element/Probe/HTL Access Instructions
To access main Grill + Finish Element (GFE):
• Turn the smoker off and unplug the smoker from power source.
•
Remove the six (6) screws from main GFE access panel and
then remove panel and rubber gasket. Fig 1.
• Carefully remove screw, spring washer, flat washer and connector
from post. Fig 2.
To access HTL and Temperature Probe:
• Turn the smoker off and unplug the smoker from power source.
•
Remove the six (6) screws from main GFE access panel and
then remove panel and rubber gasket. Fig 1.
• Check to make sure connections are secure. Fig 3.
To reassemble components:
• Confirm the smoker is powered off and not plugged
into a power source.
• Reassemble parts in reverse order.
Figure 1
Figure 2
Tool needed for access:
Phillips head screwdriver
Temperature Probe
Connection
High Temperature Limiter
(HTL) Connection
Figure 3
