14

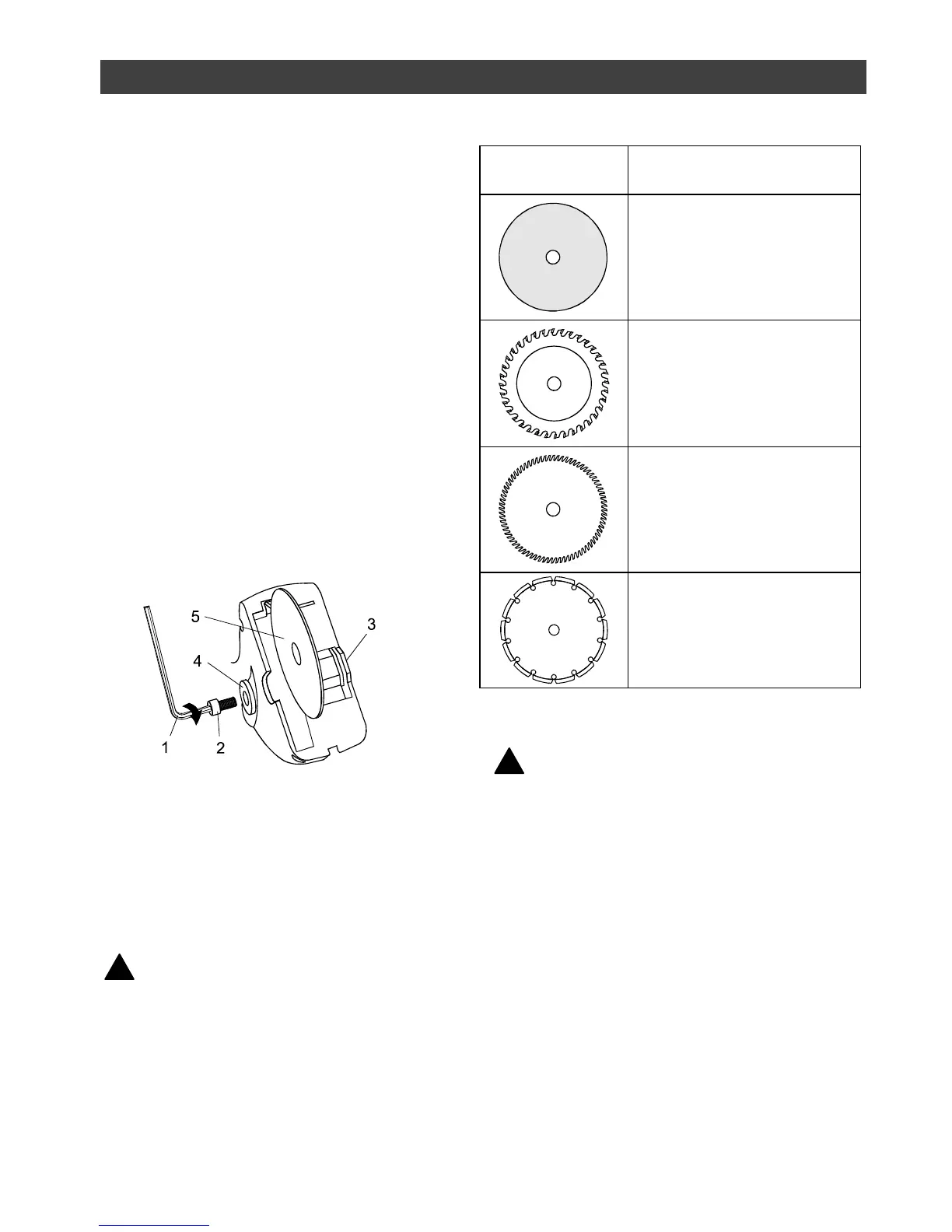

REMOVE BLADE – cont’d
2. Press inward on the spindle lock
button (3) which is located on the
RIGHT side of the tool.
3. Rotate the hex key CLOCKWISE while
pressing on the spindle lock button
until the spindle lock button engages
the spindle.
4. Continue to rotate the arbor screw in a
CLOCKWISE direction until the arbor
screw is removed and the thick arbor
washer (4) can be pulled off the arbor.
NOTE: The arbor screw has a left
hand thread. It must be turned
CLOCKWISE to be removed.
5. Remove the blade (5).
SELECT THE CORRECT BLADE
Before installing a blade into the tool, it is
important to select the correct blade for the
type of material being cut.
WARNING: Using the incorrect
blade type can result in damage to the
blade and possible injury to the
operator.
Blade
Profile
Description
Reinforced cutting disc
85 mm x 1.4 mm corundum
compound.
Cuts non-ferrous metal,
plastic & wood
Carbide tipped blade
85 mm x 1.7 mm x 24 teeth
85 mm x 1.7 mm x 36 teeth
Cuts aluminum, hardwood,
laminates, plastics
HSS Super cut blade
85 mm x 1.0 mm x 80 teeth
Cuts hardwood, soft wood &
plastics
Segmented diamond
blade
85 mm x 1.8 mm
Cuts ceramic and marble
tile, circuit boards &
fiberglass reinforced plastics
INSTALL BLADE
WARNING: Let hot hex nut cool
before attempting to change the blade.
1. Remove existing blade (if one is
installed), arbor screw and thick arbor
washer as noted above.
2. Slide blade (5) into the tool so the hole
in the blade (6) slides over the arbor
(see Fig. 5).
NOTE: Make sure the exposed teeth
of a blade with teeth are pointing
forward.
3. Re-install thick arbor washer and arbor
screw in the reverse order in which
they were removed.
ASSEMBLY AND OPERATION – MULTI-CUTTER
!
!
Fig. 4
