HEAT GUN 054-1252-6
HEAT GUN 054-1252-6

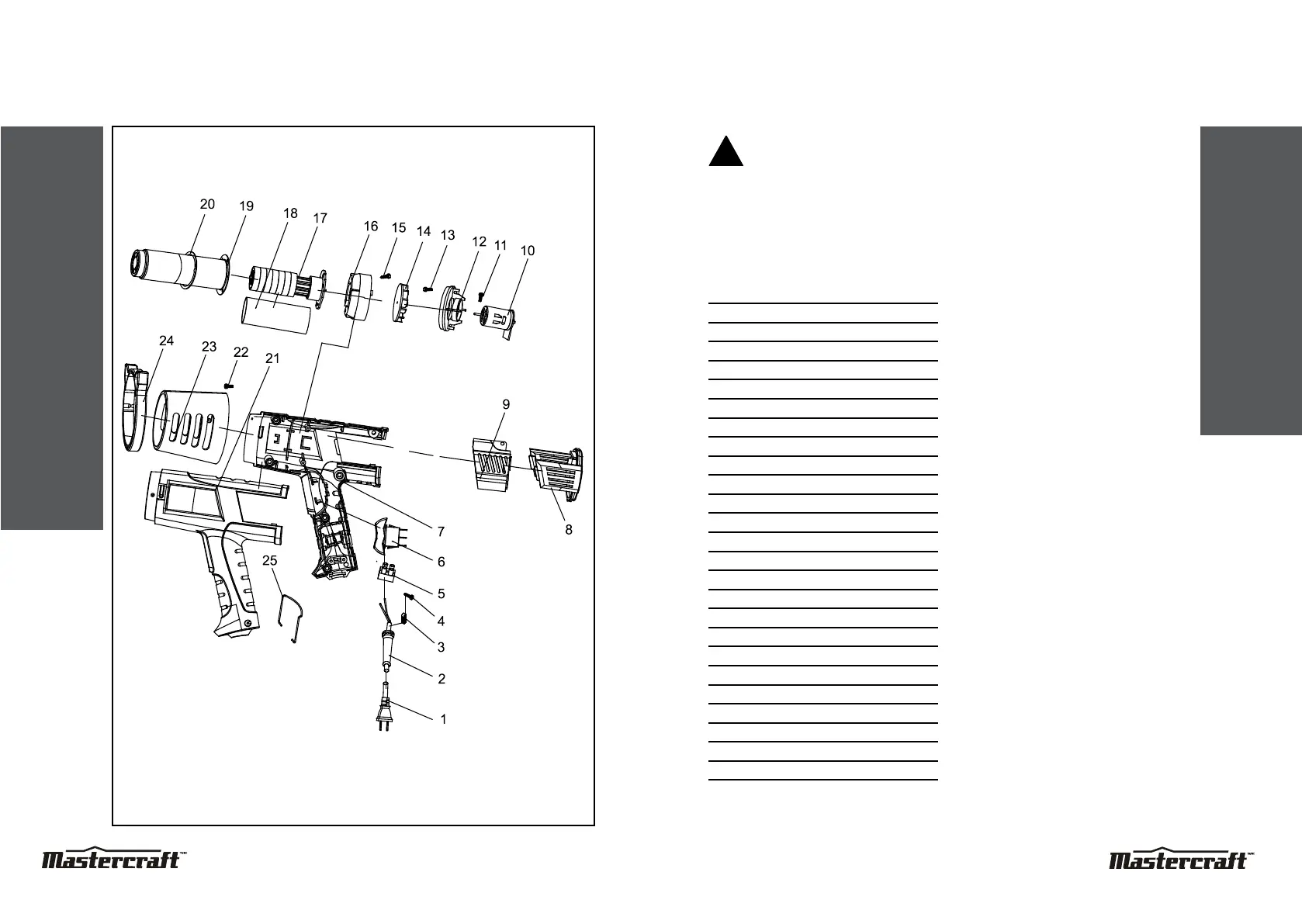

EXPLODED VIEW
WARNING: When servicing, use only Mastercraft
®
replacement parts. The use of any
other parts may create a safety hazard or cause damage to the heat gun.
Any attempt to repair or replace electrical parts on this heat gun may create a safety hazard unless
repairs are performed by a qualied technician. For more information, call the Toll-free Helpline, at
1-800-689-9928.
Always order by PART NUMBER, not by key number.
Key # Part # Part Name Qty
1 160213 Cord 1
2 322024 Cord strain relief 1
3 315003 Cord clamp 1
4 500201 Screw ST3.9×14 2
5 153520 Termination plate 1
6 163735 Switch 1
7 300133 Motor housing 1
8 312210 Back housing 1
9 315952 Inner housing 1
10 130042 Motor 1
11 500006 Screw ST2.9×12 2
12 315946 Motor holder assembly 1
13 500860 Screw M2.5×5 2
14 314051 Fan 1
15 300133 Screw ST2.9×7 3
16 315947 Air concentrator 1
17 146815 Ceramic support 1
18 Mica paper 1
19 146814 Air duct 1
20 216045 Insulating gasket 1
21 300133 Motor housing 1
22 500200 Screw ST3.9×19 6
23 315953 Guard 1
24 162889 Rest 1
25 242582 Hanging loop 1
PARTS LIST
