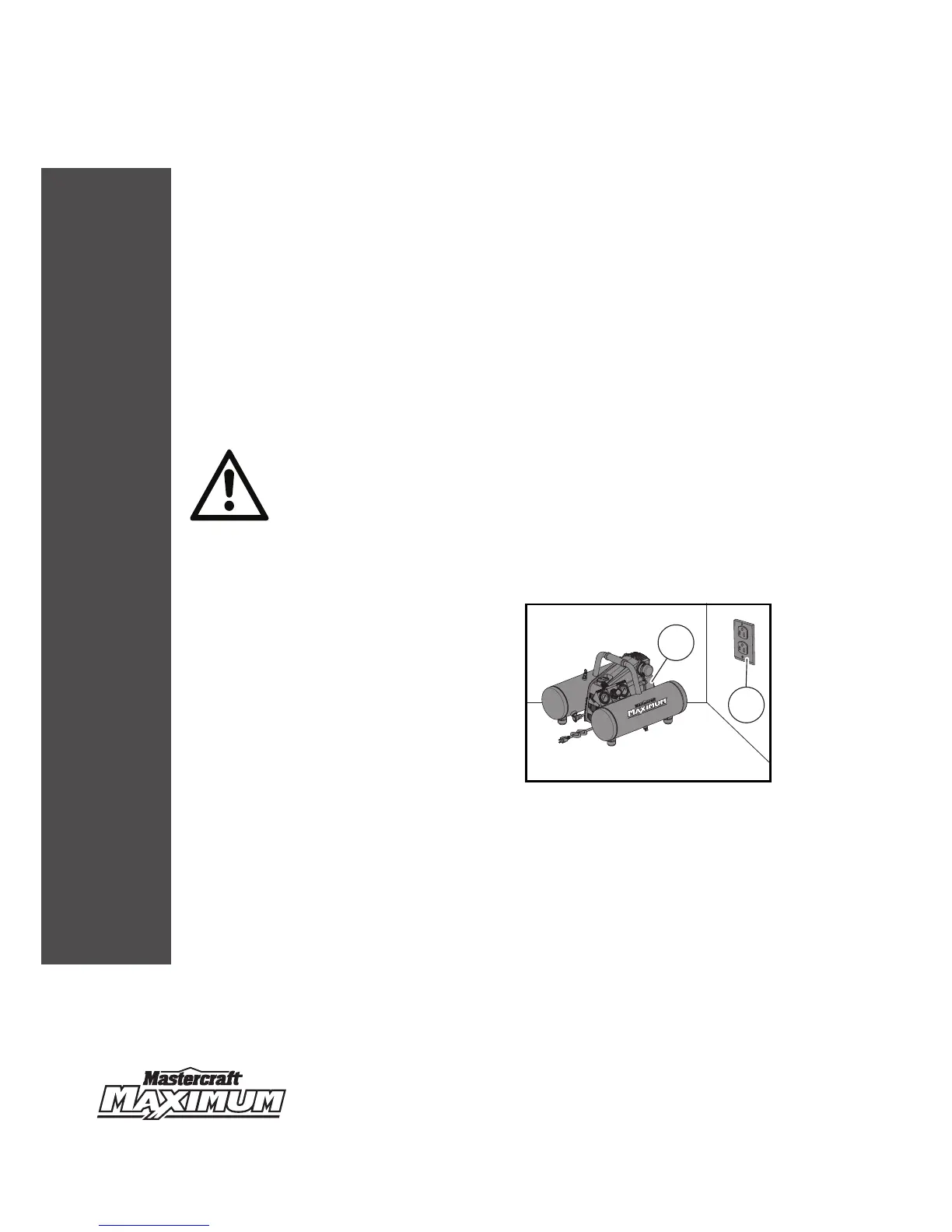

ASSEMBLY INSTRUCTIONS
13
5 U.S. GALLONS (18.9 L) AIR COMPRESSOR 058-9308-0
Before assembly
Unpack the carton and take out the air compressor. Make sure all parts are present. Inspect
the unit for damage.
If any part is missing or damaged, do not attempt to assemble the product. Contact customer
service for replacement parts.
Complete a damage claim for replacement parts immediately as there is time limitation.
Check the compressor’s serial label to ensure that the correct model was received, and that it
has the required pressure rating (120/150 PSI) for its intended use.
Assembly of the compressor
1. Place the compressor (1) on a flat, even,
concrete floor surface or separate
concrete foundation in a clean,
well-ventilated area
(fig A)
.
Note: Make sure the compressor is placed on a
flat surface to ensure proper drainage of the
moisture in the tank.
2. Locate the compressor near a grounded
electrical outlet (2)
(fig A)
.
Note: During cold weather, store the
compressor in a heated place when not in use.
This will reduce motor starting problems and
freezing of water condensation.
CAUTION!
Potential hazard that may result in moderate injury or damage to
equipment.
To avoid damaging the motor, do not use the compressor in areas
containing dust particles.
