MasterCraft 054-1254-2 User Manual

MAINTENANCE
19
5 U.S. GALLONS (18.9 L) AIR COMPRESSOR 058-9308-0
Checking the safety relief valve
1. Turn ON the power supply to the compressor and allow the motor to run until cut-off pressure
is reached.
2. Pull the relief valve ring to check whether it is operating properly and to clear possible
obstructions of the valve.
3. Replace the safety relief valve if it does not release pressure when pulling the ring
.
Replacing the air filter
After continuous use of the compressor, the air
filter may get clogged. This will reduce the air
intake capacity of the compressor
. Therefore it
is necessary to replace the air filter.
1. Turn OFF the power supply to the
compressor
.
2. Remove the old air filter (1) from the
motor head
(fig L).
3. Install new air filter.
CAUTION!
Potential hazard that may result in moderate injury or damage to
equipment.
• Wear safety glasses when opening the drain valves and pulling the safety
valve ring, as the air and moisture released from the tank can propel debris
that may cause eye injury.
• Do not direct the fast moving air from the tank toward your face.
• If the safety relief valve does not work properly, over-pressurization may
occur, thereby causing air tank rupture or explosion.
MC-589308-14

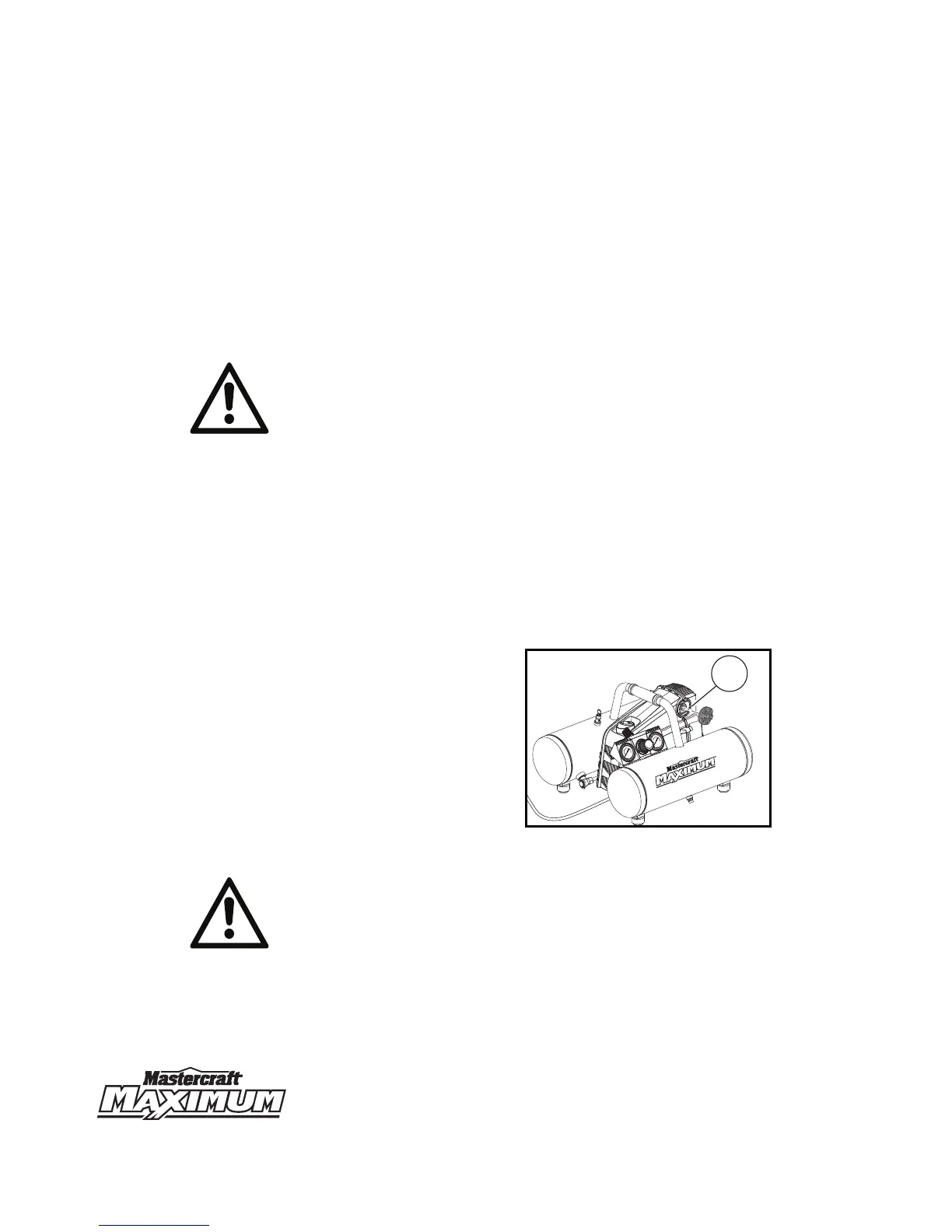

fig L
0
0
50
25
0
75
125
18
15
10
5
100
150
175
200
225
250
1
0
25
0
5
10
15
20
50
75
100
125
150
175
200
225
250
CAUTION!
Potential hazard that may result in moderate injury or damage to
equipment.
• Make sure the filter is free from dirt or paint. Direct exposure of the filter to
dirty conditions or painting areas will void warranty. Replace it immediately.
