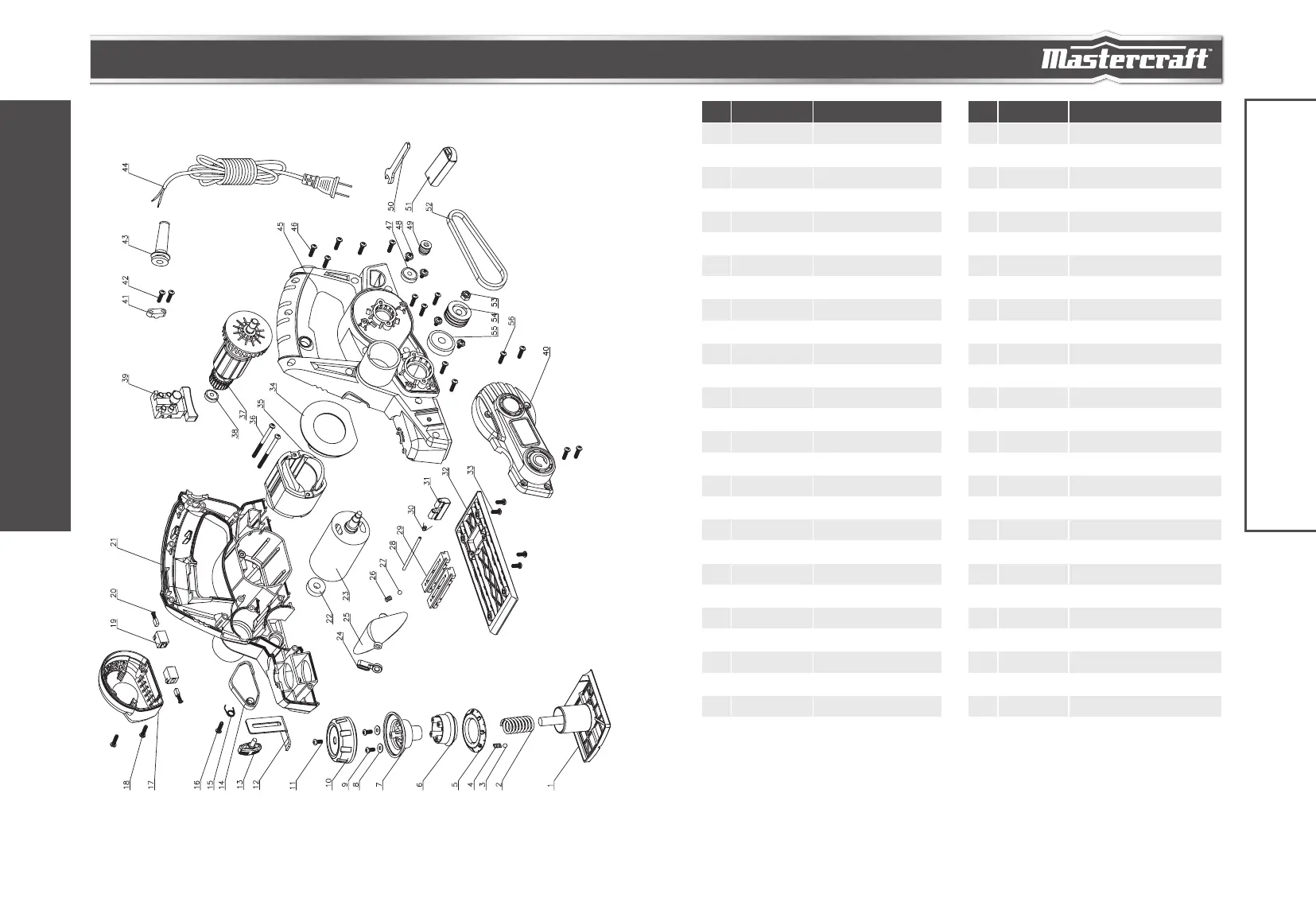

EXPLODED VIEW
PART LIST
No. Part No. Description No. Part No. Description
1 054660201 Front Sole Plate 29 054660229 Backplane Positioning Bar
2 054660202 Big Spring 30 054660230 Spring
3 054660203 Steel Ball 31 054660231 Support
4 054660204 Spring 32 054660232 Backplane
5 054660205 Scale 33 054660233 Screw
6 054660206 Scale Support 34 054660234 Fari Baffel
7 054660207 Knob Base 35 054660235 Stator
8 054660208 Washer 36 054660236 Screw
9 054660209 Screw 37 054660237 Rotor
10 054660210 Knob Cover 38 054660238 Bearing
11 054660211 Screw 39 054660239 Switch
12 054660212 Depth Fence 40 054660240 Belt Cover
13 054660213 Knob 41 054660241 Cord Clamp
14 054660214 Blade Guard 42 054660242 Screw
15 054660215 Spring 43 054660243 Cord Guard
16 054660216 Screw 44 054660244 Cord Set
17 054660217 Motor Cover 45 054660245 Left Housing
18 054660218 Screw 46 054660246 Screw
19 054660219 Brush Holder 47 054660247 Bearing
20 054660220 Brush 48 054660248 Screw
21 054660221 Right Housing 49 054660249 Driven Doller
22 054660222 Bearing 50 054660250 Spanner
23 054660223 Blade Body Assembly 51 054660251 Canister
24 054660224 Spanner 52 054660252 Belt
25 054660225 Switching Plate 53 054660253 Nut
26 054660226 Spring 54 054660254 Driving
27 054660227 Steel Ball 55 054660255 Bearing
28 054660228 Pin 56 054660256 Screw
If any parts are missing or damaged, or if you have any questions, please call the Toll-free Helpline,
at 1-800-689-9928.
PART LIST

MasterCraft 054-6602-4 Specifications

General

Brand	MasterCraft
Model	054-6602-4
Category	Planer
Language	English
