model no. 054-6602-4 | contact us 1.800.689.9928
14
SETTING THE RABBETTING DEPTH
1. Loosen rabbetting depth-stop locking nut and set the desired rabbet depth by aligning the depth scale on
the rabbetting depth stop with the indicator line.
2. Securely tighten locking nut.

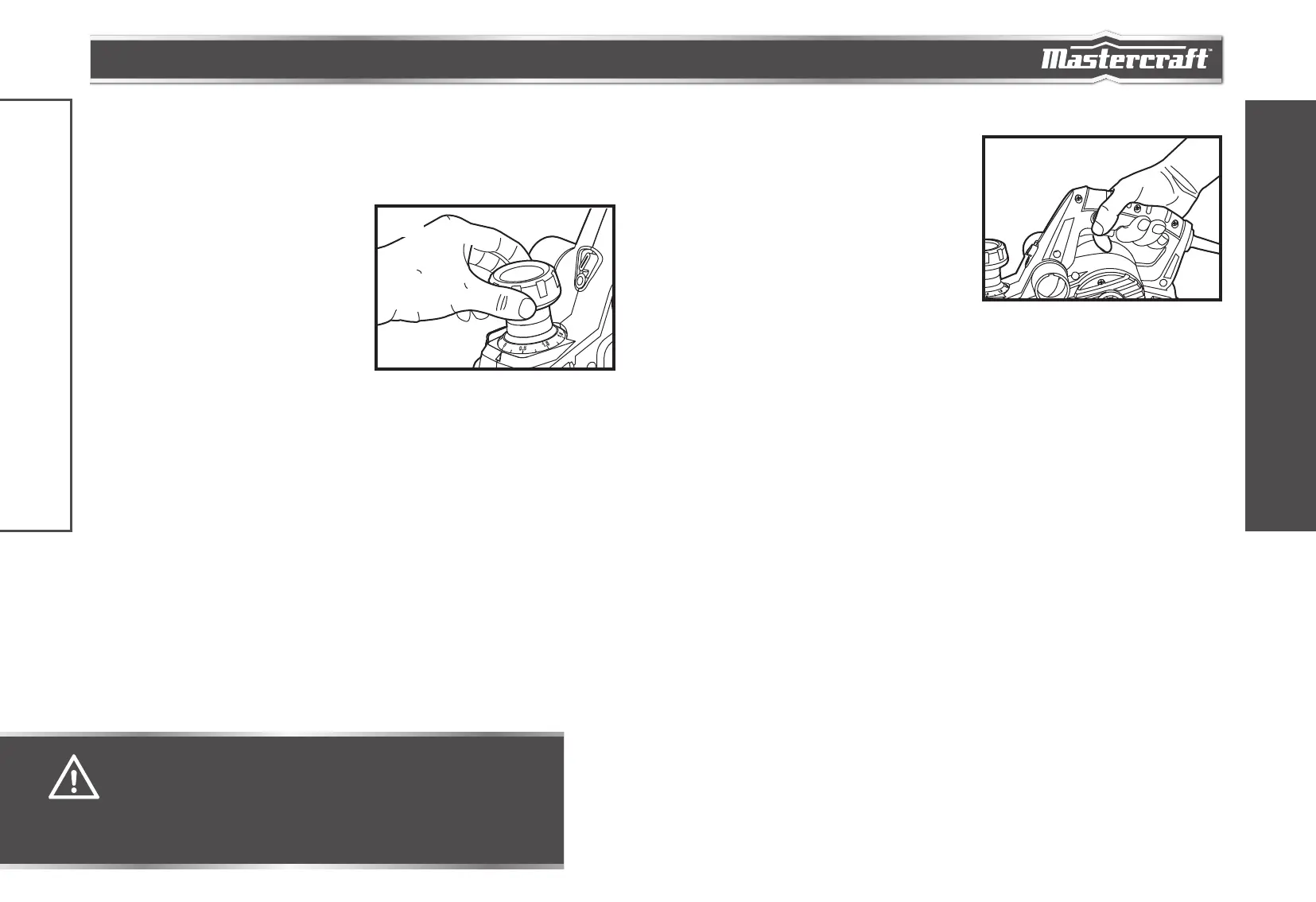

ADJUSTING THE DEPTH OF CUT
(fig 9)
The proper cutting depth should be determined
according to the hardness, gumminess or moisture
content of the material being cut, as well as the feed
rate, and is largely a matter of experience. Rotate the
depth adjustment knob clockwise for a deeper cut and
counterclockwise for a shallower cut.
The numbers on the ring under the depth adjustment
knob indicate the depth of cut, e.g., when 1 mm is next
to the pointer on the front of the planer, the depth of cut
is approximately 1 mm.
If it is necessary to accurately determine the depth of cut, plane a scrap piece of wood, measure the difference
in thickness and adjust the setting.
OPERATING INSTRUCTIONS
SWITCHING ON AND OFF
(fig 10)
1. Connect the power cord of your planer to a standard
household power outlet.
2. To turn the planer ON, hold the tool with both hands,
push in the lock-off button first, and then press the
on/off trigger switch.
3. To turn the planer OFF, release the trigger switch.
fig 10
ASSEMBLY INSTRUCTIONS
OPERATING INSTRUCTIONS
WARNING!
• Always ensure that the tool is switched OFF and unplugged from the power supply before
making adjustments.
CAUTION!
• Always set the depth adjustment knob at the “P” position when the tool is not in use. This
retracts the planer blade, allowing the power tool to be placed down without the danger of
causing damage to the workpiece or the planer blade.
fig 9
