WARNING!
• Do not hold the body of the chuck with one hand while using the power of the drill/driver to tighten the
jaws of the chuck on the drill bit. The body of the chuck could slip in your hand, or your hand could slip and
come into contact with the rotating bit. This could cause an accident and result in serious personal injury.
• Be sure to insert the drill bit straight into the jaws of the chuck. Do not tighten the jaws of the chuck with
the drill bit inserted at an angle, as shown in fig 12. Doing so could cause the drill bit to be thrown from the
drill/driver, which could result in possibly serious personal injury or damage to the chuck.
• Use protective gloves when removing the bit from the tool, or first allow the bit to cool down. The bit may
be hot after prolonged use.
OPERATING INSTRUCTIONS
INSTALLING A BIT
(fig 11, 12)
1. Lock the trigger switch by placing the direction-of-
rotation selector in the OFF (centre) position.
2. Rotate the chuck in the “RELEASE” direction to open
the jaws of the chuck.
3. Insert the drill bit. Be sure to insert the drill bit
straight into the chuck jaws.
4. Rotate the chuck in the “GRIP” direction to tighten
the jaws of the chuck securely on the bit.
REMOVING A BIT (
fig 11)
1. Lock the trigger switch by placing the direction-of-
rotation selector in the OFF (centre) position.
2. Open the jaws of the chuck (rotate in the “RELEASE”
direction.)
3. Remove the drill bit.

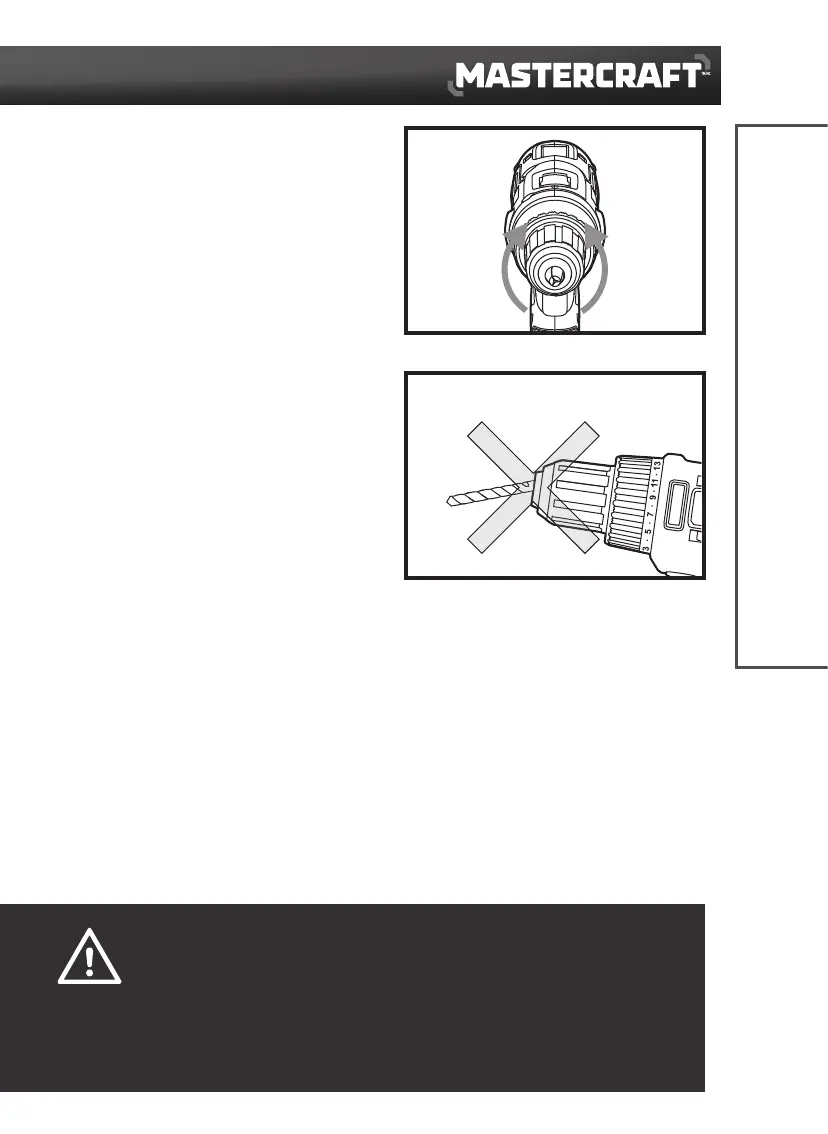

fig 12
fig 11
GRIP
RELEASE
