OPERATING INSTRUCTIONS
TO ATTACH BATTERY PACK
(fig 1)
1. Lock the variable-speed trigger switch on the
impact driver by placing the direction-of-rotation
selector (forward/ centre-lock/reverse) in the
centre position.
2. Align the raised rib on the battery pack with the
grooves of the impact driver, and then attach the
battery pack to the impact driver.
3. Make sure that the latch on the battery pack
snaps into place, and that the battery pack is attached securely to the tool before beginning
operation.
TO DETACH THE BATTERY PACK
(fig 1)
1. Lock the variable-speed trigger switch on the impact driver by placing the direction-of-rotation selector
(forward/centre-lock/reverse) in the centre position.
2. Depress the battery-release button located on the front of the battery pack to release the battery pack.
3. Pull the battery pack out and remove it from the tool.
OPERATING INSTRUCTIONS

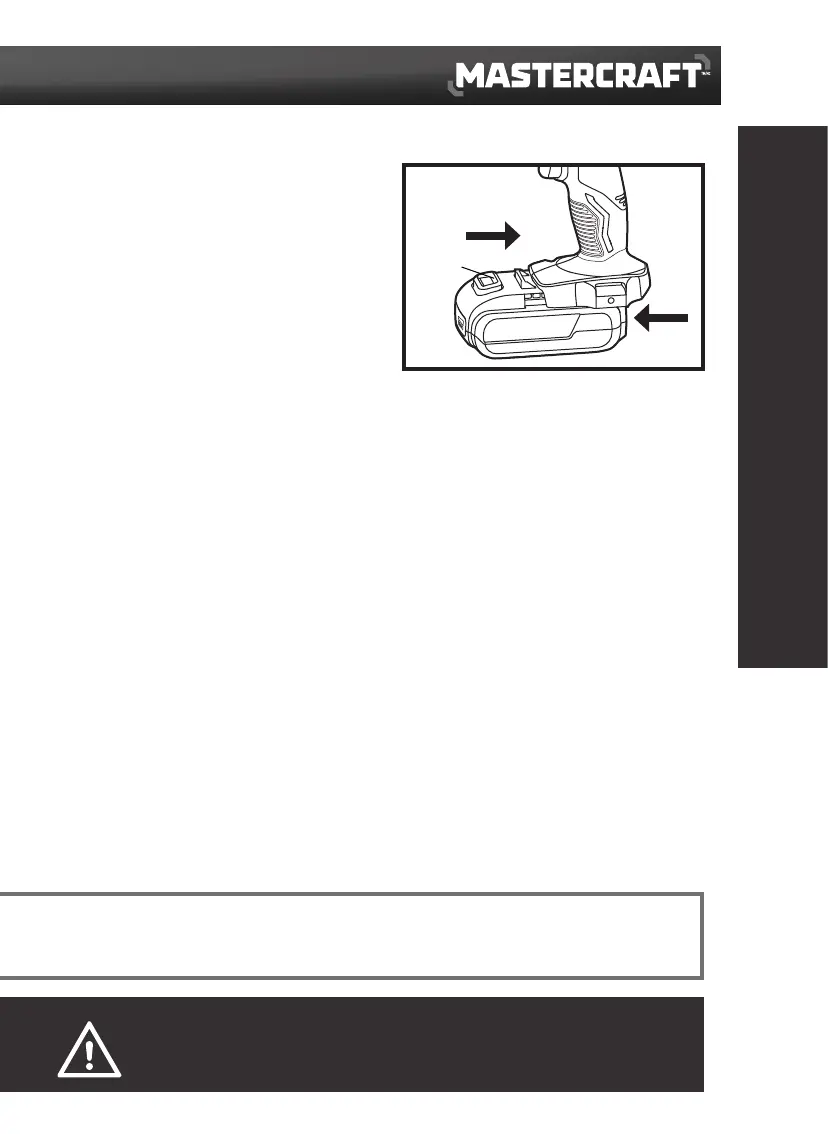

fig 1
Battery-release
button
ATTACH
DETACH
NOTICE: When placing a battery pack on the tool, be sure that the raised rib on the battery pack aligns with the groove on
the cordless impact driver and the latches snap into place properly. Improper assembly of the battery pack can cause damage to
internal components.
WARNING!
To avoid the possibility of accidental starting, always take care not to activate the variable-speed trigger
switch when you are attaching the battery pack or performing other adjustments to the tool.
