model no. 054-7520-2 | contact us 1-800-689-9928
22
PARTS LIST

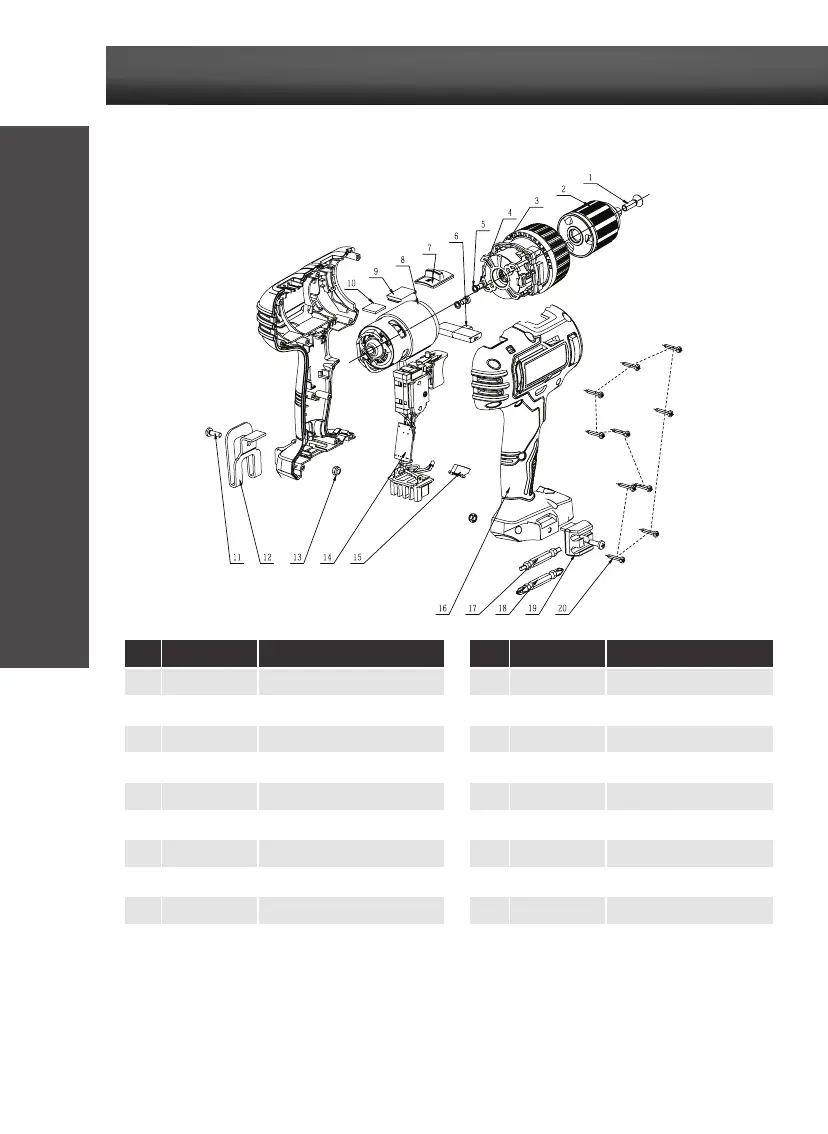

EXPLODED VIEW
No. Part No. Description No. Part No. Description
1 5620488000 Screw (L.H.) 11 5620040000 Screw
2 3860144000 Chuck 12 3705301000 Hook
3 2790452000 Gear Case Assembly 13 5630231000 Nut
4 5620183000 Screw 14 2830352000 Electric Assembly
5 5650007000 Spring Washer 15 3126500000 LED Cover
6 3127732000 F/R Button 16 3900066000 L R Housing Set
7 3129851000 Speed Change Button 17 3810405000 Screw Bits
8 2826207000 Motor and Gear Assembly 18 3810461000 Screw Bit
9 3706708000 Cover 19 3321321000 Bit Holder
10 3680212000 Magnetic Shoe 20 5610241000 Screw
If any parts are missing or damaged, or if you have any questions, please call the toll-free helpline at
1-800-689-9928.
