MasterCraft 054-8223-4 User Manual

ORBITAL JIGSAW WITH LASER LINE - 054-8223-4ORBITAL JIGSAW WITH LASER LINE - 054-8223-4
23 24

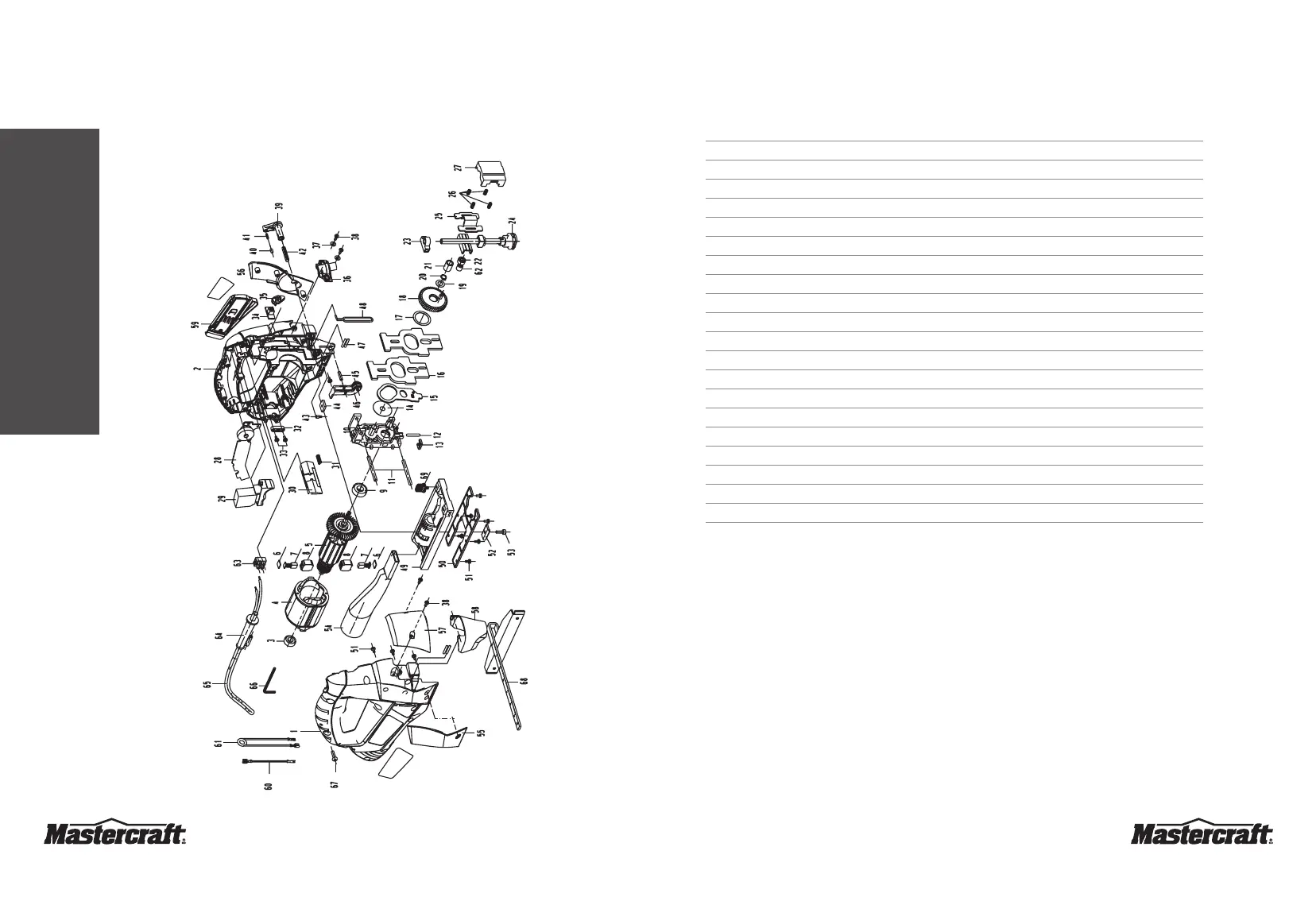

Exploded View
No. PartNo. Description No. PartNo. Description
1 3320466000 Right Housing Assembly 21 5700029000 Needle Bearing
2 3320467000 Left Housing Assembly 22 3550214000 Crank Roller
3 5700004000 Ball Bearing 23 3520048000 Upper Sliding Bearing
4 2740103000 Stator 24 2820552000 Plunger Assembly
5 2750835000 Rotor 25 3700186000 Clamp
6 3700491000 Flash Board 26 3660030000 Spring
7 4960015000 Carbon Brush 27 3120434000 Break
8 2800015000 Brush Holder 28 4900032000 Speed Adjustor
9 5700011000 Ball Bearing 29 4870021000 Switch
10 2820557000 Bearing Support Assembly 30 3120516000 Lock Button
11 3550176000 Located Pin 31 3660075000 Spring
12 3550219000 Pendulum Pin 32 3120234000 Cord Anchorage
13 3520062000 Limiting Piece 33 5610024000 Tapping Screw
14 3700184000 Washer D 34 2820099000 PCB Assembly
15 3700240000 Pendulum Plate 35 3320111000 Switch Button
16 3700238000 Counterweight 36 2780030000 Laser Set
17 3700181000 Washer A 37 5650006000 Plain Washer
18 2822243000 Gear Set 38 5610021000 Tapping Screw
19 3700183000 Washer C 39 3120515000 Pendulum Lever
20 5660007000 Circlips For Shaft 40 3700191000 Cap
Ifanypartsaremissingordamaged,orifyouhaveanyquestions,
pleasecalltheToll-freeHelpline,at1-800-689-9928.
PARTS LIST PARTS LIST
