ORBITAL JIGSAW WITH LASER LINE - 054-8223-4ORBITAL JIGSAW WITH LASER LINE - 054-8223-4
9 10

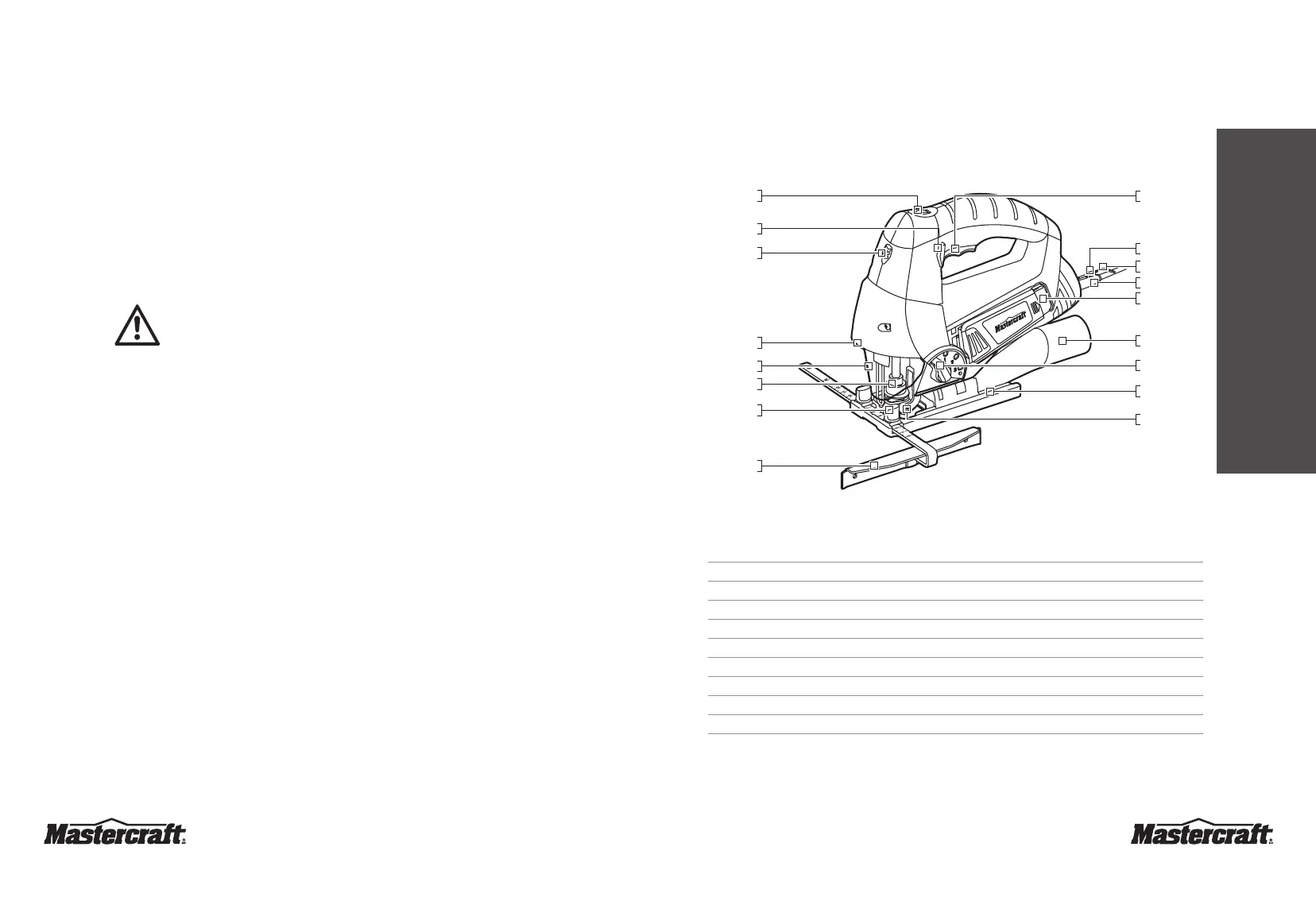

Know your orbital jigsaw with laser line
8
1
2
3
4
5
7
6
16
14
12
11
10
13
15
17
9
No. Description No. Description
1 Variable speed switch 10 Hex key storage
2 “Lock-on” button 11 Hex key
3 Laser line on/off switch 12 Cord guard
4 Laser aperture 13 Saw blade storage
5 Blade guard/chip deflector 14 Vacuum adaptor
6 Slot for blade assembly 15 4-position selection lever
7 Straight-edge guide locking knob 16 Tilting shoe
8 Straight-edge guide 17 Blade roller guide
9 Trigger switch
Package contents
Jig saw, wood-cutting blade, hex wrench, straight edge guide, dust port, instruction manual
• Nevercutmorethanonepieceatatime.Donotstackmorethanoneworkpieceonthe
worktableatatime.
• Avoidawkwardoperationsandhandpositionswhereasuddenslipcouldcauseyour
handtomoveintotheblade.
• Neverreachintothecuttingpathoftheblade.
• Bladeguiderollersmustsupportthebladewhencutting.Therollersmustrestagainstthe
backedgeoftheblade.The only cutting operation where rollers do not support the blade is the
scrolling mode. When scrolling, the blade must swivel as it is guided to follow scroll patterns. Always
move the base back and the blade guide up and back away from blade in scrolling mode.
WARNING!
To reduce the risk of injury, the user must read the Instruction Manual.
Applications
This jigsaw should only be used to cut wood, particle board and thin metal sheets. Use the hex key that
is stored in the hex key storage area to make adjustments to the shoe of the jigsaw or to install blades.
DESCRIPTION
SAFETY GUIDELINES
