model no. 054-8259-0 | contact us 1.800.689.9928
20

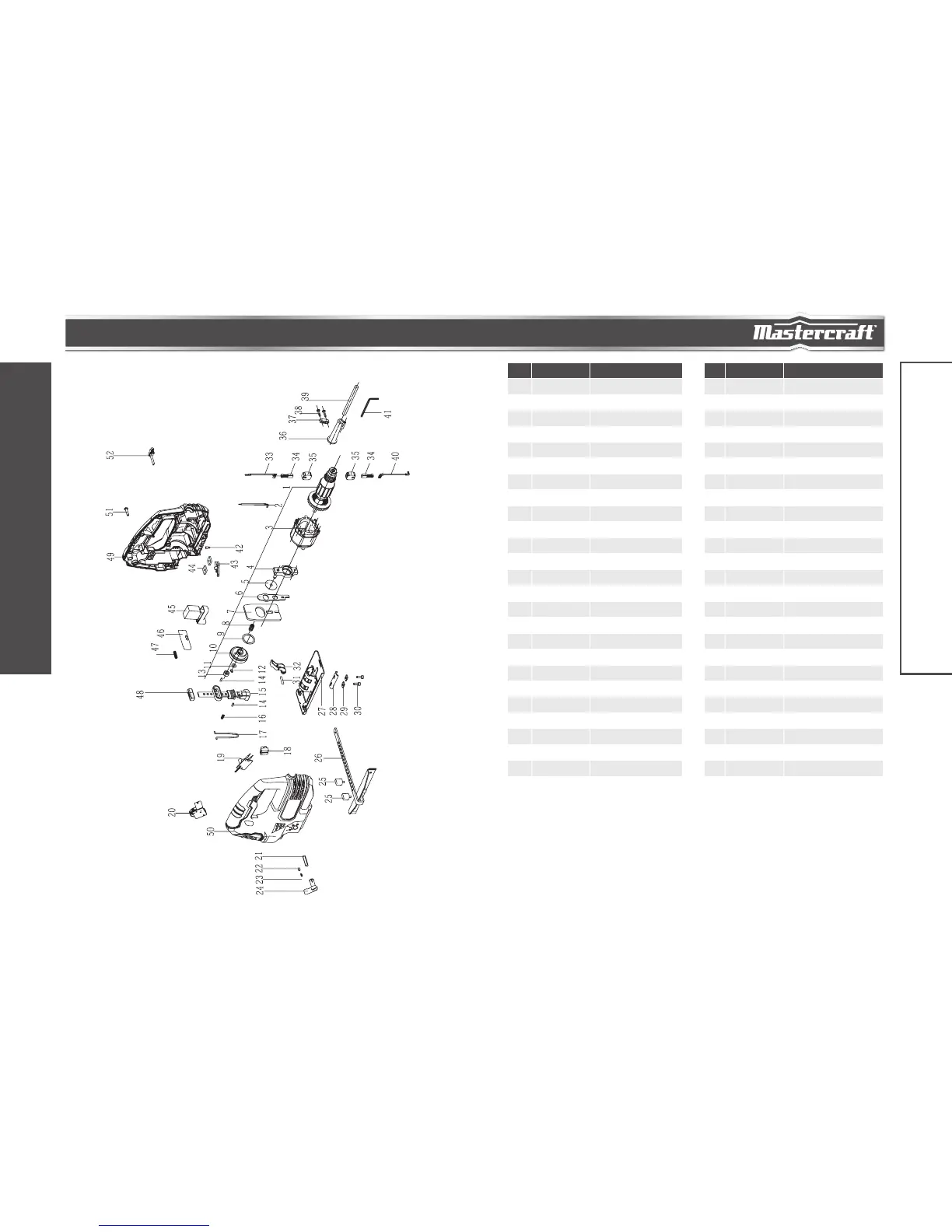

EXPLODED VIEW
No. Part No. Description No. Part No. Description
1 2750883000 Rotor 27 2821924000 Base Plate Assembly
2 2823927000 Internal Wire Assembly 28 3703598000 Clamp
3 2740103000 Stator 29 3700149000 Square Washer
4 2822537000 Bearing Support Assembly 30 5620011000 Hexagon Socket Screw
5 3700214000 Washer 31 3550177000 Guiding Roller Support Pin
6 3704216000 Pendulum Plate 32 2822532000 Roller Support Set
7 3704217000 Counterweight 33 2823942000 Internal Wire Assembly
8 5700184000 Needle Bearing 34 4960008000 Carbon Brush
9 3700181000 Washer A 35 2800018000 Brush Holder
10 2822554000 Gear Set 36 3121037000 Cord Guard
11 3700197000 Washer 37 3120234000 Cord Anchorage
12 5660004000 Circlips For Shaft 38 5610024000 Tapping Screw
13 3520415000 Crank Roller 39 4810002000 Power Cord & Plug
14 3550147000 Needle Pin 40 2823943000 Internal Wire Assembly
15 2822536000 Plunger Assembly 41 5680019000 Hexagon Wrench
16 3660060000 Spring 42 3550146000 Located Pin
17 3650008000 Wire Guard 43 3126385000 Blade Cover
18 4930004000 Connecter 44 3700164000 Square Nut
19 4890462000 PCB Assembly 45 4870475000 Trigger Switch
20 4900270000 Speed Adjustor 46 3126146000 Lock Button
21 3700237000 Pendulum Lever Shaft 47 3660057000 Spring
22 3700191000 Cap 48 3520427000 Upper Sliding Bearing
23 3660050000 Spring B 49 3321806000 Right Housing
24 3120507000 Pendulum Lever 50 3321807000 Left Housing
25 3400175000 Knob 51 5610042000 Tapping Screw
26 3700675000 Rip Fence 52 3126386000 Blow Switch
If any parts are missing or damaged, or if you have any questions, please call the Toll-free Helpline,
at 1-800-689-9928.
