PACKAGE CONTENTS
Orbital jigsaw, edge guide, hex key (installed on the tool), wood cutting blade and instruction manual.

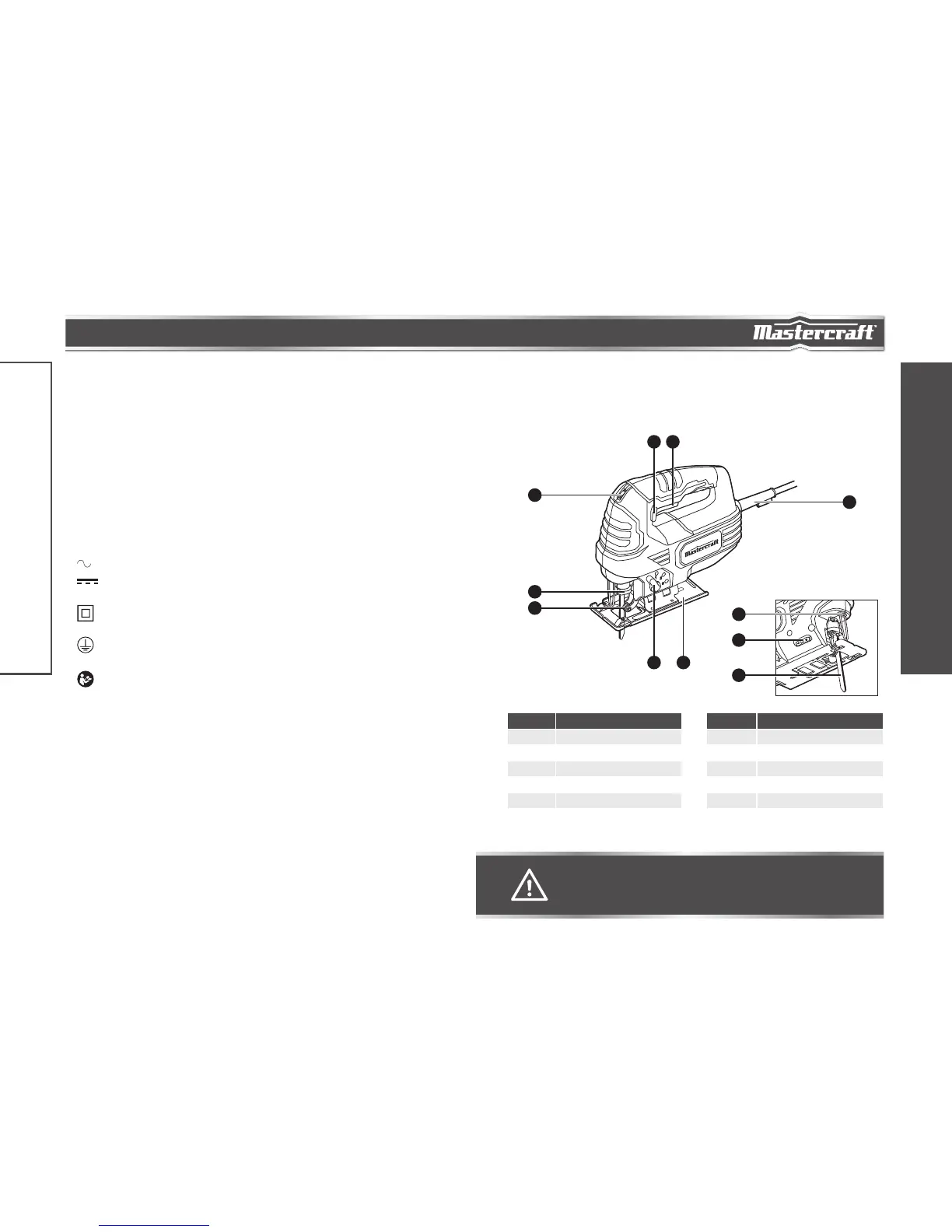

KEY PARTS DIAGRAM
6
3
8
9
10
7
12
4 5
11
No. Part No. Part
1 On/off trigger switch 7 Blade-guide roller
2 Lock-on button 8 LED worklight
3 Variable-speed dial 9 Dust blower switch
4 Orbital control lever 10 Blade
5 Shoe plate 11 Hex key storage
6 Tool-less blade clamp
SAFETY GUIDELINES FOR JIGSAW
• Holdthepowertoolbytheinsulatedgrippingsurfaceswhenperforminganoperationwherethe
cuttingaccessorymaycontacthiddenwiringoritsowncord.If a cutting accessory contacts a “live” wire,
it may make the exposed metal parts of the power tool “live” and could give the operator an electric shock.
• Useclampsoranotherpracticalwaytosupporttheworkpieceandsecureittoastableplatform.
Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
• Thelabelonyourtoolmayincludethefollowingsymbols.Thesymbolsandtheirdefinitionsare
asfollows:
V ..................... Volts
A ..................... Amperes
Hz ................... Hertz
W .................... Watts
min ................. Minutes
............... Alternating current
............. Direct current
n
0
................... No-load speed
............... Class II Construction
…/min ........... Revolutions or reciprocation per minute
............... Grounding terminal
BPM ............... Beats per minute
.............. WARNING – To reduce the risk of injury, user must read instruction manual.
• Thesawblademustbelockedinitsholdersecurely.Check that it had been securely seated before use.
• Securematerialbeforecutting.Never hold it in your hand or across legs.
• Nevertouchthesawbladeimmediatelyafteruse.It may be hot after prolonged use.
• Alwayswearsafetygogglesoreyeprotectionwhenusingthistool.Use a dust mask or respirator or
connect the tool to an external dust vacuum if the cutting generates a great amount of dust.
• Keephandsawayfromcuttingarea.Donotreachunderthematerialbeingcut.The proximity of
the blade to your hand is hidden from your sight.
• Donotusedullordamagedsawbladesandaccessories.
• Protectyourhearing.Wear appropriate personal hearing protection during use. Under some conditions
noise from this product may contribute to hearing loss.
• Inspectthetoolcordsperiodicallyandifdamagedhavethemrepairedbyaqualifiedservice
technician.BEAWAREofthecordlocation.
WARNING!
• Remove the jigsaw from the package and examine it carefully. Do not discard the carton or
any packaging material until all parts have been examined.
FPO
KEY PARTS DIAGRAM
SAFETY GUIDELINES
