model no. 058-9805-6 | contact us 1-800-689-9928
2322

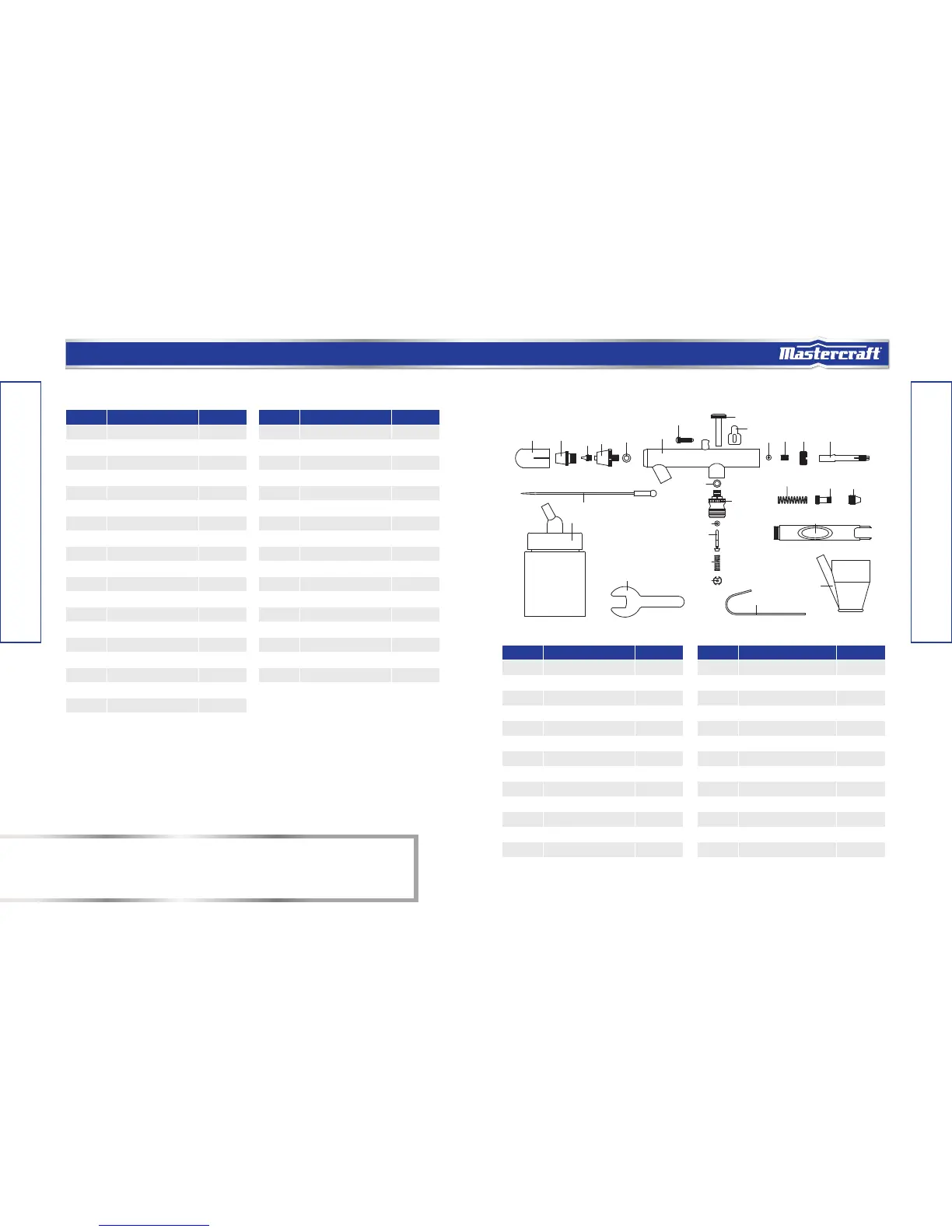

PARTS LIST
AIR BRUSH
No. Description Qty.
1 Screw 8
2 Read cover 1
3 Block 1
4 Rear body 1
5 Screw 4
6 Stationary motor 1
7 Bearing 2
8 Rotary motor 1
9 Front body 1
10 Counterweight 1
11 Manometer 1
12 Bearing 1
13 Retainer ring 1
14 Compression ring 1
15 Filter 1
16 Cylinder 1
17 Valve plate 1
18 Valve 1
19 Screw 1
No. Description Qty.
20 Front gasket 1
21 Front cover 1
22 Water drain valve 1
23 O-ring 1
24 Cylinder block 1
25 O-ring 1
26 Cylinder head 1
27 Cap screw 4
28 Filter valve 1
29 Handle 1
30 Pressure switch 1
31 Pressure regulator 1
32 Condenser 1
33 Power switch 1
34 Wire 1
35 Rubber pad 4
36 Locknut 1
37 Air outlet 2
No. Description Qty.
1 Protective cap 1
2 Air cap 1
3 Nozzle 1
4 Air cap body 1
5 O-ring 1
6 Packing 1
7 Packing nut 1
8 Housing 1
9 Adjustment screw 1
10 Finger lever 1
11 Rocker 1
12 Stopper 1
13 Needle chucking guide 1
14 Spring 1
No. Description Qty.
15 Spring case 1
16 Needle chucking nut 1
17 Handle 1
18 Needle 1
19 O-ring 1
20 Valve rod 1
21 O-ring 1
22 Spring 1
23 Valve screw 1
24 Valve body 1
25 Cup 5cc 1
26 Wrench 7mm 1
27 Air brush holder 1
28 Glass jar assembly 22cc 1
PARTS LIST
NOTE:
The manufacturer and/or distributor has provided the parts list and assembly diagram in this manual as a reference tool only. Neither the manufac-
turer or distributor makes any representation or warranty of any kind to the buyer that he or she is qualified to make any repairs to the product, or
that he or she is qualified to replace any parts of the product. In fact, the manufacturer and/or distributor expressly states that all repairs and parts
replacements should be undertaken by certified and licensed technicians, and not by the buyer. The buyer assumes all risk and liability arising out of
his or her repairs to the original product or replacement parts thereto, or arising out of his or her installation of replacement parts thereto.
17
18
4
3
6
2
1
19
9
10
8
11
22
23
28
25
26
27
5
24
16
7
14
12 13
15
21
20
AIR BRUSH COMPRESSOR
