model no. 058-9805-6 | contact us 1-800-689-9928
8

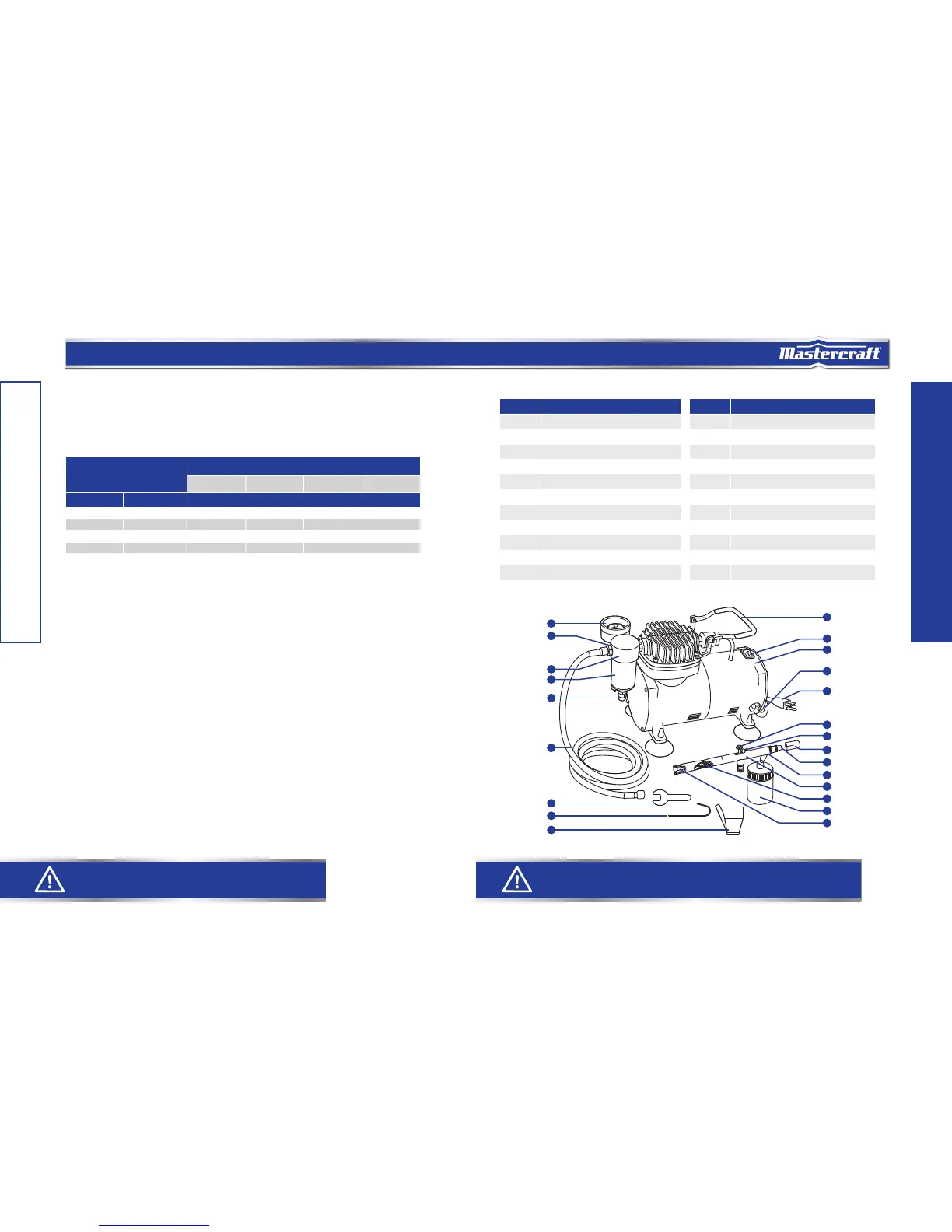

SAFETY GUIDELINES KEY PARTS DIAGRAM
KEY PARTS DIAGRAM
No. Description
A Air brush compressor
B Power switch
C Power cord
D Power cord plug
E Handle
F Air filter
G Filter cup
H Pressure gauge
I Water drain valve
J Air outlet
K Air hose (6 ft.)
L Air brush
No. Description
M Air brush nozzle
N Fluid needle
O Air brush housing
P Protective cover
Q Finger lever
R Adjustment screw
S Needle chucking nut
T Glass jar (22 cc)
U Metal cup (5 cc)
V Metal hook
W Wrench (7 mm)
E
B
A
C
D
L
M
P
R
Q
N
O
S
T
H
I
K
U
V
W
J
G
F
F
G
GUIDELINES FOR USING EXTENSION CORDS
Verify that the extension cord is in good condition. When using an extension cord, be sure to use one that
is heavy enough to carry the current that the tool will draw. An undersized cord will cause a drop in line
voltage, which will result in loss of power and overheating. The table below shows the correct size to use
according to cord length and the amperage rating on the tool’s nameplate. When in doubt, use the next
heavier gauge. The smaller the gauge number, the heavier the cord.
Verify that the extension cord is properly wired and in good condition. Always replace a damaged extension
cord, or have it repaired by a qualified electrician before using it. Keep extension cords away from sharp
objects, excessive heat, and damp or wet areas.
COMPRESSOR USE AND CARE SAFETY WARNINGS
• Do not use the compressor if the switch does not turn it on and off. Any compressor that cannot be
controlled with the switch is dangerous and must be repaired.
• Disconnecttheplugfromthepowersourcebeforemakinganyadjustments,changingaccessories,or
storing the compressor. Such preventive safety measures reduce the risk of starting the compressor
accidentally.
• Storeanidlecompressoroutofthereachofchildrenanddonotallowpersonsunfamiliarwiththe
compressor or these instructions to operate it. A compressor is dangerous in the hands of untrained
users.
• Maintainthecompressor.Keepthecompressorcleanforbetterandsaferperformance.Keepdry,clean
and free from oil and grease. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the compressor’s operation. If damaged, have the compressor
repaired before use. Many accidents are caused by a poorly maintained compressor.
• Usethecompressorinaccordancewiththeseinstructions,takingintoaccounttheworkingconditions
and the work to be performed. Use of the compressor for operations different from those intended
could result in a hazardous situation.
SERVICE SAFETY WARNINGS
• Have your compressor serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the compressor is maintained.
Amperage rating of the tool
(120 V circuit only)
Total length of the extension cord
25’ (7.6 m) 50’ (15.2 m) 100’ (30.4 m) 150’ (45.7 m)
More than Not more than Minimum gauge for the extension cord (AWG)
0 6 18 16 16 14
6 10 18 16
10 12 16 16
12 16 14 12
Do not use
Do not use
Do not use
WARNING!
This tool must be grounded while in use in order to protect the operator from electric shock.
WARNING!
If any part is missing or damaged, do not use the product until the missing or damaged part has been replaced.
