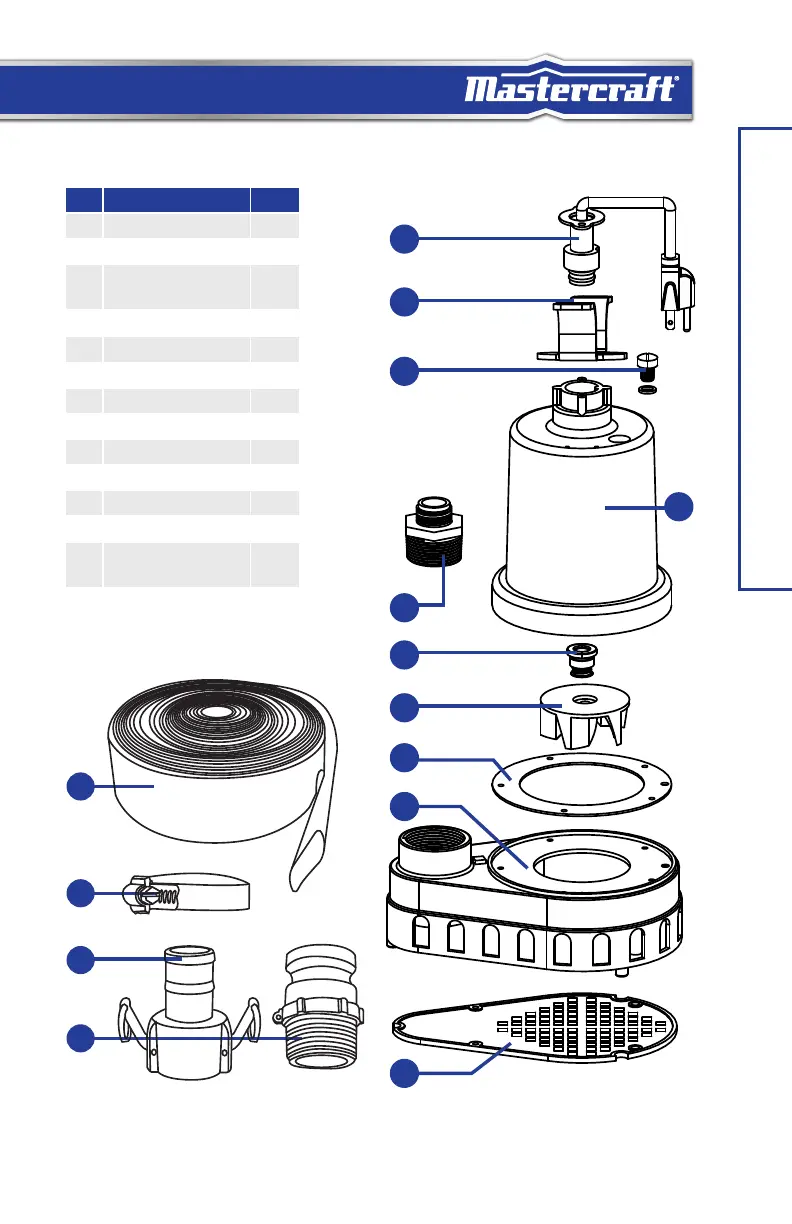

KEY PARTS DIAGRAM
PARTS LIST
No. Description Qty.
1 Power Cord 1
2 Handle 1
3 Oil Fill Plug with
O-Ring
1
4 GHT Adaptor 1
5 Shaft Seal 1
6 Impeller 1
7 Gasket 1
8 Base / Volute 1
9 Intake Screen 1
10 Motor* 1
11 Layflat Hose 1
12 Hose Clamp 1
13 Camlock Fitting
(Male)
1
14 Camlock Fitting
(Female)
1
*If motor fails, replace entire pump.
9
1
2
3
4
5
10
6
7
8
11
12
13
14
