TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Liquid temperature range 32 to 77°F (0 to 25°C)
Impeller Plastic
Discharge size 1 1/4” (3.2 cm) Female NPT
Seal Mechanical seal
Cord length 8’ (2.4 m)
Upper bearing Sleeve bearing
Lower bearing Sleeve bearing
Single phase Permanent split capacitor (PSC)
Motor protection Auto-reset thermal overload protection in motor
Construction material Steel for motor house; plastic for volute and impeller
Motor Squirrel cage induction, class B insulation
Maximum flow 1300 U.S. GPH (4921 L/hr)
Maximum head height 15’ (4.6 m)
Lift in feet/
metres
0’
(0 m)
5’
(1.5 m)
10’
(3 m)
15’
(4.6 m)
U.S. gallons/
litres per hour
1300
(4,921)
950
(3,598)
550
(2,083)
0
0

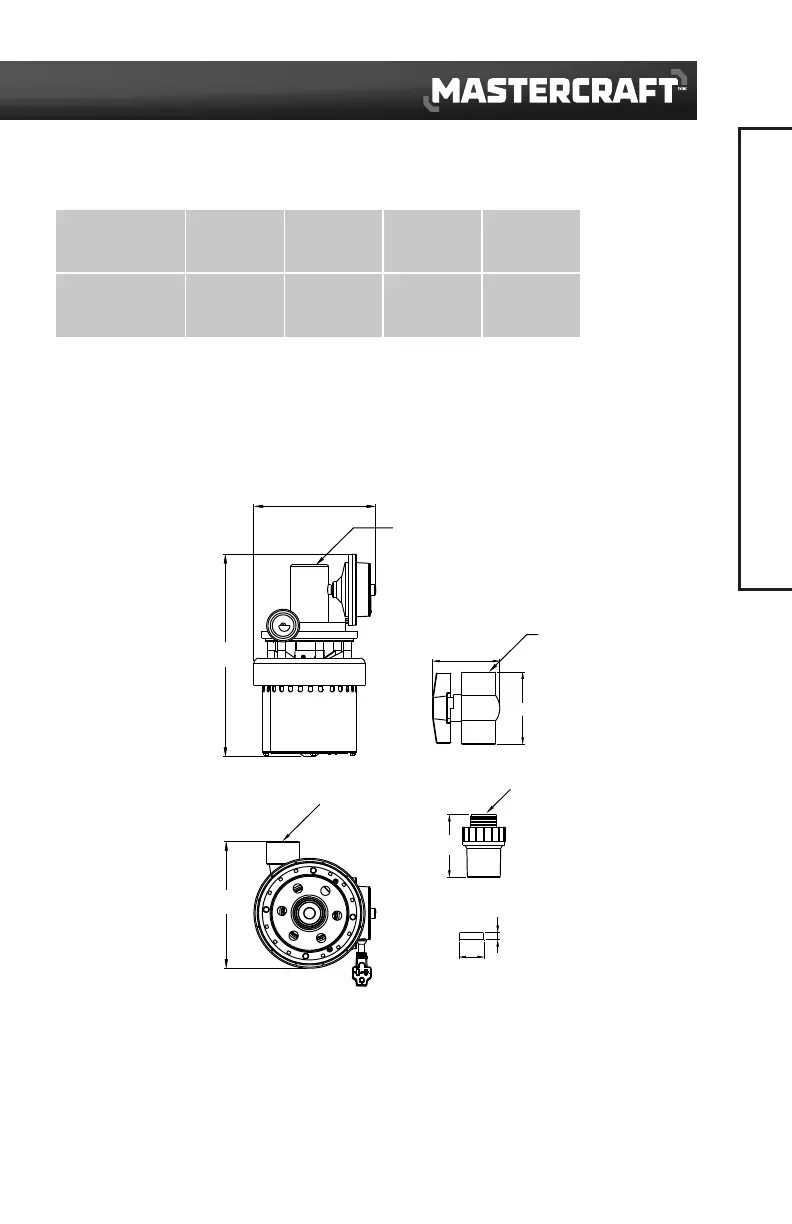

DIMENSIONS
PERFORMANCE CHART
*Friction loss in piping not included in measurement.
7 9/32" (18.5 cm)
1 1/2" (3.8 cm) NPT
1 1/4" (3.2 cm) NPT
1 1/4" (3.2 cm) NPT
1 1/4" (3.2 cm) NPT
12 13/64" (30.99 cm)
4" (10.16 cm)
4 13/32" (11.18 cm)
1 1/2" (3.81 cm)
29/64" (1.14 cm)
3 51/64" (9.65 cm)
7 21/32" (19.43 cm)
