TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Liquid temperature range 32 to 77°F (0 to 25°C)
Impeller Plastic
Solids handling 1/4” (6.3 mm) spherical
Discharge size 1 1/2” (3.8 cm) female national pipe thread (FNPT) or
1 1/4” (3.2 cm) FNPT (with adaptor)
Seal Lip seal
Cord length 10’ (3 m)
Upper bearing Ball bearing
Lower bearing Ball bearing
Single phase Permanent split capacitor (PSC)
Motor protection Auto-reset thermal overload protection in motor
Construction material Aluminum alloy for motor house; plastic for volute and
impeller
Motor NEMA L, torque curve, oil-filled, squirrel cage induction,
class B insulation
Maximum flow 3450 U.S. GPH (13,060 L/hr)
Maximum head height 26’ (7.9 m)
Lift in feet/
metres
0’
(0 m)
5’
(1.5 m)
10’
(3 m)
15’
(4.6 m)
20’
(6.1 m)
25’
(7.6 m)
U.S. gallons/
litres per hour
3450
(13,060)
3200
(12,113)
2800
(10,599)
2100
(7,949)
1500
(5,678)
200
(757)

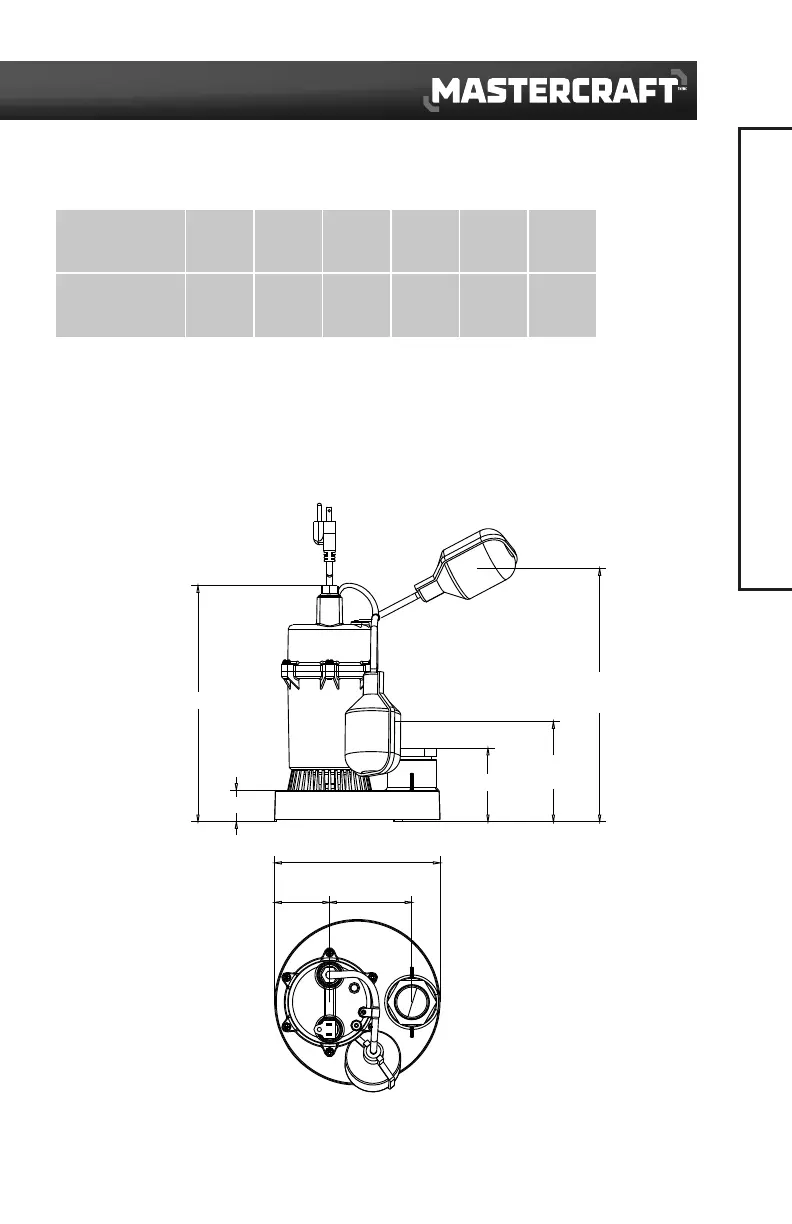

DIMENSIONS
PERFORMANCE CHART
*Friction loss in piping not included in measurement.
11 1/16" (28.1 cm)
3 7/16" (8.8 cm)
5 15/16" (15 cm)
OFF LEVEL
ON LEVEL
14 3/16" (36.1 cm)
3 7/8" (9.8 cm)
7 3/4" (19.7 cm)
2 5/8" (6.6 cm)
1 1/2" (3.8 cm)
