TECHNICAL SPECIFICATIONS

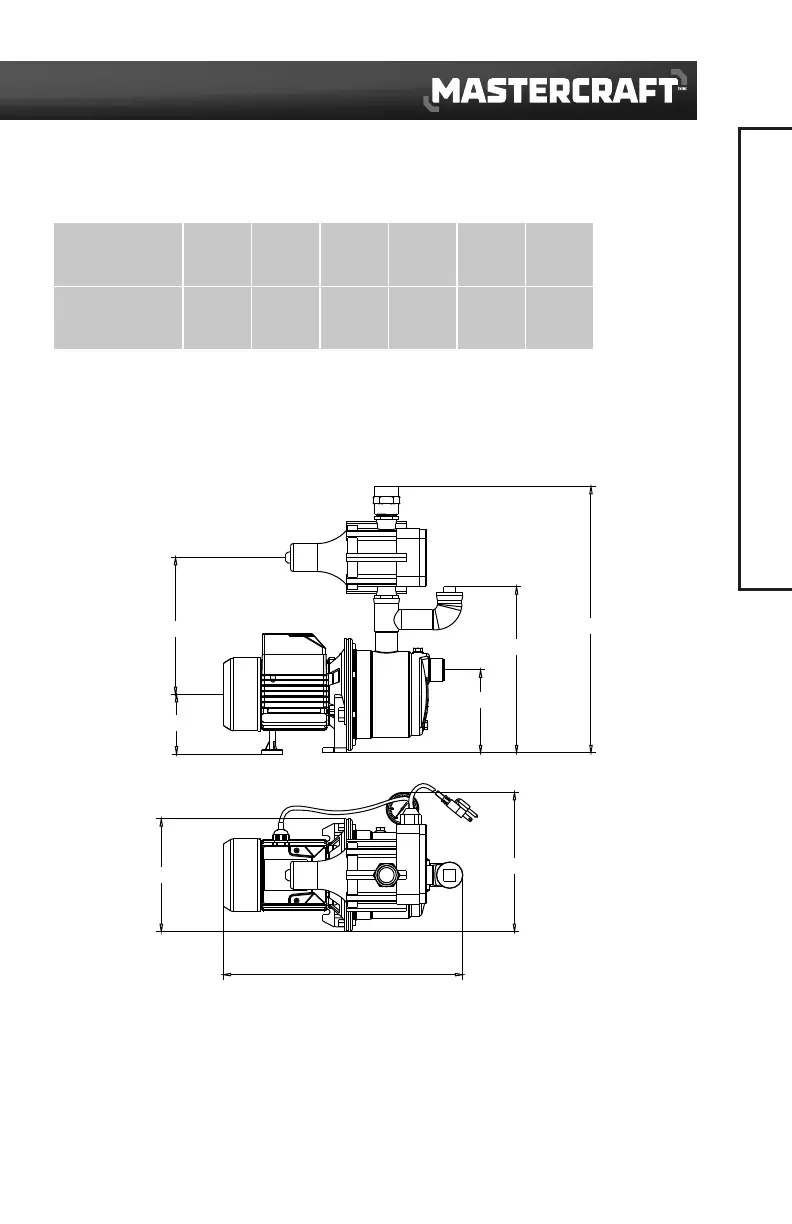

DIMENSIONS
PERFORMANCE CHART
TECHNICAL SPECIFICATIONS
Temperature 32 to 77ºF (0 to 25ºC)
Impeller Plastic
Solids handling 0” (0 mm) spherical
Discharge /suction size 1” (2.5 cm) national pipe thread (NPT)
Seal Mechanical seal
Upper bearing Ball bearing
Lower bearing Ball bearing
Single phase Permanent split capacitor (PSC)
Motor protection Auto-reset thermal overload protection in motor
Construction material Aluminum alloy for motor house: plastic for diffuser and
impeller; stainless steel for pump body
Motor NEMA L, torque curve, squirrel cage induction,
class B insulation
Lift height 0’
(0 m)
5’
(1.5 m)
10’
(3 m)
15’
(4.6 m)
20’
(6 m)
25’
(7.6 m)
Gallons per hour
Litres per hour
600
(2271)
564
(2135)
528
(1999)
480
(1817)
408
(1544)
324
(1226)
17 1/16" (43.4 cm)
10 11/16" (27.1 cm)
15 3/8" (39.1 cm)
7 1/4" (18.4 cm)
8 15/16" (22.7 cm)
5 5/16" (13.5 cm)
8 13/16" (22.4 cm)
3 13/16" (9.7 cm)
All performances shown at 30 PSI discharge pressure.
