OPERATING INSTRUCTIONS
CHIP SHIELDS (fig 5)
For fixed base:
1. To attach, place the chip shield in position and flex
the sides while pushing the shield in until it snaps
into place (fig 5a).
2. To remove the chip shield from the fixed base, press
inward on the tabs until the chip shield releases from
the base, and then remove the chip shield.
For plunge base:
1. Insert the chip shield into the screw on the plunge
base (fig 5b).
2. Slide the chip shield to the right side to lock it.
3. To remove the chip shield, just slide it to the left side
and then remove it from the plunge base.
DUST-EXTRACTION ADAPTOR FOR THE
FIXED BASE ( fig 6 )
To attach the dust-extraction adaptor onto the fixed
base, align the two raised ribs on the dust-extraction
adaptor with the slots on the vacuum port, and then
insert the dust-extraction adaptor into the vacuum
port on the back of the fixed base. Rotate the
adaptor until it is secured on the base.
A 1 1/4”(3.2 cm) vacuum hose can be connected
directly to the dust-extraction adaptor.
DUST-EXTRACTION ADAPTOR FOR THE
PLUNGE BASE (fig 7)
To attach the dust-extraction adaptor onto the
plunge base, position and secure it to the back of the
base with the two screws included.
A 1 1/4” (3.2 cm) vacuum hose can be connected
directly to the dust-extraction adaptor.

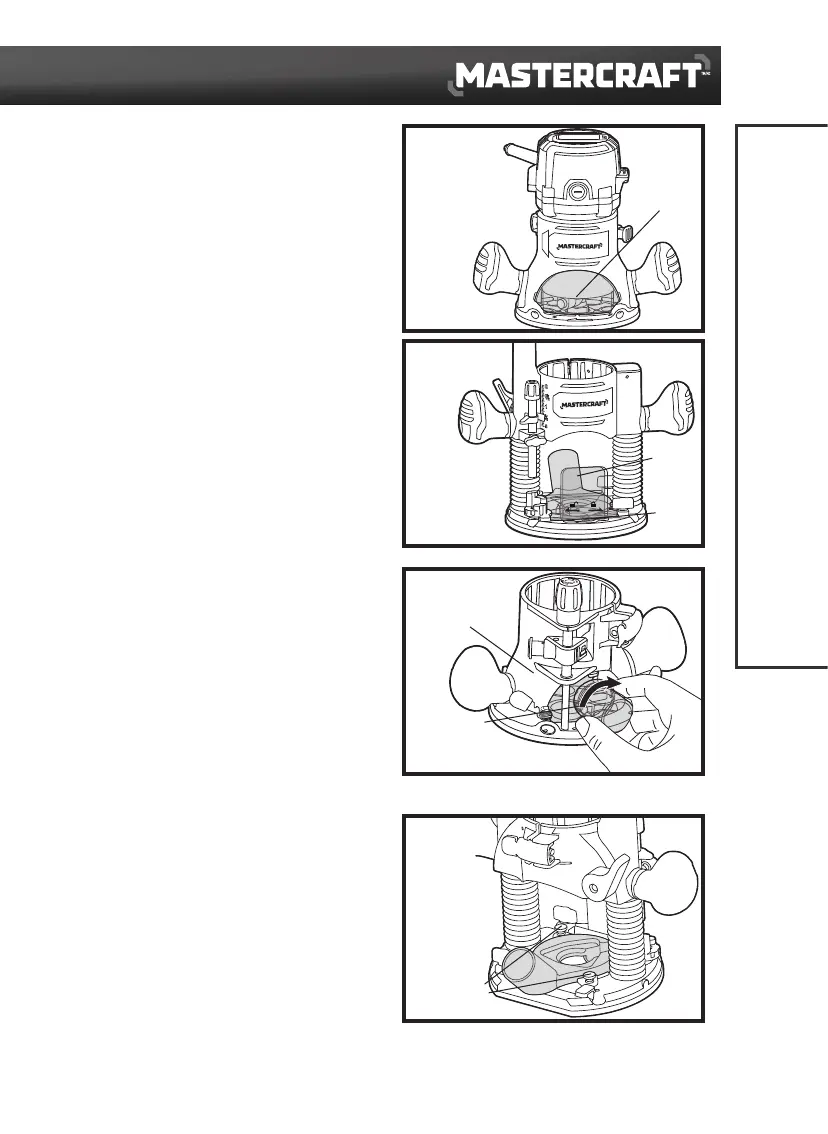

fig 5a
fig 5b
fig 6
fig 7
Chip shield
Chip
shield
Screw
Fixed base
Dust-
extraction
adaptor
Two screws
