15
OPERATING INSTRUCTIONS

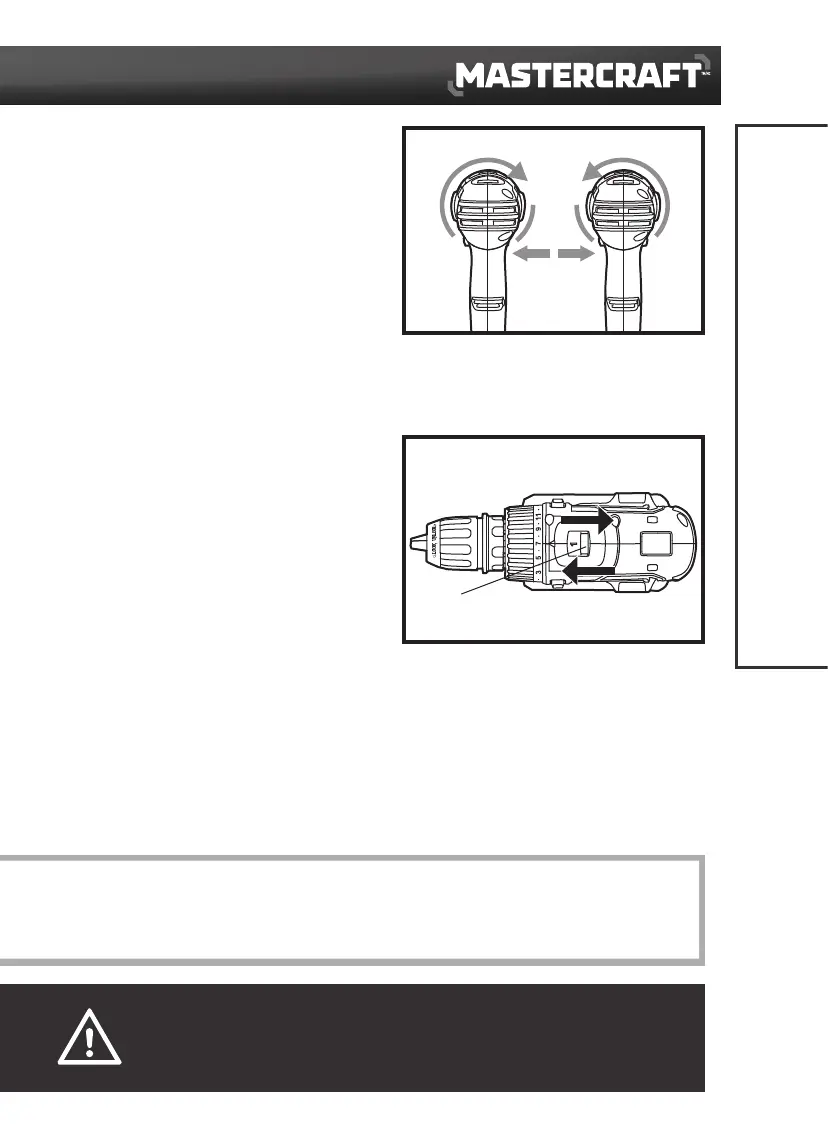

DIRECTION-OF-ROTATION SELECTOR
(FORWARD/CENTRE-LOCK/REVERSE)
(fig 7)
The direction of rotation of the bit is reversible and is
controlled with a selector located above the variable-
speed trigger switch. With the cordless drill/driver
held in normal operating position:
Position the direction-of-rotation selector to the left
of the tool for forward rotation.
Position the direction-of-rotation selector to the right
of the tool for reverse rotation.
Position the direction-of-rotation selector in the centre to lock the tool off.
TWO-SPEED GEAR BOX (fig 8)
This cordless drill/driver features a two-speed
gearbox that is designed for drilling or driving at
speed “1” (low speed range) or at speed “2” (high
speed range). A slide switch is located on the top of
the cordless drill/driver to select either low or high
speed.
When using the cordless drill/driver in the low speed
range, the speed will decrease and the cordless drill/
driver will have more power and torque.
When using the cordless drill/driver in the high speed range, the speed will increase and the cordless
drill/driver will have less power and torque.
Use low speed for high power and torque applications, and use high speed for fast drilling applications.
fig 7
Forward Reverse
NOTICE:
• To prevent gear damage, always allow the cordless drill/driver to come to a complete stop before changing the direction of
rotation.
• The cordless drill/driver will not run unless the direction-of-rotation selector is engaged fully to the left or right.
CAUTION!
• Do not change between low speed and high speed while the tool is running. Failure to obey this caution
could result in serious damage to the cordless drill/driver.
FPO
fig 8
Slide switch
Low speed
High speed
