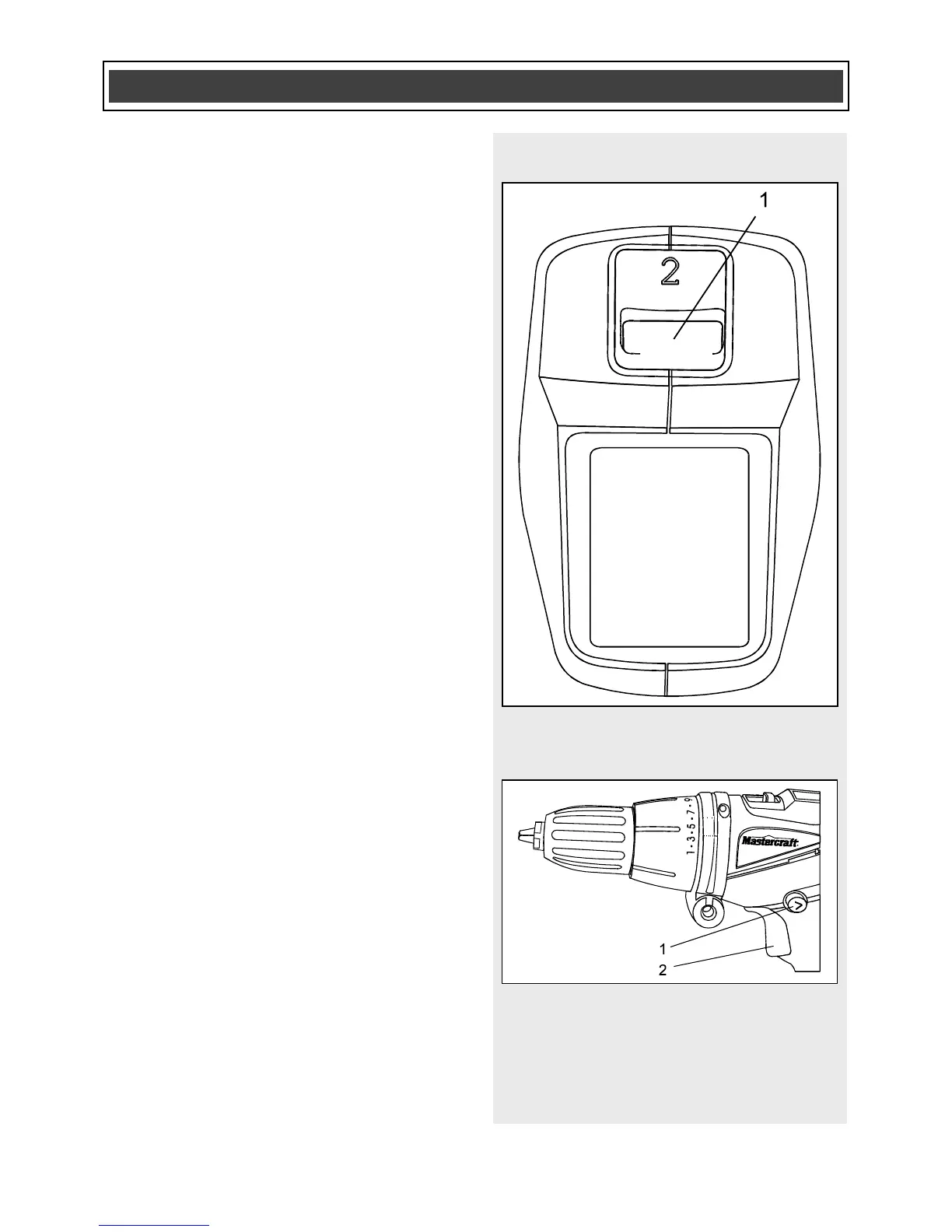

TWO-SPEED GEAR BOX SWITCH
Set the speed-control switch (1) to the
desired speed (Fig. 9). Slide the speed
control-switch FORWARD for low-speed
operation. Slide the speed-control switch
BACK for high-speed operation.
NOTES:
a) Use low-speed setting for drilling large
holes and for driving screws.
b) Use high-speed setting for drilling
smaller holes.
c) Do NOT change the speed-control
switch position while drill is turned ON.
Damage to the gears may result.
FORWARD/REVERSE SWITCH
The forward/reverse switch (1) is
conveniently mounted above the trigger
switch (2) (Fig. 10). To make the drill rotate
clockwise for drilling or driving screws,
push the forward/reverse switch to the left.
To make the drill rotate counter-clockwise
for removing screws, push the
forward/reverse switch to the right.
NOTES:
a) The auxiliary handle has been removed
for illustrative purposes.
b) Never change the position of the
forward/reverse switch while chuck is
turning.
c) The trigger switch will NOT function with
the forward/reverse switch in the middle
position.
ASSEMBLY AND OPERATING
Fig. 9
Fig. 10
