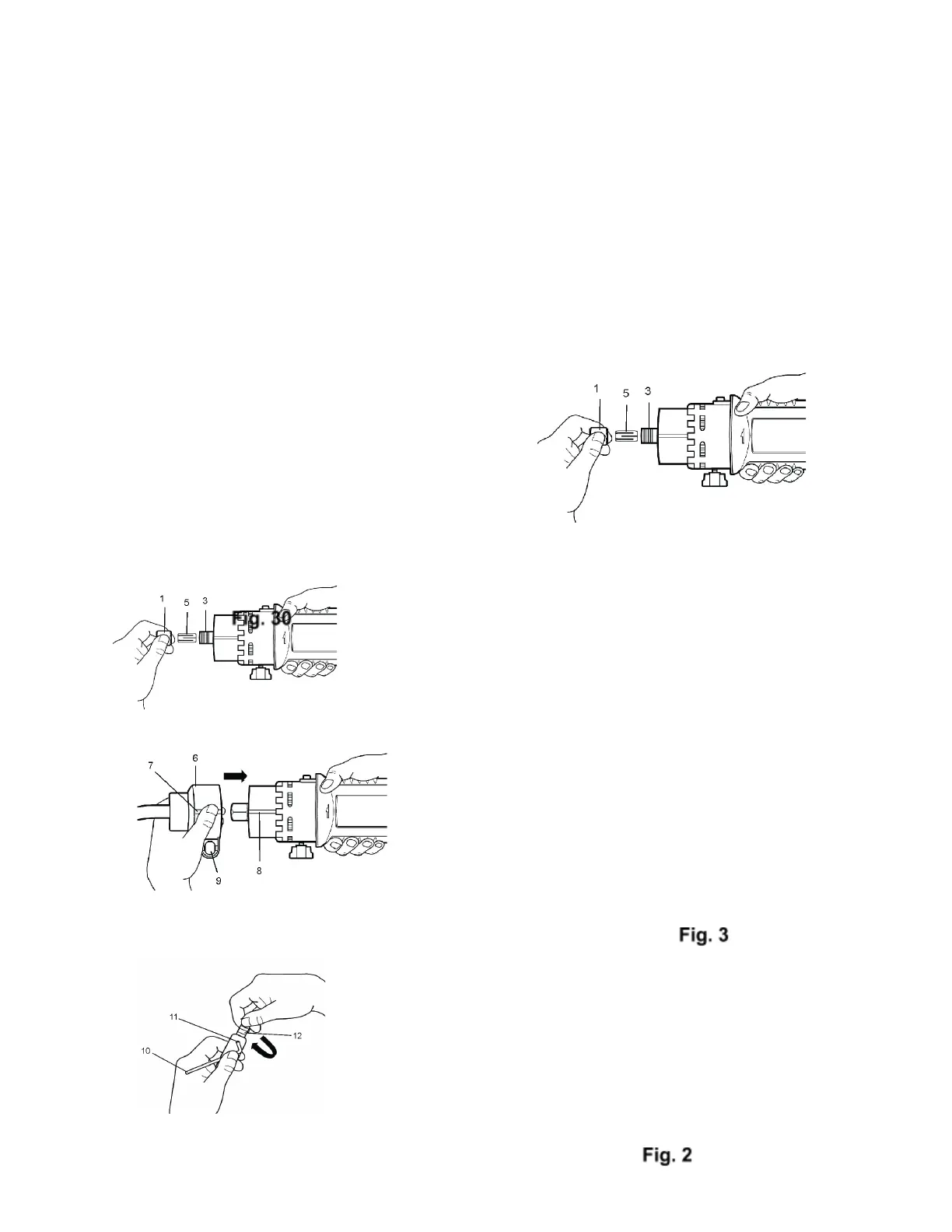

4. Insert collet with square hole (5) into main shaft (3)
and re-install the collet nut onto the main shaft (see
Fig. 30).
NOTE: Collet with square hole is packed with the flex
shaft package.
5. Use Spin Saw wrench to tighten the collet nut firmly
onto the main shaft while spindle lock is engaged into
the main shaft.
6. Align the flexible shaft connector cap (6) with the Spin
Saw motor housing (8) (see Fig. 31).
NOTES:
a) Carefully align the square flexible shaft centre core
so it will engage into the square hole in the collet.
b) Make sure the groove (7) in the connector cap
aligns with the matching key (8) on the motor housing.
7. When shaft centre core and connector cap are
properly aligned, slide the connector cap fully onto the
motor housing. Lock connector cap into place by
pressing on the quick-release lever (9).
8. To insert an accessory into the flexible shaft collet,
rotate collet nut (12) until hole in shaft aligns with hole
in flexible shaft collar (11) (see Fig. 32). Insert locking
pin (10) into aligned holes and use flat wrench to turn
collet nut counter clockwise.
9. When collet is loose, insert accessory and turn collet
clockwise to tighten, making sure the accessory is
centred in the collet. Use the flat wrench to tighten.
10. Remove locking pin and rotate the collet by hand to
ensure accessory does not wobble.
